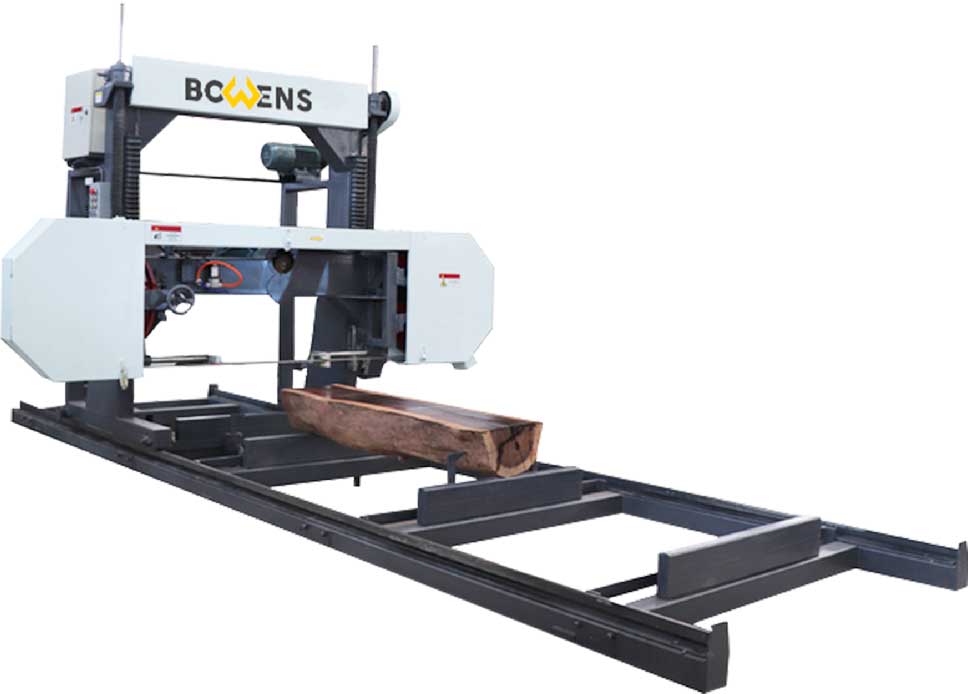

Portable Horizontal Band Sawmill Series (Electric Model)

MJ-700E | MJ-1000E | MJ-1300E | MJ-1600E

Portable Horizontal Band Sawmill Series (Electric Model)

Portable Horizontal Band Saw is a Patented Product. It is easy to install and operate, smooth finishing by Carbide Band Saw Blade. The cutting kerf is small, reduce the waste to high output. Suitable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest.

Standard Configuration Bowens Heavy Duty Hydraulic Horizontal Band Saw MJH1200E MJH1500E

Touch screen sizing
Variable frequency speed adjustable foward/backward

Hydraulic Wood Clamp X 2

Machine Structure Features

Hydraulic blade tension extend the working life of the blades

Center saw wheel design ensures saw wheel running stabilize and extend the working life of the saw wheel. Also reduce the probability of the blades break down.

The linear guide way and precision screw ensures smooth and accurate sizing

Wear-resisting saw wheel pass the dynamic balancing emendation ensures running smoothly

Specification of Portable Horizontal Band Sawmill Electric Model Series

MODEL	MJ700E	MJ1000E	MJ1300E	MJ1600E
Max. Sawing Wood Diameter	700 mm	1000 mm	1300 mm	1600 mm
Saw Wheel Diameter	600 mm	700 mm	700 mm	700 mm
Sawing Wood Thickness	2-250 mm	2-300 mm	2-300 mm	2-300 mm
Standard Sawing Wood Length	4500 mm	4500 mm	4500 mm	4500 mm
Motor Power	15 kW	18.5 kW	22 kW	30 kW
Machine Length	5800 mm	5800 mm	5800 mm	5800 mm
Weight	1100 kg	1100 kg	1300 kg	1500 kg
