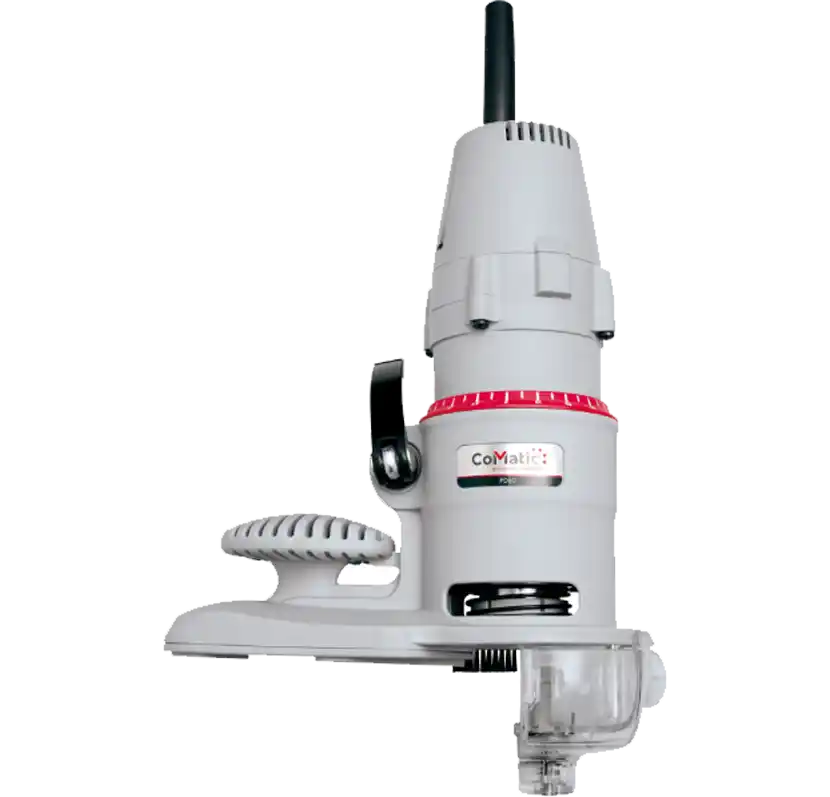

PD80
Edgeband Trimmer
Standard with router bit and cruiser case
Output power : 450 W, 1 Phase, 100 – 120 V or 220 – 240 V
No load speed : 30000 rpm
Net weight : 2.3 kg
Gross weight : 4.3 kg
Packing sizes : 350 x 250 x 180 mm

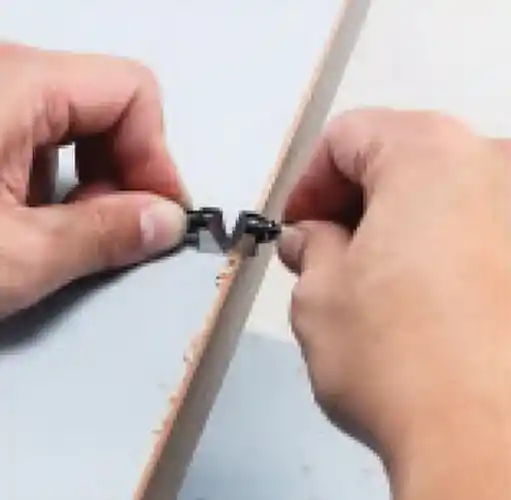

- PVC, wooded band edge trimming.

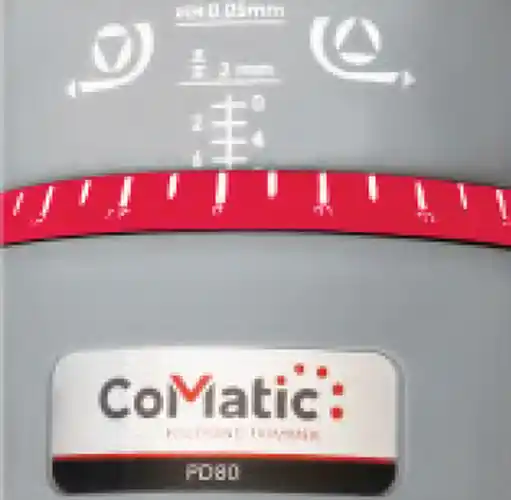

- Unique design for micro adjust scale with 0.05 mm.

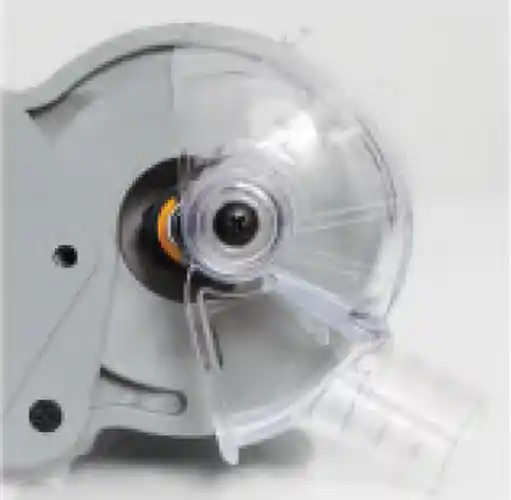

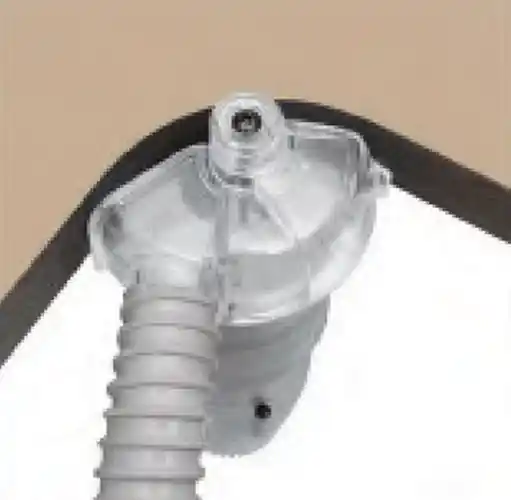

- Superior dust collection telescopic vacuum cover.
- Minimum inner radius : 25 mm

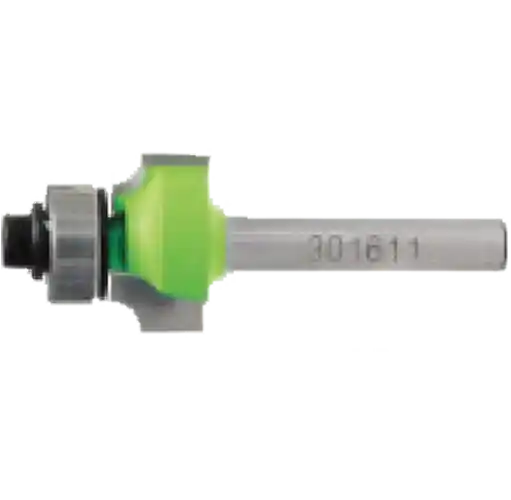

Metric System ⌀ 6 mm (other than USA)
M00

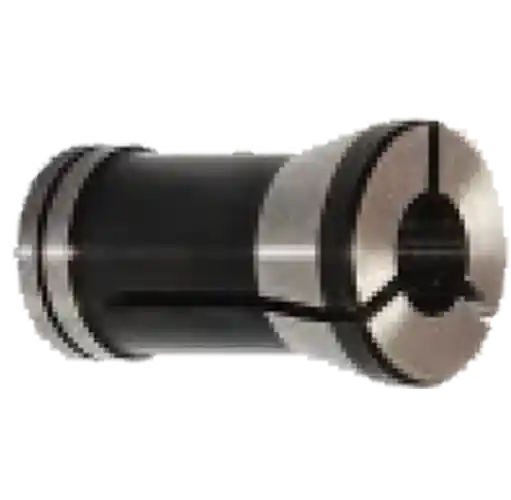

High Precision Collet
Flex Collet
M05
Router Bit, R 2 mm
Standard
M01
Router Bit, R 3 mm
Optional

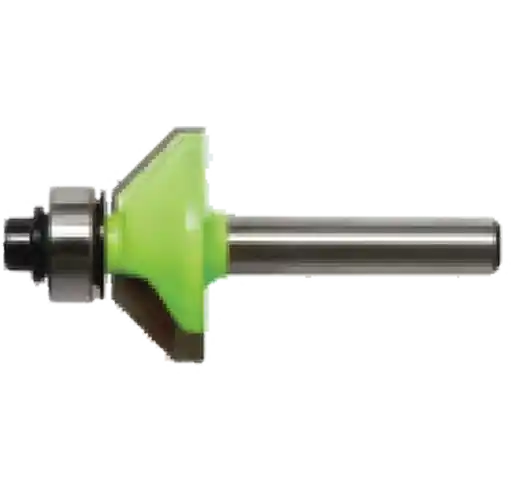

M03
Chamfer Bit, 45°
Optional
Imperial System ⌀ ¼ mm (for USA)
M10

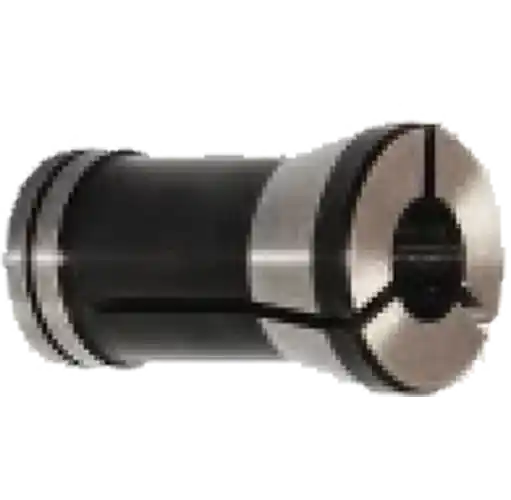

High Precision Collet
Flex Collet

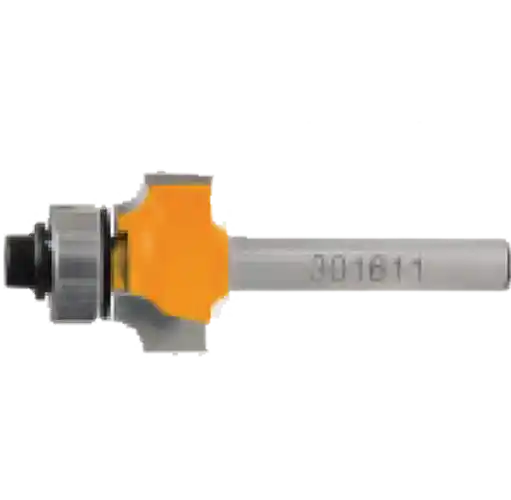

M15

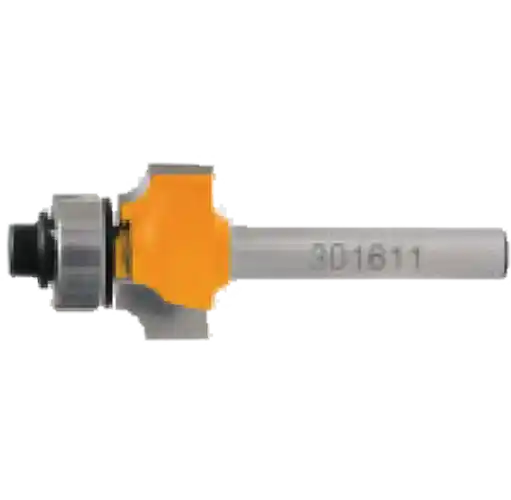

Router Bit, R 5/64″
Standard
M11
Router Bit, R ⅛”
Optional
M13

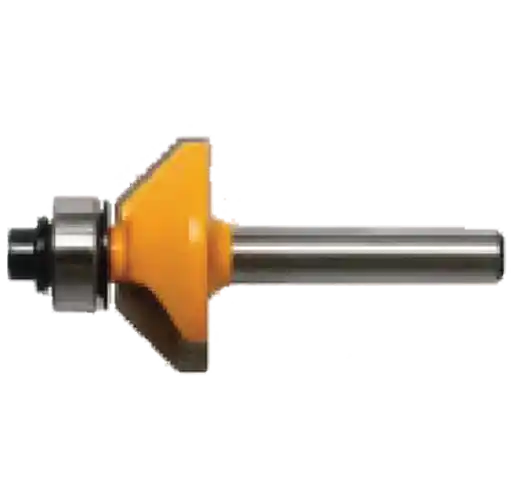

Chamfer Bit, 45°
Optional

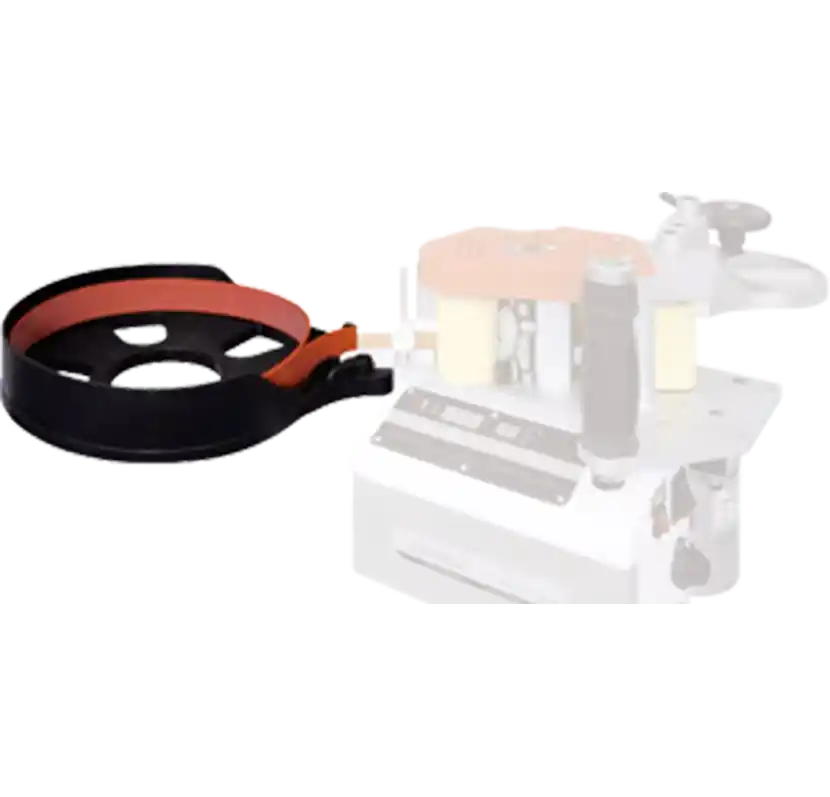

BC25
Mobile Dispenser
- Prevent possible damage to hanging long edging.
- Easy clip on design and could hold up edge band from height 10 – 62 mm, thickness 0.4 – 3.0 mm.

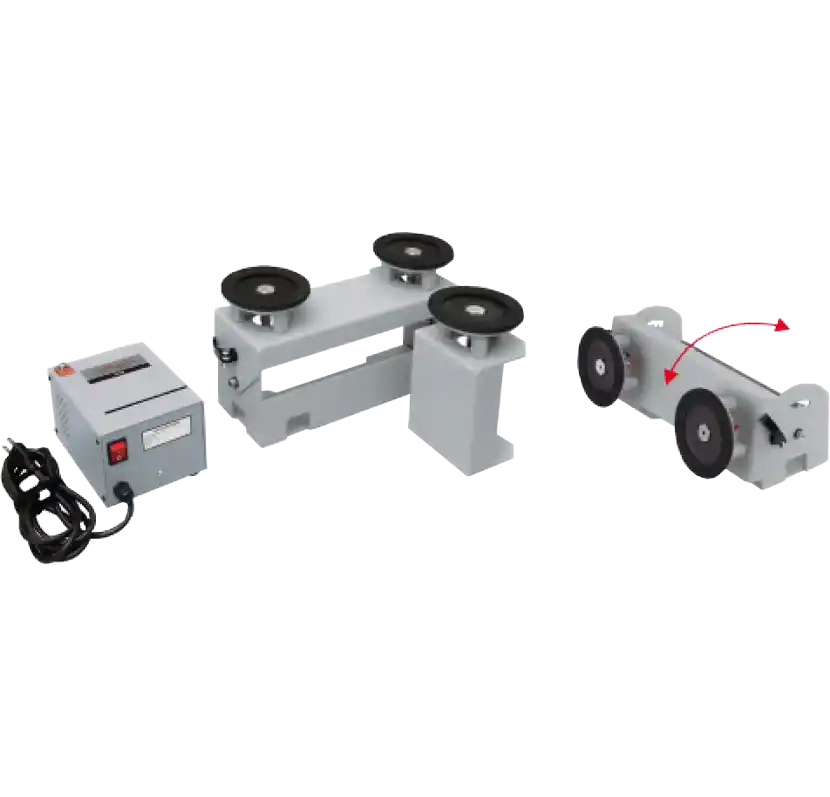

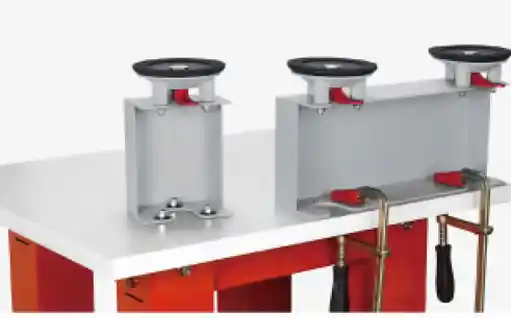

VP03
Electric Clamping Kit
(Standard with Cruiser Case)
- Powerful vacuum pump suitable for different services.
- Power outage prevention design
- Horizontal and vertical clamping -30° – 90°

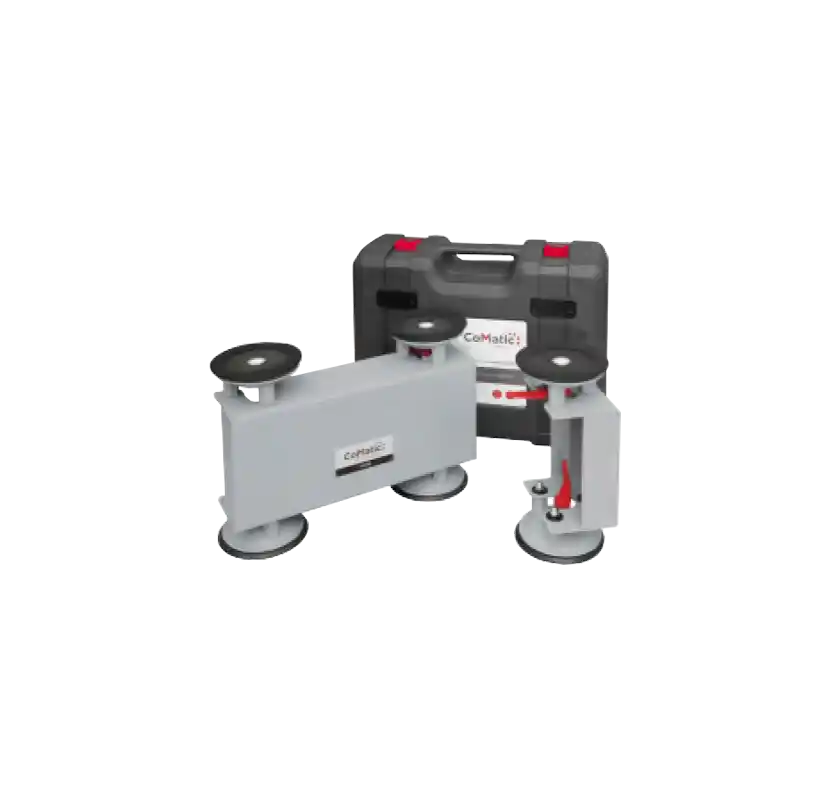

VH03N
Vacuum Clamp Set
(Standard with Cruiser Case)
- The clamps will instantly detach when pressure released from the handle.
- Easy installation onto edgebander and edgeband trimmer cruiser case.
- Ensures fast and secure tightening and a strong grip of large panels for edge banding, avoiding scratches and damages on the panel surface.
- When the working table can not be attached via vacuum clamp, a vacuum kit can be secured to the edge of the working table using c-clamps or screws.

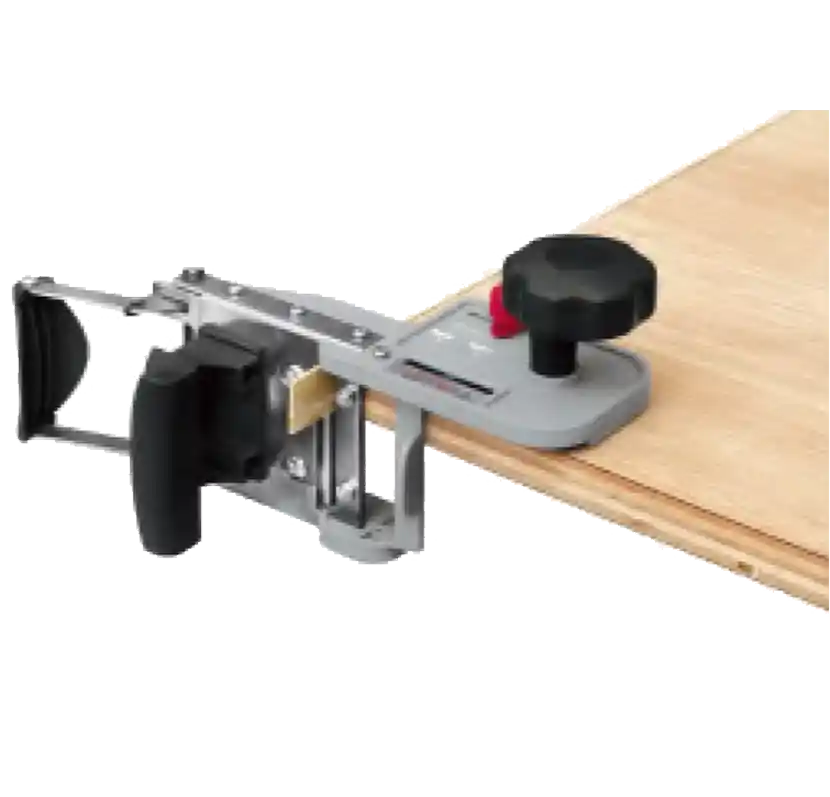

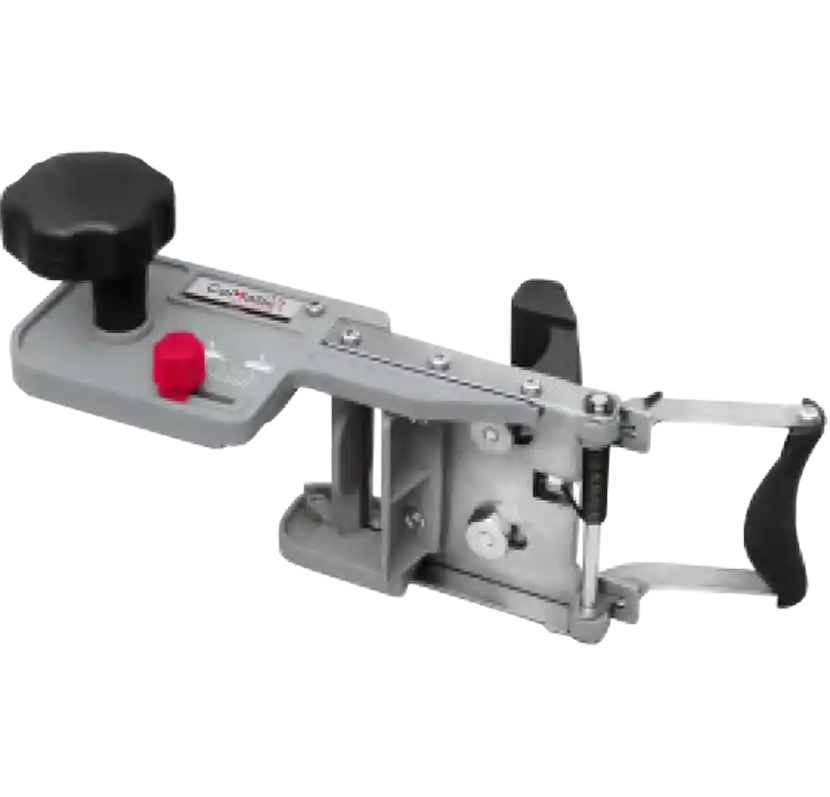

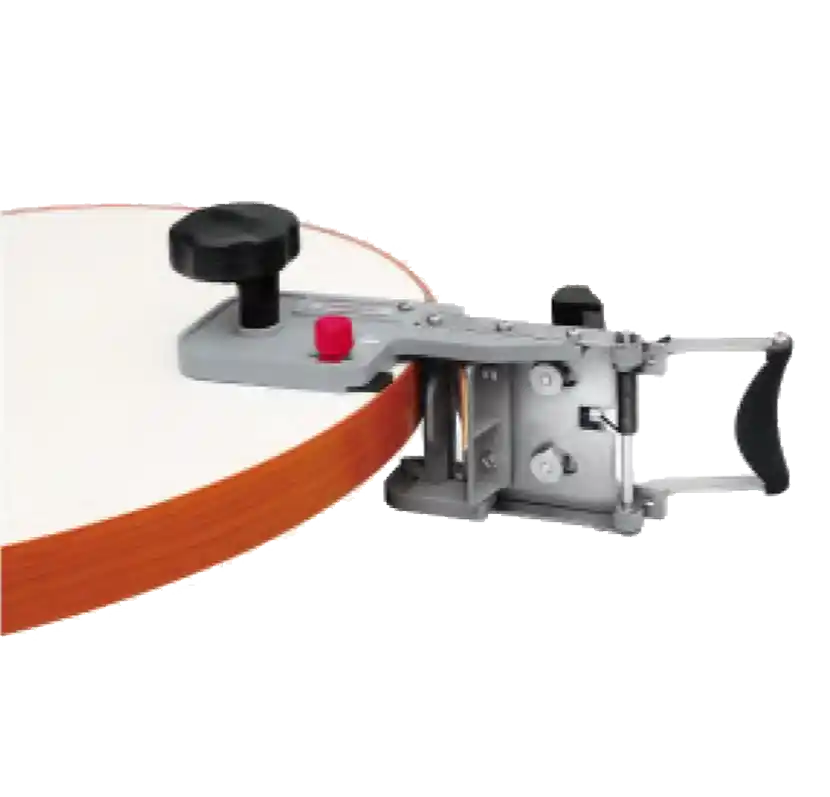

TK65
Dual End Cutter
- A unique two point support design ensures perfectly connected and aligned cuts.
- Ergonomic design handle bar.
- Adjustable cutting line compensation design ensures precise end to end cuts.
- The frame maybe opened to measure perpendicular and uniform end cuts.

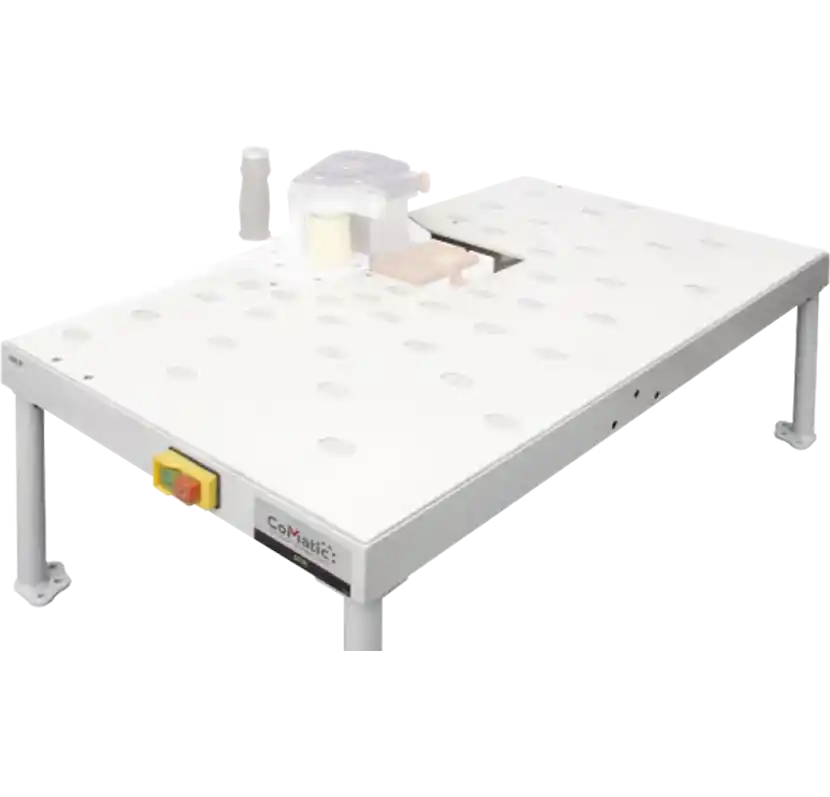

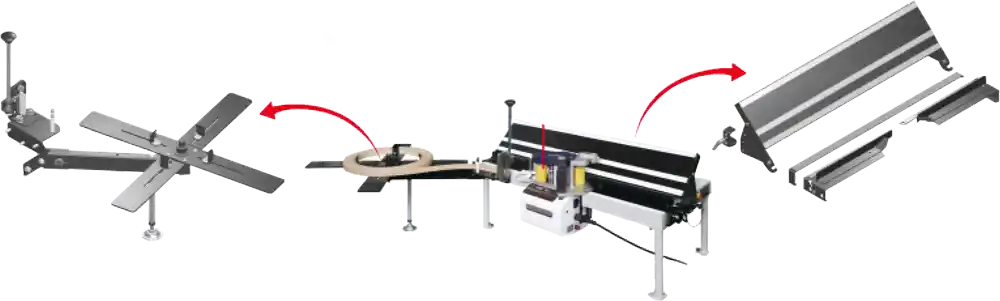

ST95
Stationary Worktable
- Edgebanders and edgeband trimmer installed onto the stationary worktable ensure accurate application on small, thin, or curved workpieces not suitable for use with vacuum clamp.
- An embedded outlet and magnetic switch provides a convenient on/off functionality on the edgebander or edgeband trimmer during operation.

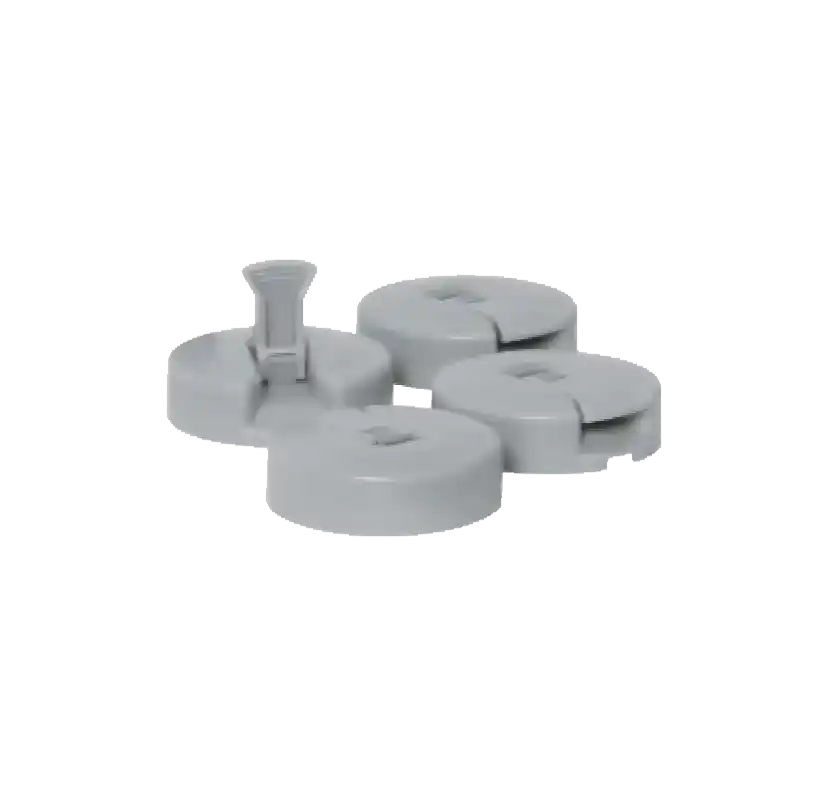

VH11
Vacuum Handles
(Optional)

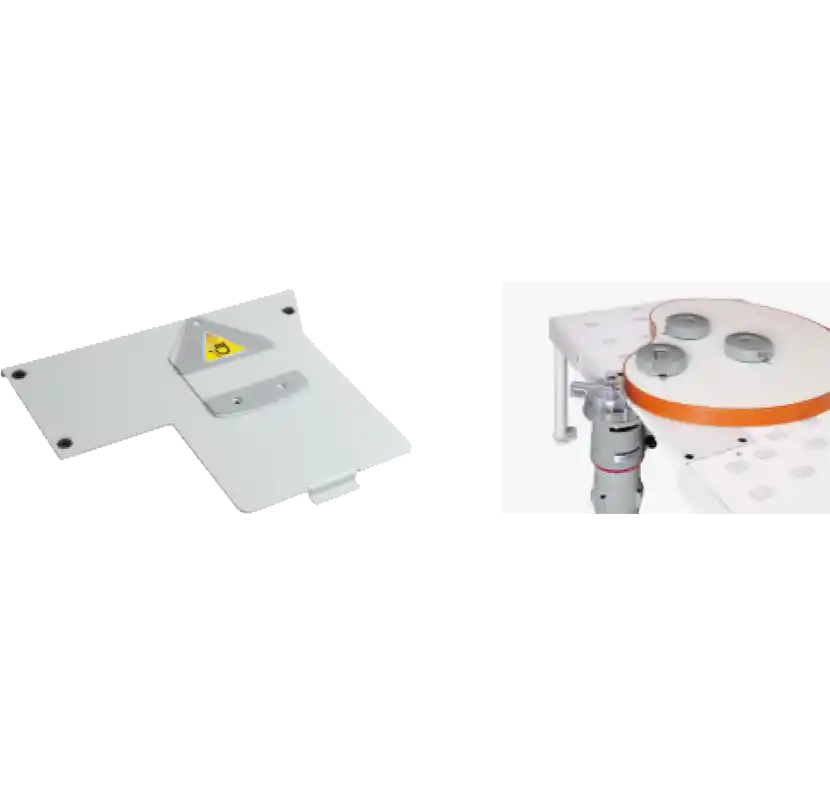

ST15
Trimmer Adaptor Plate
(Optional)

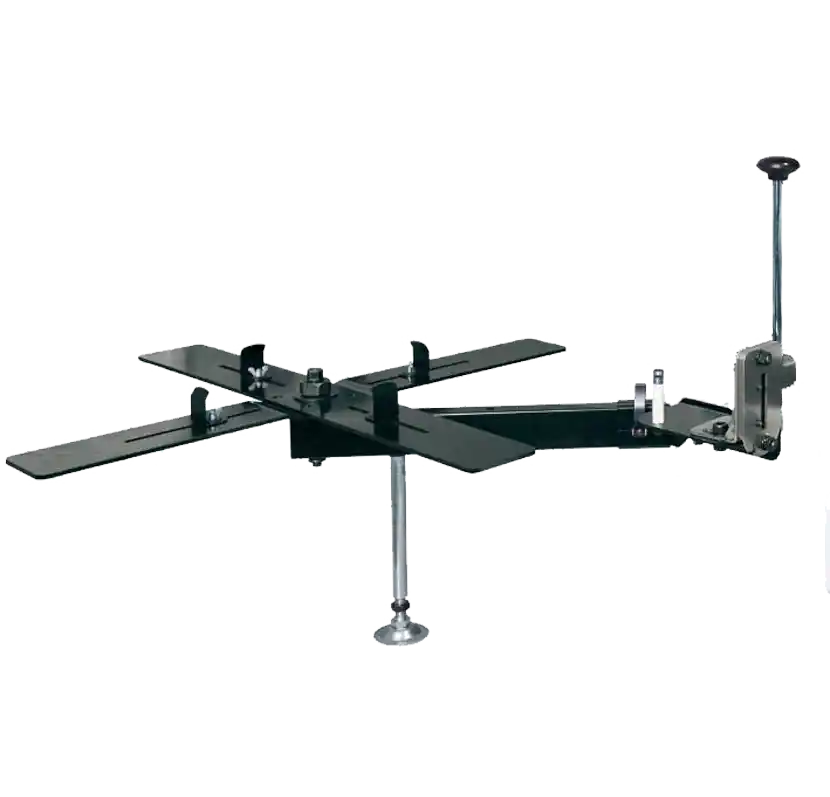

BC90
Tape Dispenser
- Suitable for all tape sizes and instant cut with guillotine cutter.
- Anti-slip off mechanism prevents tape release after cut.
ST45
Bevel Edgebanding Supporter
Maximum width for inclined edgebanding:
- 90° edgebanding : 60 mm
- 75° edgebanding : 58 mm
- 60° edgebanding : 52 mm
- 45° edgebanding : 42 mm

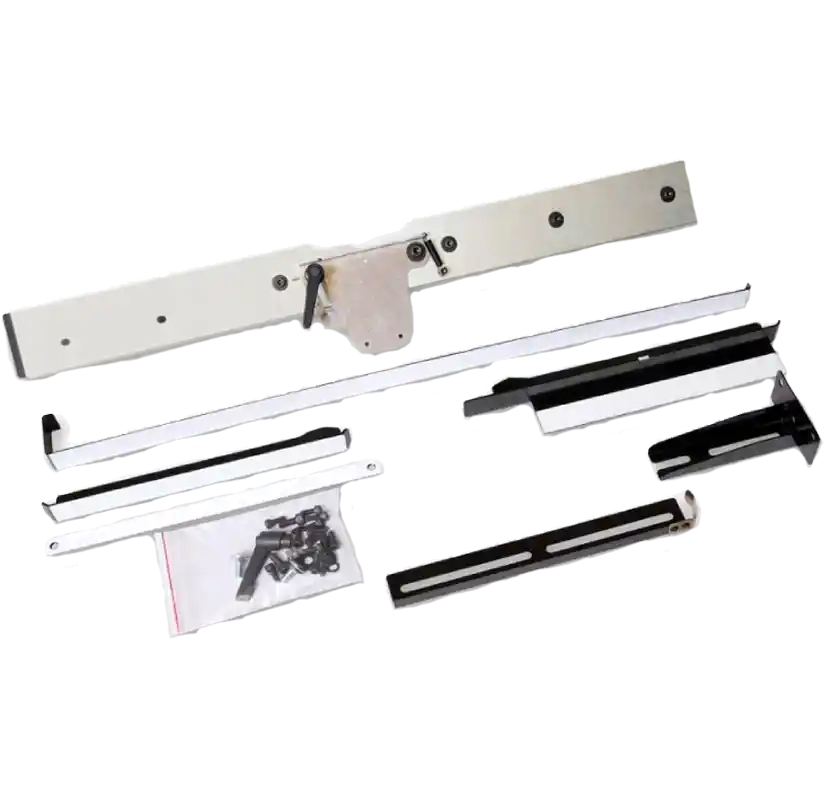

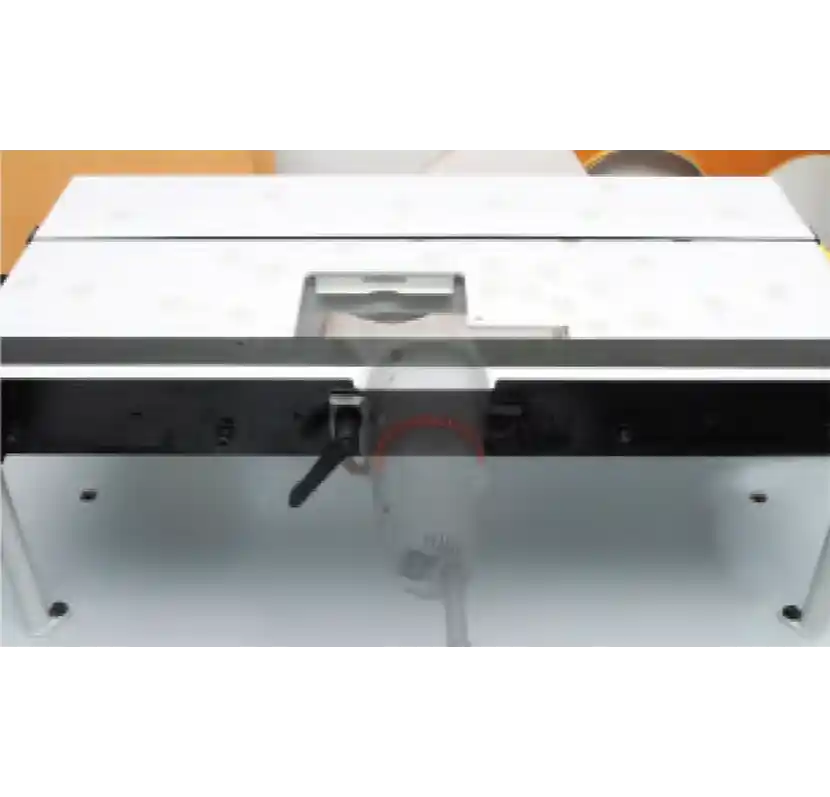

ST97
Guide Component Kit
-
Assists with keeping workpiece on level plane while straightline edgebanding or trimming.
Floating adjustment device to enhance more precise straightline trimming.
