Bowens PM-16025-8 CNC Wood Engraving Machine

PM16025-8 CNC Wood Engraving Machine

  1. high-precision, stable performance of the absolute value servo is adopted. Equipped Richauto A11 3 axis operating system, stable performance, multi-function, and easy to operate.
  2. heavy-duty steel structure with high manufacturing precision and stable performance
  3. 2.2 kW high-speed spindle, water-cooled, speed can up to 24000rpm, and the cutting speed is high
  4. The max. speed of the X-axis and Y-axis can reach 20m/min, high working efficiency
  5. Equipped with a central lubrication system  to automatically lubricate critical moving parts;
Function

It can realize multi-function machining such as end milling, engraving, edge line and punching. Applicable to all furnitures like European and American style, simple European, modern style, light luxury style, new Chinese solid wood furniture. It can process dining tables and chairs, and special-shaped accessories on solid wood furniture.

Product Display

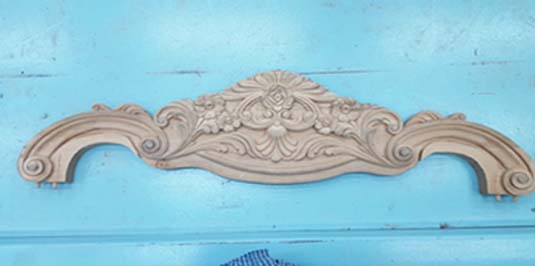

Product Display 1 Bowens PM-16025-8 CNC Wood Engraving Machine

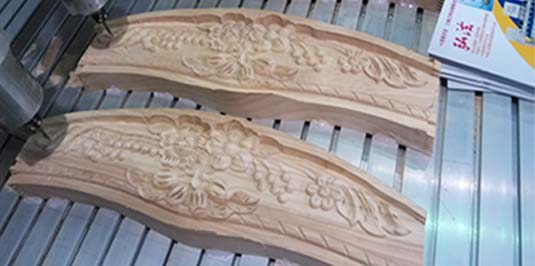

Product Display 2 Bowens PM-16025-8 CNC Wood Engraving Machine

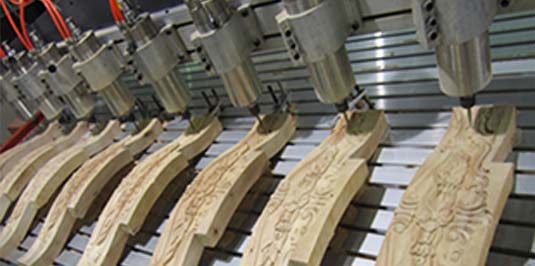

Product Display 3 Bowens PM-16025-8 CNC Wood Engraving Machine

Machine Description

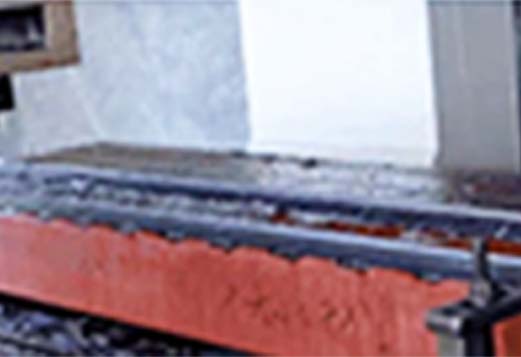

Machine Description Machine Structure Processing Bowens PM-16025-8 CNC Wood Engraving Machine
Machine Structure Processing
  • The processing is carried out by the “MITSUBISHI” CNC. It is one-time processing and forming. THe whole machine body is welded at one time.
  • The metal heat treatment method of high temperature tempering ensures the machine tool will never be deformed.

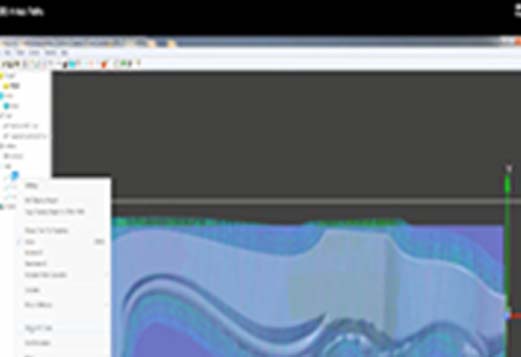

Machine Description Software Bowens PM-16025-8 CNC Wood Engraving Machine
Software

Compatible with various CAM programming software.
Machine Description Inspection and Calibration Bowens PM-16025-8 CNC Wood Engraving Machine
Inspection and Calibration

Modern high-tech quality testing equipment guarantees the quality of parts and machines.

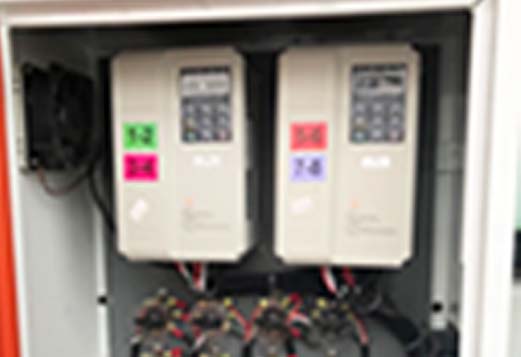

Machine Description Inverter Bowens PM-16025-8 CNC Wood Engraving Machine
Inverter
  • Standard with 4 pieces, 4.5 kW x 4, each spindle with independent switching power supply.
  • With protection of over-current, over-voltage and overload, energy saving.

Machine Description Transmission Bowens PM-16025-8 CNC Wood Engraving Machine
Transmission
  • Taiwan brand screw and guide rail, high precision and low wear, which is suitable for high-speed movement and greatly reduces the driving power required for the machine
  • XYZ axis each have two guide rails, more stable
  • Easy to assemble and interchangeable

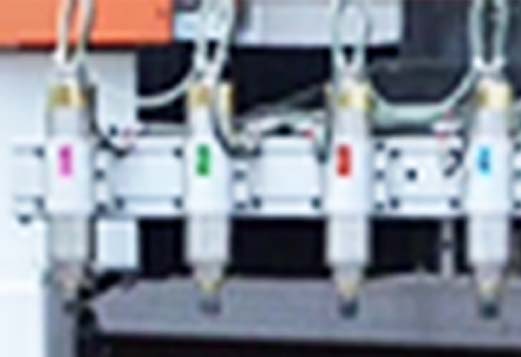

Machine Description Spindle Working Structure Bowens PM-16025-8 CNC Wood Engraving Machine
Spindle Working Structure

Aluminum hoop structure, can adjust the working size.


Machine Description Servo Drivers and Motor Bowens PM-16025-8 CNC Wood Engraving Machine
Servo Driver and Motor

Absolute value servo is adopted high-precision and stable

  • X-axis motor and driver
    Y-axis motor and driver
    Z-axis motor and driver with brake
Machine Description Control System Bowens PM-16025-8 CNC Wood Engraving Machine
Control System

Beijing Richauto A11 3 axis operating system, stable, multi-function and easy to operate.


MODELPM-16025-8
Working Sizex : 1600 mm
Y : 250 mm
Z : 300 mm
Working ModelAbsolute Value Servo
SpindlePower : 2.2kw
Qty : 8
Model : Water Cooling
Speed : 8000-24000 Rpm
Tool Clamp : Φ6 - Φ12.7 mm (Er20/Er20)
Tools Qty : 16
Repeated Position Precision0.05 mm
Max. Moving Speed 20 m/min
Max. Working Speed15 m/min
Total WeightAbout 2000 Kg
Outer Size2700 x 2200 x 2000 mm
Max. Loading Weight200 Kg
Power Supply3 Phase AC 380V ±15% 50 Hz
