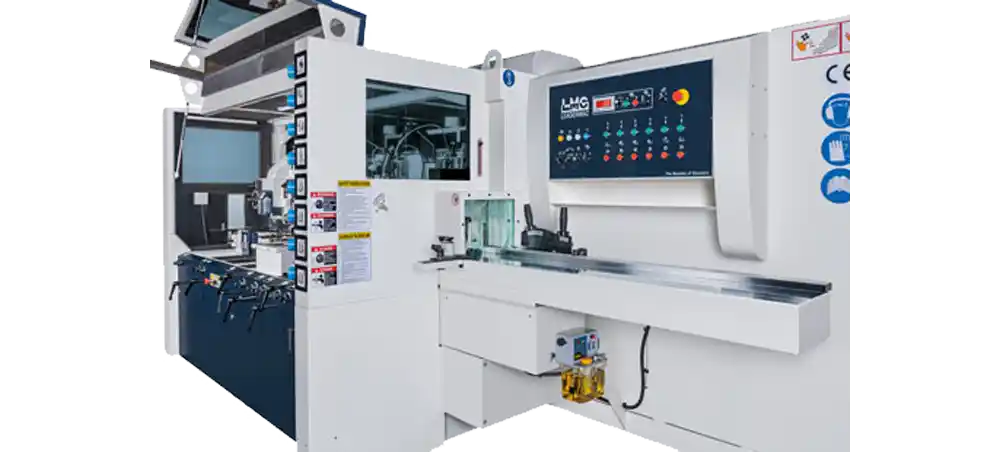

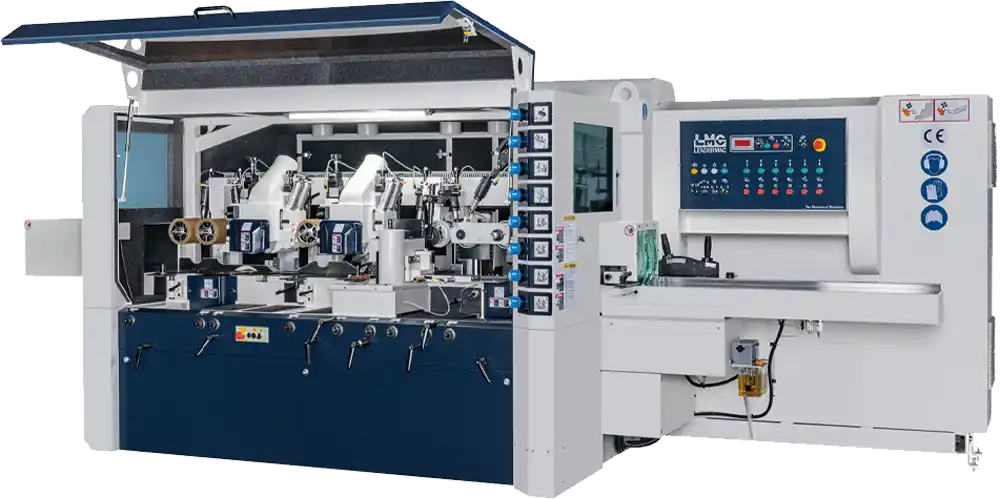

Platinum Series – 4-Side Moulder
Integrating Many Fine Features You’ve Come to Expect
Outstanding Features:
- 1-piece, cast iron machine frame is specially heat treated for maximum stability and rigidity as standard
- Table surfaces, hard hard-chrome plated for maximum wear resistance as standard
- Feed speed of up to 300 mpm (100 fpm) are standard with VFD drive
- More powered top & bottom feed rolls the most of our competition
- Each spindle is drive by an individual motor for powerful machining and easy control
- Adjustment of each spindle can be easily performed using the front adjustment controls
- The full safety enclosure serves as a chip guard and helps to reduce noise

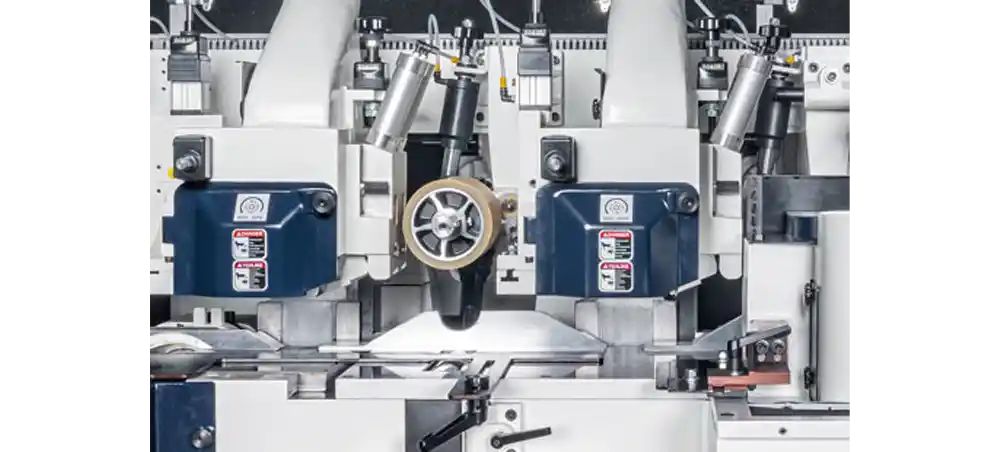

Extremely Short Feeding Capability
The cutting heads are specially designed so that there is a uniquely short distance between them. This results in a superior moulding finish.

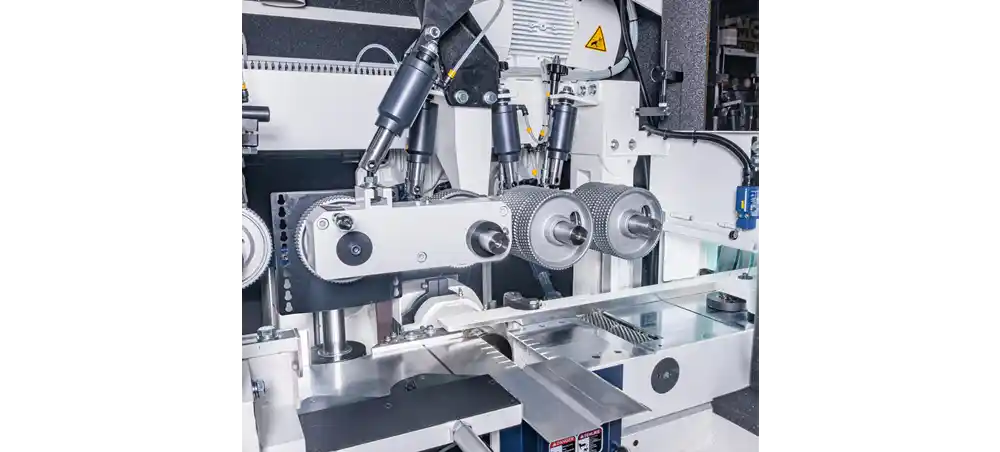

Feed Table
The entire cast iron – chromed infeed table is normalization heat treated for maximum stability. Infeed table adjustment is quickly accomplished by means of a quick-setting levers.

Powered Infeed Bottom Roller
Powered infeed bottom roller (actually more powered top & bottom feed rolls then almost all of our competition. The smooth initial feeding of the stock is achieved by means of the independently powered infeed rollers.

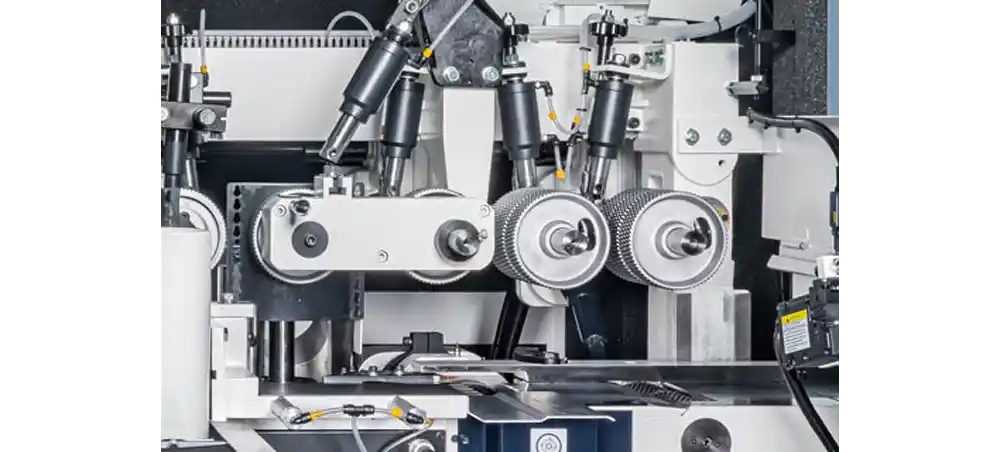

Liftable Auxiliary Feed Roller
The short stock powered feed mechanism provides added smoothness for short workpiece feeding. The auxiliary feed rollers are power driven for effortless feeding effect, and are quick-liftable for convenient cutterhead change or setup

Accurate Pressure Display
The position of the top head chip breakers & pressure plates are accurately displayed by digital counters. This increase cutting stability

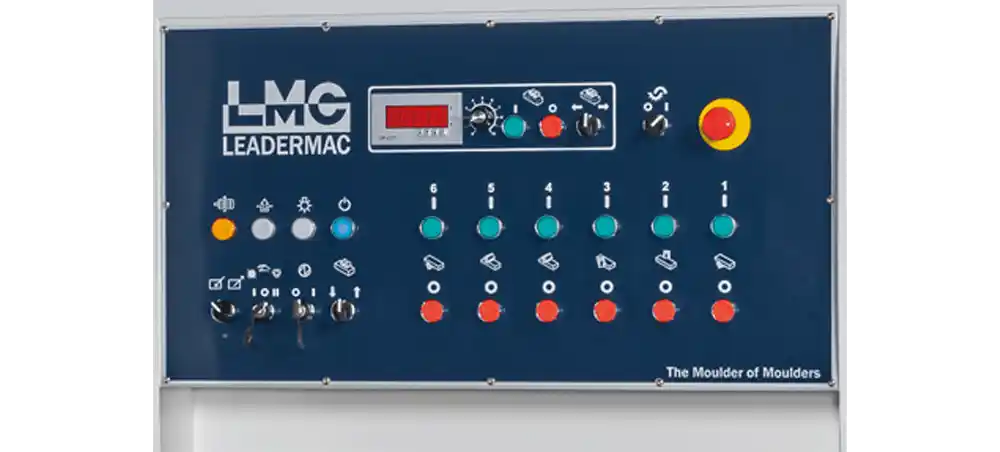

Controller
The speed is VFD inverter controlled, and all electrical components meet CE, UL & CSA standards

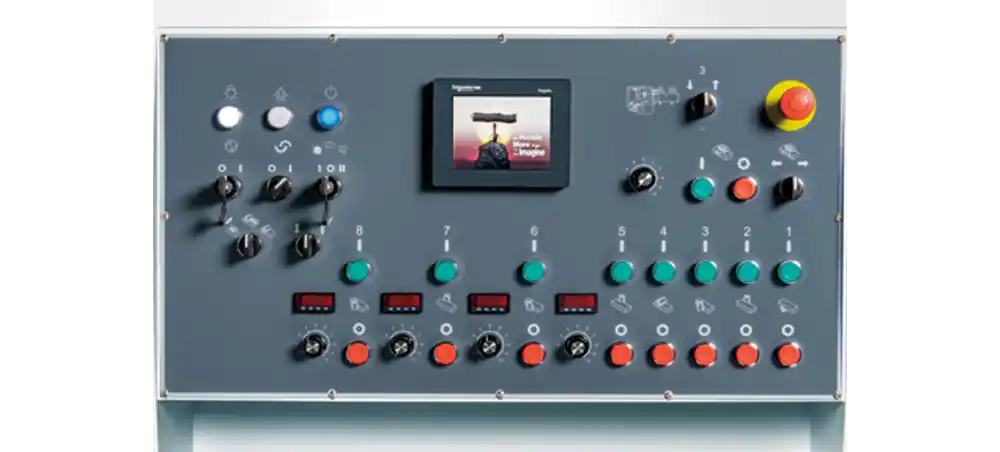

Easyset Controller (Optional)
Touch Screen Control
- 5.7″ HMI (memory 200 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Workpiece settings on left and top axes as desired
- The width and thickness setting can be easily set using the programmable controller
- The desired values for thickness are displayed on HMI

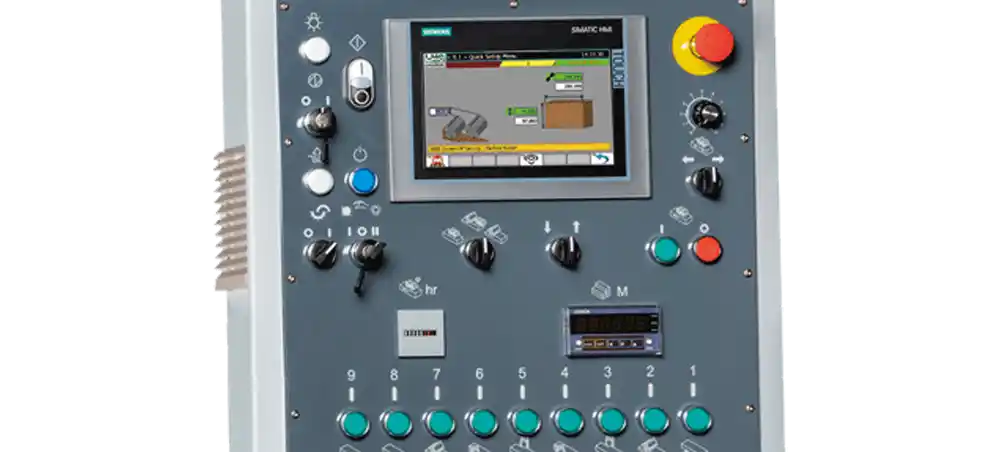

Smartset Controller (Optional)
Touch Screen Control
- 9″ HMI (memory 500 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Setworks on any axis as desired
- The motorized Axes: derived by inverter, transmitted by ball screw, feedback by encoder
- The desired values for radial and axial are displayed on HMI

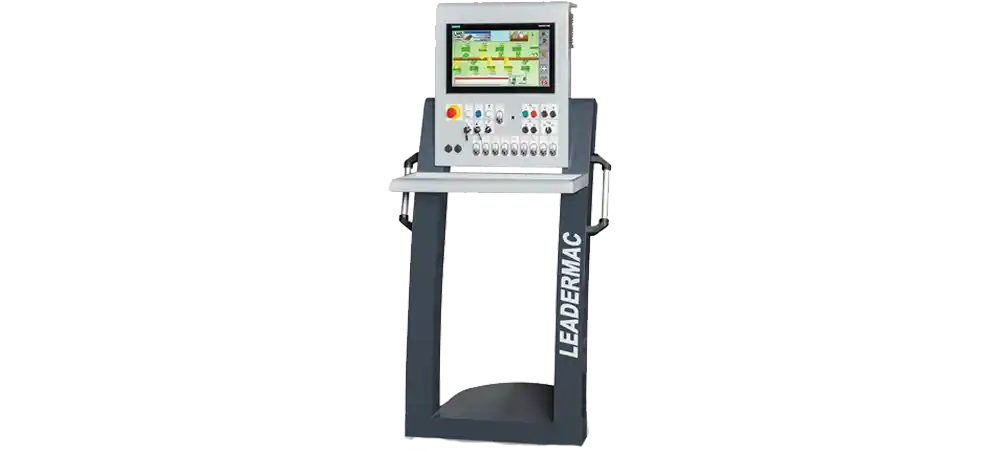

Proset Controller (Optional)
- 19″ panel PC
- Product library (1.000 sets)
- Knife library (10.000 sets)
- Automatic machine quick setup
- Easy and powerful functionality
- Workpiece settings on any axis as desired
- The width and thickness settings can be easily set using the programmable controller
- All axes are equipped with ballscrews and rotary encoders for feedback position control, providing high positioning accuraacy and better cutting quality
- The desired values for width and thickness can be conveniently pre-set and are displayed on an HMI

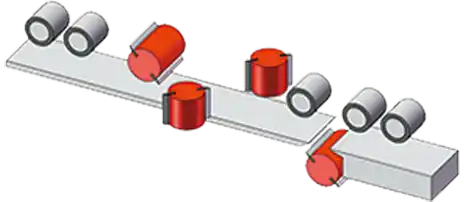

A Wide Range of Spindle Configurations
LMC – 423
4 Spindle

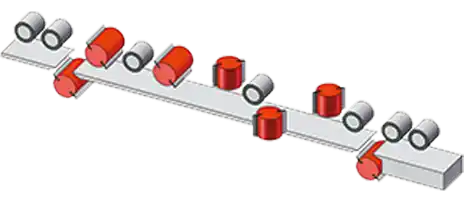

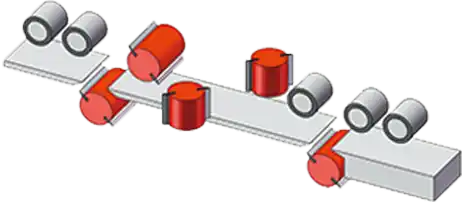

LMC – 523
5 Spindle

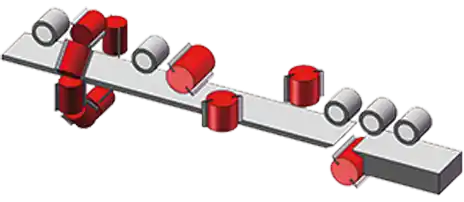

LMC – 523
5 Spindle (with universal spindle)

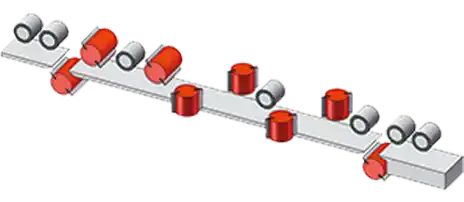

LMC – 623
6 Spindle

LMC – 723
7 Spindle

LMC – 823
8 Spindle

Specification Platinum Series - 4 Sided Moulder
Model | Standard Parameter | Optional Specs |
---|---|---|
Working width (at a tool cutting circle of 140 mm) | 15 - 230 mm (0.599" - 9.1") | to 260 or 300 mm (10.2" or 12" optional) |
Working height (at a tool cutting circle of 163 mm) | 10 - 150 mm (0.39" - 6") | to 6 - 200 mm (to 1/4" - 8" optional) |
Number of spindles, min max | 4 to 8 heads / spindles | All different types of spindle configurations - optional) |
Basic motor capacity of feed - VFD - Variable Fequency Drive | 3.7 kW / 5 HP | |
Feed speed, infinitely variable by frequency driven motor | 6 - 30 m/min (20 - 100 fpm) | |
Basic motor capacity per spindle | 7.5 kW / 10 HP vert & 11 kW / 15 HP horizontal | to 18.5 kW / 25HP - optional |
Spindle speed | 6000 rpm | 7200 rpm or 8000 rpm |
Spindle diameter | 40 mm (1.6 ") | 50 mm, 1 1/2", 1 13/16" |
Tool cutting circle, first bottom spindle, min-max | 125 - 160 mm (4.9" - 6.3") | |
Tool cutting circle, vertical spindles, left, min-max | 112 - 200 mm (4.4" - 7.9") | |
Tool cutting circle, vertical spindles, right, min-max | 112 - 200 mm (4.4" - 7.9") | |
Tool cutting circle, horizontal spindles, top, min-max | 112 - 200 mm (4.4" - 7.9") | |
Tool cutting circle, horizontal spindles, bottom, min-max | 112 - 200 mm (4.4" - 7.9") | |
Feed roller diameter | 140 mm (5.5") | |
Top feed roller width - each roll with multiples on all top shaft | 3 x 50mm (2") | |
Bottom feed roll width | Full width | |
Pneumatic pressure for feed rollers, max | 6 bar (85 psi) | |
Adjustment range for infeed table | 10 mm (0.4") | |
Adjustment range for edge-jointing fence | 10 mm (0.4") | |
Adjustment range of vertical spindles (axial) | 40 mm (1.58") | |
Adjustment range of horizontal spindles (axial) | 20 mm (0.79") | 100 mm (4") - optional with setworks if desired |
Length of the straightening table | 2M (78.7") | |
Diameter of dust hood for vertical spindle | 125 mm (5") | 2.5 M or 3M (98" or 120" - optional) |
Diameter of dust hood for horizontal spindles | 125 mm (5") |
Standard Configuration | Standard Machine | Optional Specs |
---|---|---|
Chainless cardan shaft feed system w/ HD gearboxes | Standard | |
Motorized vertical adjustment of feed beam | Standard | |
Lateral pressure roller opposite first right spindle | Spring tensioned standard | Pneumatic tensioned - optional |
Sectional radial lift - linage style top head chipbreakers | Spring tensioned standard | Pneumatic tensioned - optional |
Mechanical digital readout for the pressure shoes & hold-down unit | Standard | Metric or Inch readouts |
Mechanical digital readouts on all spindle axis | Single - Std. | Dual on near sdie, & tops - radial readouts & quick |
Central location of all lubrication points at the front of the machine | Standard | Set - optional |
Auto table lube system | Standard | |
Full sound and safety enclosure | Standard |
Optional Equipment |
---|
A wide range of spindle configurations (other configurations available as request) |
Readouts and library or stored information |
Universal last head or rip saw attachment |
Split top head pressure plates |
Tilting top pressure plates |
