Leadermac

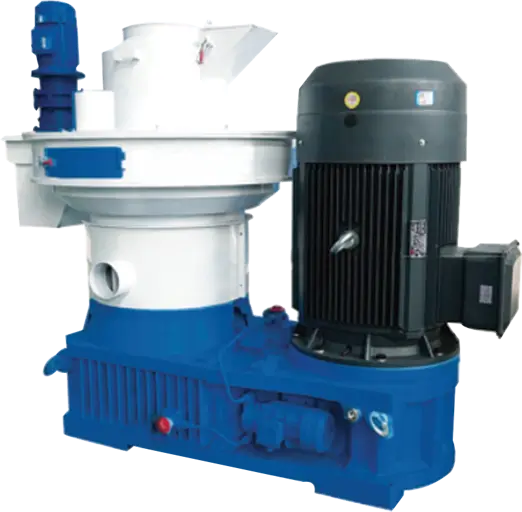

Pellet Mill Series

  • Available biomass pellet diameter from 6, 8, 10 to 20mm.
  • The ring dies are made of special stainless steel to guarantee the production performance and the total lifetime; double layer design, easy to use and maintain.
  • Fully automatic grease lubricating design, bottom reducer, and flipping reducers applied gear oil lubricating, reducing grease consumption.

Available Raw Materials

LD560ALD700LD720LD850
Main power110 kW132kW (LD700)160 kW220 kW
Unit capacity1-1.5 T/H1.5-2T/H2-2.5 T/H3-4T/H
Pellet diameter6/8/10 mm (optional)6/8/10 mm (optional)6/8/10 mm (optional)6/8/10 mm (optional)
Flipping motor1.5 kW1.5 kW2.2 kW3 kW
Ring die inner diameter560 mm560 mm720 mm850 mm
Ring die materialHeat processed alloy steelHeat processed alloy steelHot processed alloy steelX46Cr13 Stainless Steel
Gear oil pump power1.1 kW1.1 kW1.5 kW2.2 kW
Dust collector3 kW3 kW3 kW3 kW
Grease typeAutomatic oil pumpAutomatic oil pumpAutomatic oil pumpAutomatic oil pump
Gearbox cooling method80 W Brass Radiator80 W Brass Radiator100 W Brass RadiatorBrass Radiator Set, Air cooling
Air colling power2.2 kW2.2 kW3 kW4kW
Gross weight4,484 kg4,993 kg5,680 kg8,890 kg
Overall dimension2500*1350*1900 mm2500*1350*1900 mm2680*1500*2100 mm2880*1730*2200 mm

Mesin Produksi Pellet Kayu Sesuai Kebutuhan

Sesuaikan bahan dan kebutuhan mesin produksi pellet kayu ataupun pellet pakan ternak yang dengan kapasitas produksi.

Small Pellet Mill P Series

Untuk produksi pellet untuk pakan ternak.

Eco Grinder C Series

Untuk produksi pellet kayu dari jerami, kulit kacang, dll.

Advanced Eco Grinder D Series

Untuk produksi pellet dari pecahan kayu, ranting, dll.

Small Pellet Mill

Untuk produksi pellet dari kulit kacang, sekam padi, dan sisa tanaman lainnya.
