P-630
Heavy Duty Planer
Features
- Power Raising worktable by 1/2HP separate motor to achieve high efficient operation.
- Worktable amounts on 4 strong raising screws.
- Quick-adjustment equipment for quick adjusting table rolls while encountering with unusual rough bottom workpieces.
- Variable Feed speed system actuated by separate 1HP motor to meet the needs of different kind of material for powerful feeding and greater safety of operation.
- Anti-Kick back equipment gives operator greater safety.
- Up To 300mm thickness large cutting capacity.
- Sectional in-feed roll,chip breaker.
- 4-Knife cutterhead for more smooth performance.
- Easy Operation knife setting gage.
- 6″ Dia. Nozzle Exhaust Hood.
- Two upper outfeed rolls.
Standard Equipment of P-630
3p 7-1/2HP motor; magnetic switch; 6″ dia. nozzle exahaust hood; knife setting gage; adjusting spanner.
Optional Equipment of P-630
G: Grinding Attachment
Build-in grinding attachment (1p 1/2HP)to keep knives on good condition to achive better performance and saves the time on replacing knives.
P: Power Table
Power driven worktable rolls for obtaining smooth process while encountering with damp workpiece.
I: Increased Horse Power
Up to 3p 10HP motor can be fitted upon request.
D: Digital Controler
This digital controler provides thickness setting and accurate thickness controll.

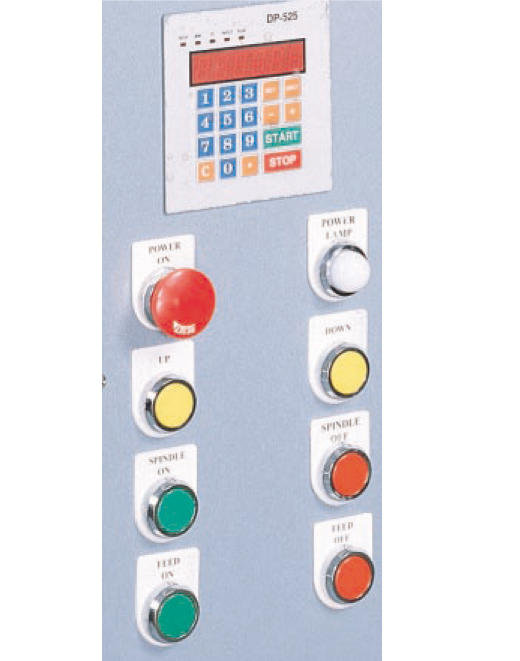

Digital Controller (Optional)
This digital controller provides thickness setting and accurate thickness controll.
Standard for P-630,P-508,P-20
Quick-adjustment equipment for quick adjusting table rolls while encountering with unsual rough bottom workpieces.
Accurately designed well built neat precise structure.
Specification P-630 Heavy Duty Planer
| Model | P-630 |
|---|---|
| Capacity | |
| Max. width of workpiece | 630 mm |
| Max. thickness of workpiece | 300 mm |
| Max. depth of cut | 8 mm |
| Min. length of workpiece | 220 mm |
| Cutterhead | |
| Number of knives | 4 pcs |
| Diameter | 98 mm |
| Cutting circular | 102 mm |
| Speed | 4800 rpm |
| Table size | |
| Width | 685 mm |
| Length | 870 mm |
| Feed rolls | |
| In-feed (sectional) | 76 mm - one |
| Out-feed (solid) | 60 mm - two |
| Table roll (solid) | 72 mm - two |
| Feed rate | 34-5/16" |
| Overall dimension (L x W x H) | 1305 x 960 x 1200 mm |
| Net weight | 820 kgs |
| Gross weight | 920 kgs |
| Gronding attachment | 30 kgs |
The above data are not binding to details as improvements are incorporated from time to time.
* All specitications, dimensions and design characteristics shownin this catalogue are subject to change without notice.N
