P-20
Planer
Features
- Uniformly Thickness smooth cutting.
- Quick-adjustment equipment for quick adjusting table rolls while encountering with unusual rough bottom workpieces.
- Anti Kick Back equipment gives operator greater safety.
- Up To 8″ thickness large cutting capacity.
- Sectional in-feed roll,chip breaker.
- Easy Operation knife setting gage.
- Magnetic switch control.
- 6″ Dia.dust hood outlet.
Standard Equipment of P-20
3p 5HP (for P-20); magnetic switch; 6″ dia. dust hood; knife setting gage; adjusting spanner;

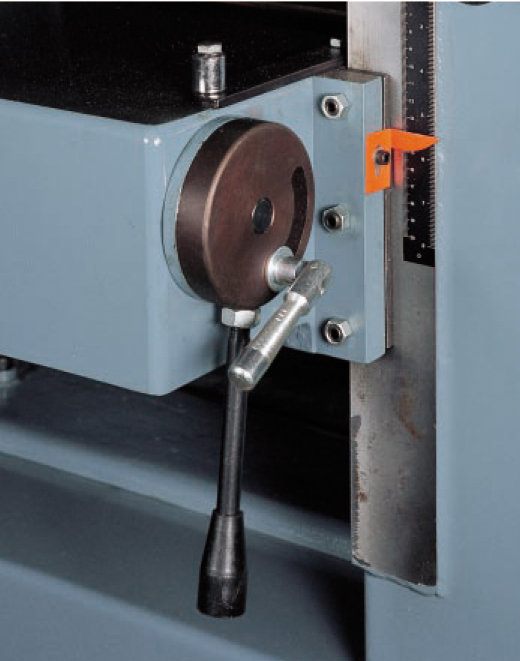

Standard for P-630, P-508, P-20
Quick-adjustment equipment for quick adjusting table rolls while encountering with unsual rough bottom workpieces.
Specification P-20 Planer
| Model | P-20 |
|---|---|
| Capacity | |
| Max. width of workpiece | 508 mm |
| Max. thickness of workpiece | 203 mm |
| Max. depth of cut | 8 mm |
| Min. length of workpiece | 200 mm |
| Cutterhead | |
| Number of knives | 3 pcs |
| Diameter | 80 mm |
| Cutting circular | 84 mm |
| Speed | 5200 rpm |
| Table size | |
| Width | 562 mm |
| Length | 713 mm |
| Feed rolls | |
| In-feed (sectional) | 75 mm - one |
| Out-feed (solid) | 60 mm - one |
| Table roll (solid) | 72 mm - two |
| Feed rate | 34-5/16" |
| Overall dimension (L x W x H) | 1108 x 762 x 1136 mm |
| Net weight | 420 kgs |
| Gross weight | 520 kgs |
The above data are not binding to details as improvements are incorporated from time to time.
* All specitications, dimensions and design characteristics shownin this catalogue are subject to change without notice.
