SINGLE PHASE MACHINERY

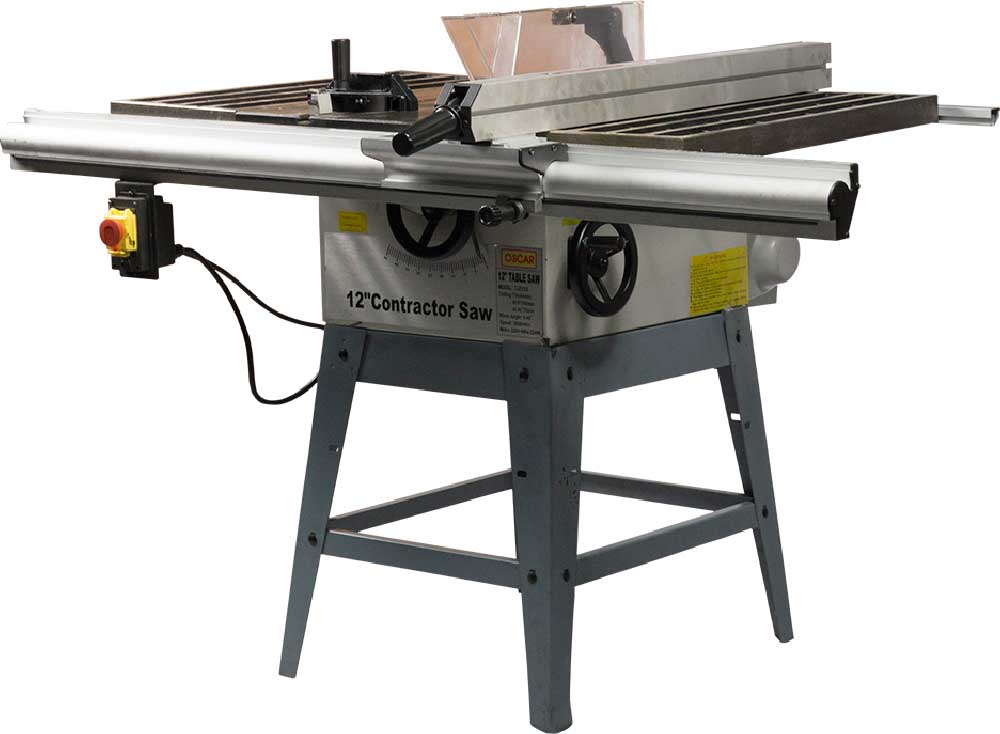

TJZ12/2 Contractor Saw 12 Inch
This machine is a wood cutting machine that can cut with precision. Equipped with a ruler feature, this machine can produce straight cuts. The guard rail also helps users to get precise and neat cuts even when the cutting angle is changed up to 45°.

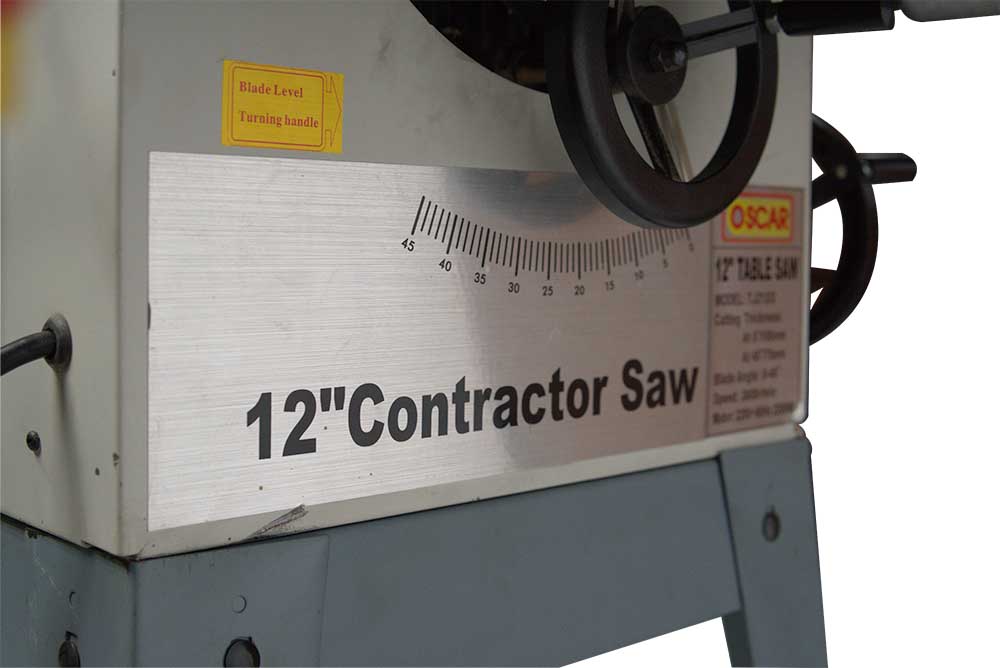

The saw blade can be raised or lowered and tilted for straight or angled cuts.
This machine is widely used for splitting wood.
TJZ12/2 Video
Kunjungi Youtube channel PT. Alpha Utama Mandiri untuk melihat berbagai macam update konten video mesin-mesin perkayuan terbaru.
Specification TJZ12/2
| MODEL | TJZ12/2 |
|---|---|

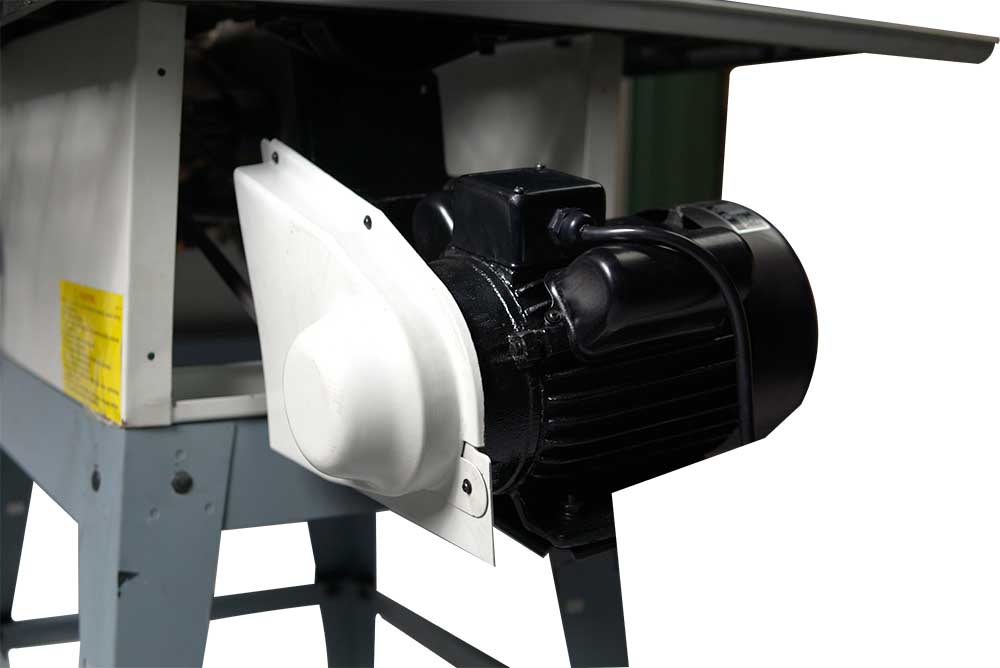

| Electromotor | 2200 W |
| Cutting Depth | 0°/105 mm ; 45°/70 mm |
| Blade Angle | 0-45° |
| Speed 50Hz | 3000 r/min |
| Speed 60Hz | 3600 r/min |
| Working Table | 1030 x 685 mm |
| Blade | Φ305 mm |
| Weight | 115/110 kg |
