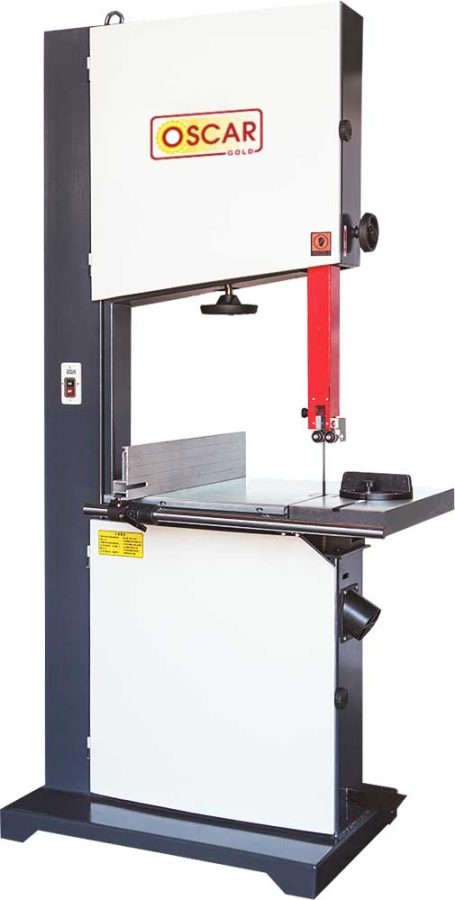

MJ346E Vertical Band Saw

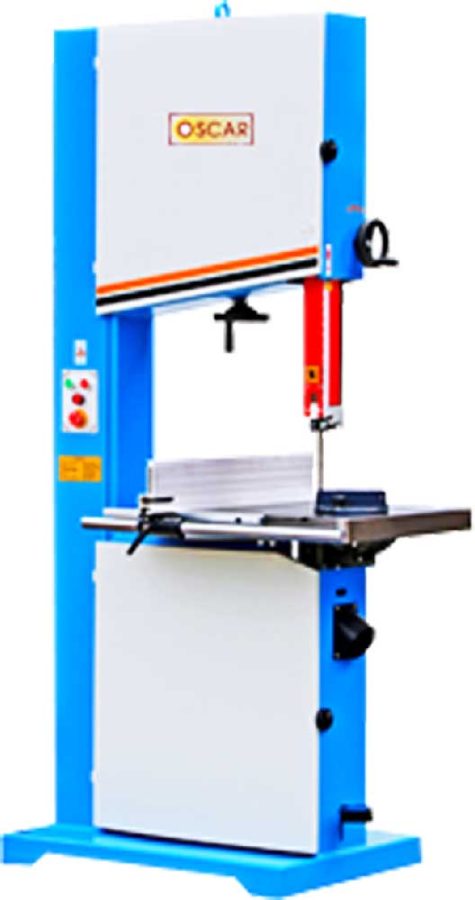

MJ347E Vertical Band Saw

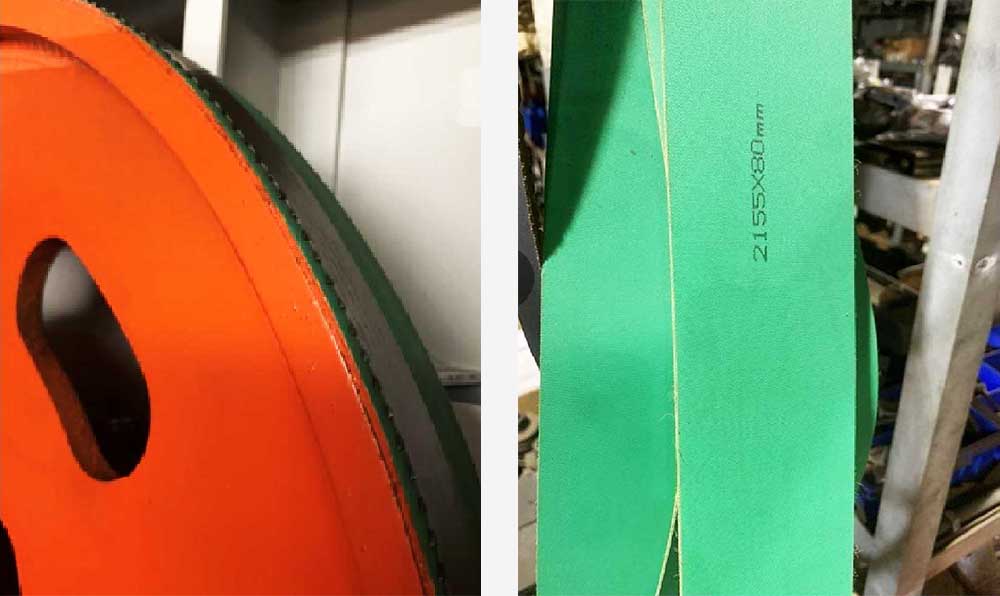

Flat Belt
The flat belt has same function as rubber.
It is durable and easy to replace
Specification MJ346E
| MODEL | MJ346E |
|---|---|
| Saw wheel diameter | 600 mm |
| Saw wheel width | 40 mm |
| Saw wheel speed | 800 r/min |
| Max sawing thickness | 450 mm |
| Working table size | 700 x 600 x 60 mm |
| Blade length | 4660 x 19 mm |
| Cutting speed | 25 m/s |
| Table tilting | 0-45° |
| Motor power | 3.0 kW (2 phase , 380V) |
| Dimension | 2182 x 975 x 823 mm |
| Throat depth | 580 mm |
| Weight | 368 kg |
Specification MJ347E
| MODEL | MJ347E |
|---|---|
| Saw wheel diameter | 700 mm |
| Saw wheel width | 40 mm |
| Saw wheel speed | 540 r/min |
| Max sawing thickness | 500 mm |
| Working table size | 700 x 600 x 60 mm |
| Blade length | 5250 x 19 mm |
| Cutting speed | 25 m/s |
| Table tilting | 0-45° |
| Motor power | 4.0 kW (2 phase , 380V) |
| Dimension | 2380 x 923 x 1155mm |
| Throat depth | 680 mm |
| Weight | 470 kg |
