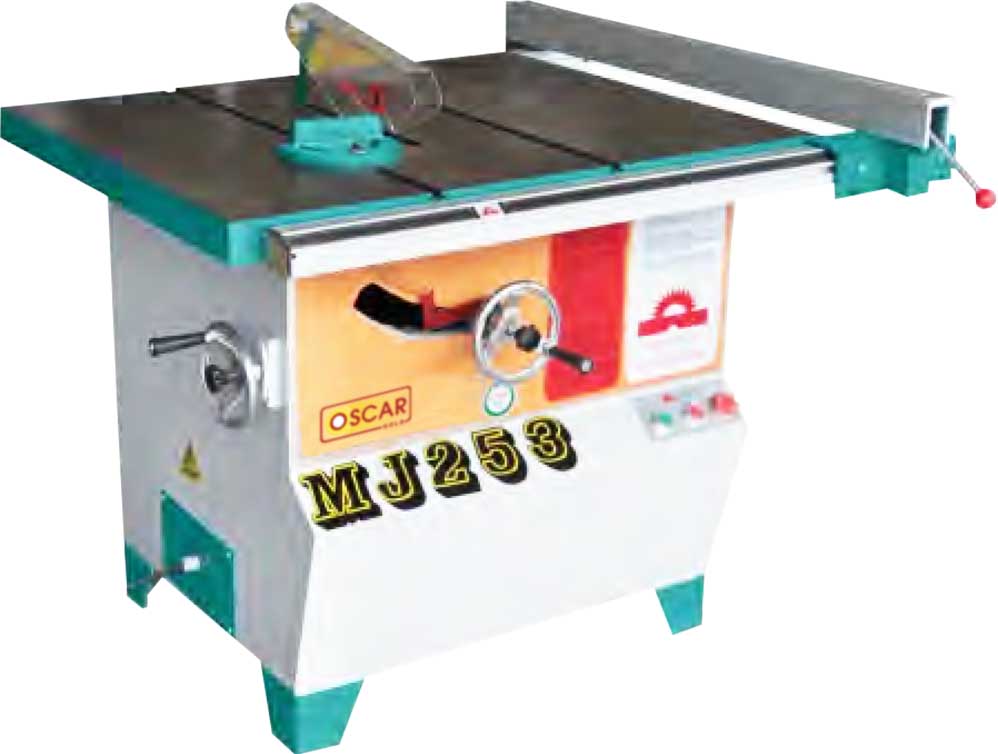

MJ253 Axis Tilting Saw
Specification MJ253
| MODEL | MJ253 |
|---|---|
| Table size | 970 X 800 mm |
| Maximum of thickness | 65 mm (90°)/95 mm (90°) |
| Tilting angle table | 45° |
| Blade dia. | Φ305 X Φ25.4 mm |
| Spindle speed | 3500 r/min |
| Install power | 3 kW |
| Machine dimension | 1020 X 950 X 900 mm |

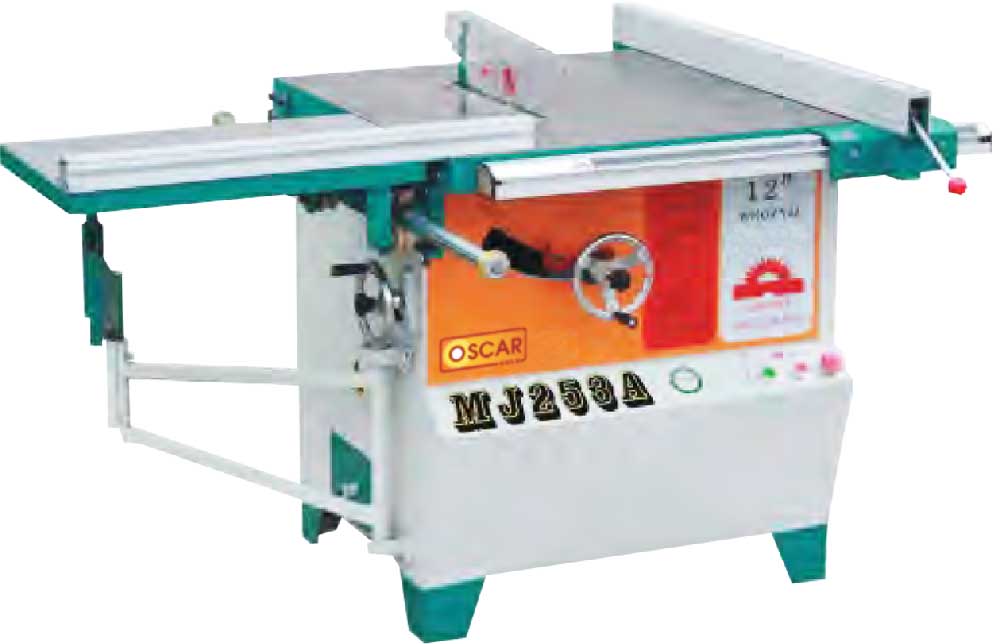

MJ253A Axis Tilting Saw
Specification MJ253A
| MODEL | MJ253A |
|---|---|
| Table size | 800 X 800 mm |
| Push table size | 600 X 400 mm |
| Length of the guide rail | 1200 mm |
| Max. of thickness | 65 mm (45°)/95 mm (90°) |
| Tilting angle table | 45° |
| Blade dia. | Φ305 X Φ25.4 mm |
| Spindle speed | 3500 r/min |
| Install power | 3 kW |
| Machine dimension | 1550 X 1200 X 900 mm |
