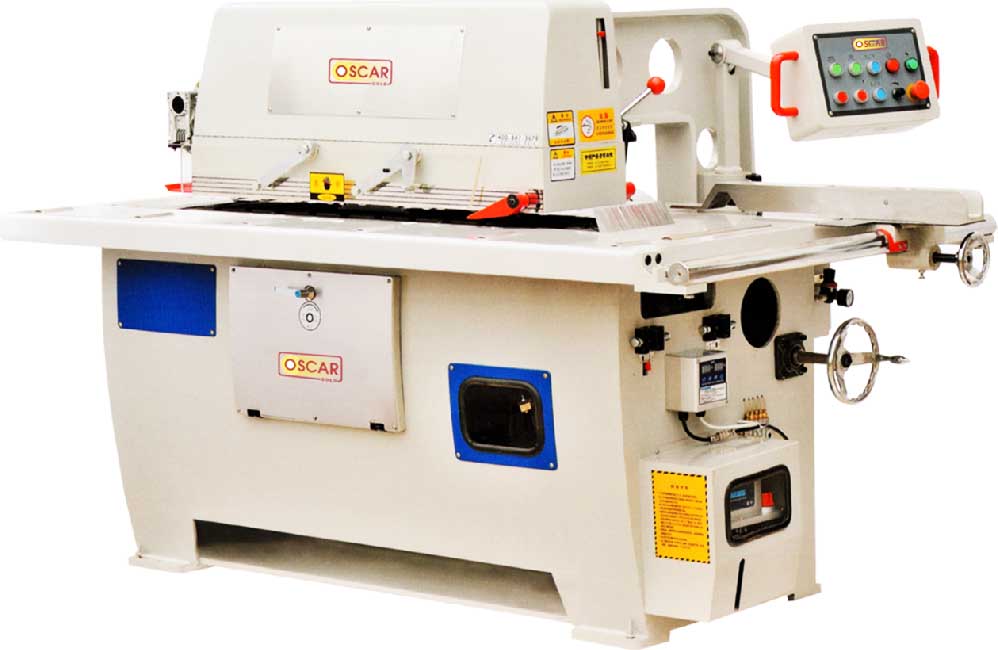

MJ164D Beeline End-Trimming Rip Saw
Features:
- High linear precision
- Smooth use
Specification MJ164D
| MODEL | MJ164D |
|---|---|
| Working height | 10-115 mm |
| Throat capacity | 660 mm |
| Saw blade diameter | 355-455 mm |
| Min. working length | 120 mm |
| Spindle speed | 2930 r/min |
| Spindle motor | 11 kW |
| Elevating motor | 0.18 kW |
| Feed motor | 2.2 kW |
| Feed speed | 0-26 m/min |
| Sawblade bore diameter | Φ50.8 mm |
| Machine dimension | 2150 x 1600 x 1360 mm |
| Machine weight | 1850 kg |

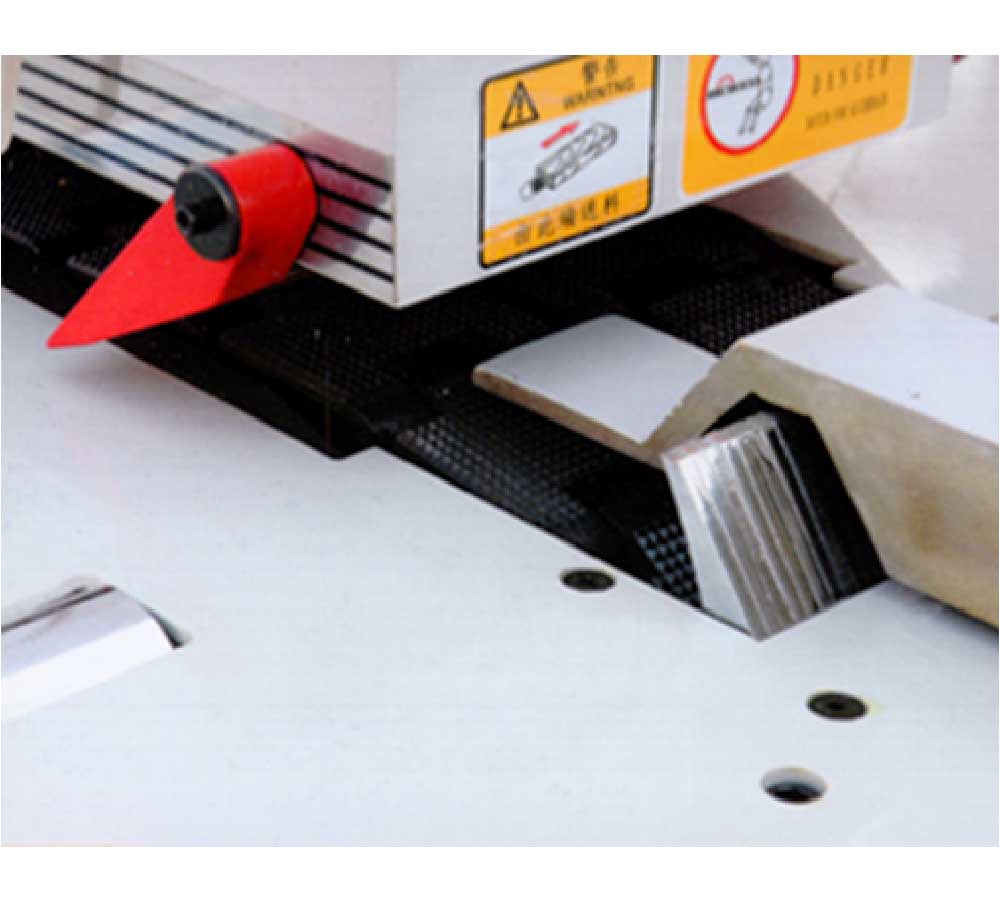

Reflector Tool
Anti-kickback device on working platform, avoid workpiece bouncing back and ensure cutting safety.

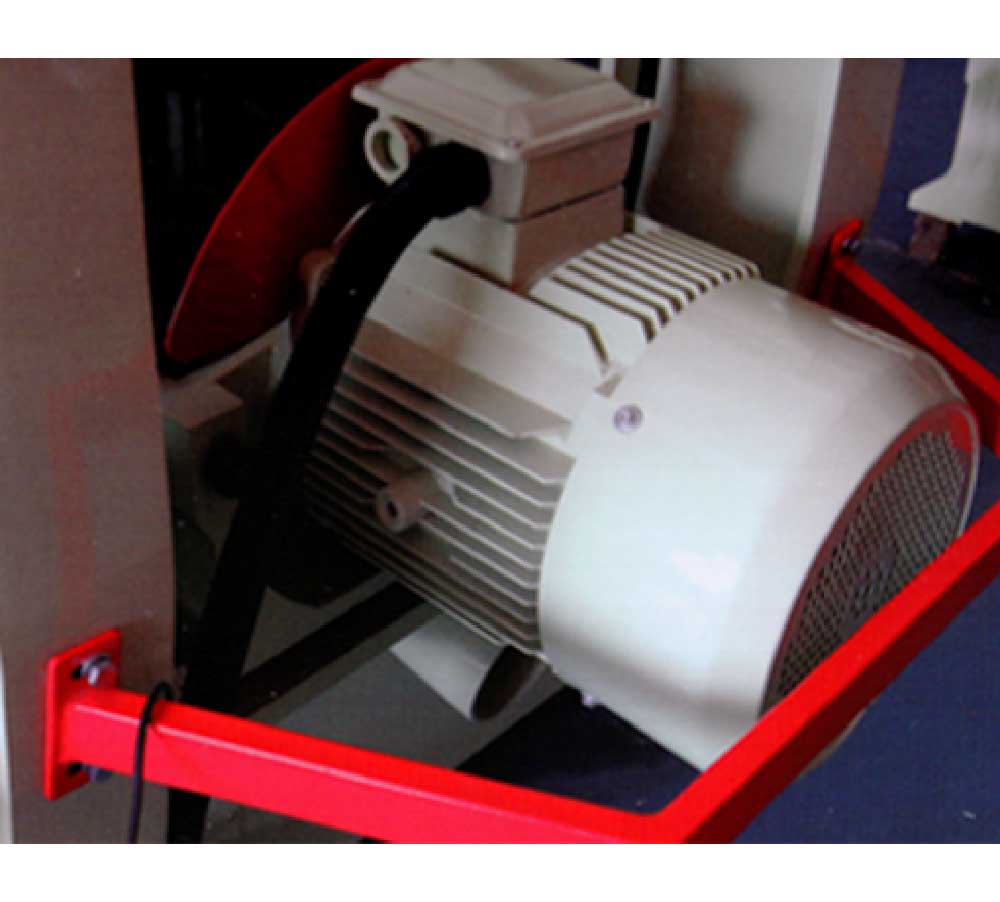

Power Strength
The main shaft is made of special material and the motor adopts a uniform design, guaranteeing high accuracy and strong power.
Double Board
Specially designed 2-sided railing to avoid unequal wear due to long-term use of one side for longer service life of the guide line and conveyor joints.
Feeding
Conveyor chain block is made by special material with tooth surface for better friction and resistance, stock feeding smoother.

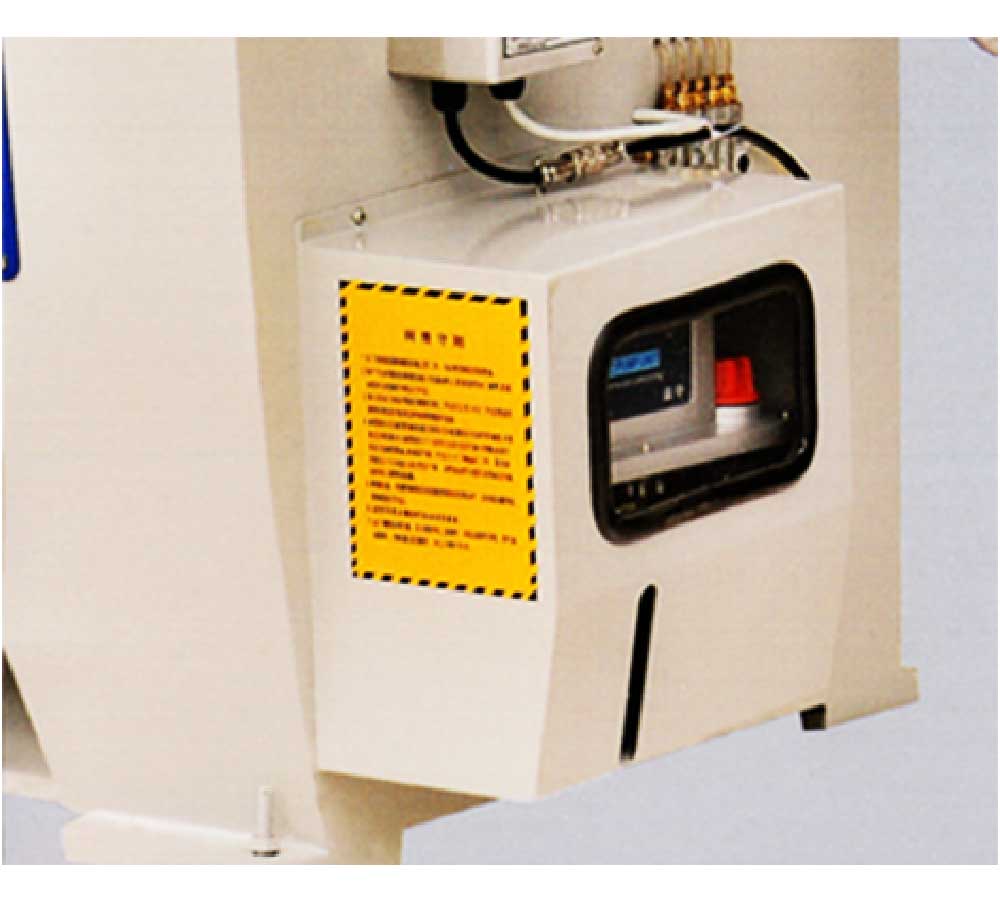

Lubrication
An automatic lubrication system that circularly lubricates all parts of the tool, ensuring operational efficiency and increasing service life.

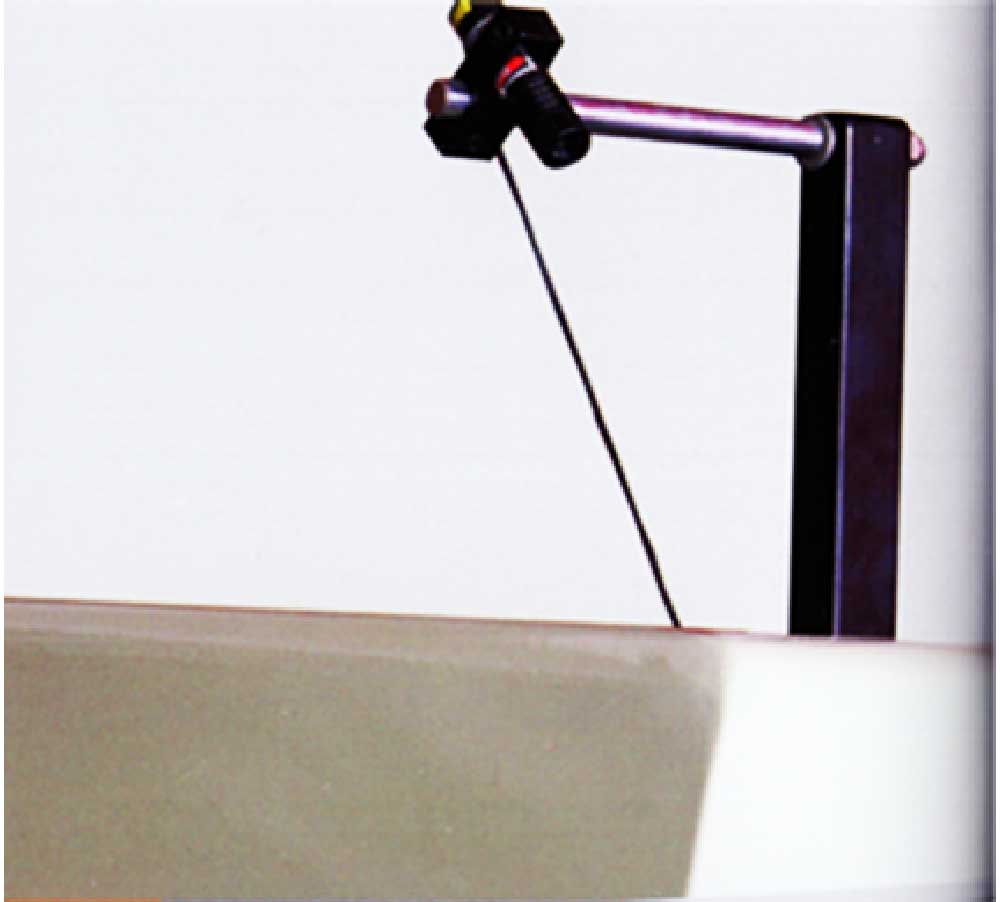

Infrared
Selected for infrared calibration device, workpiece: calibration can be performed in real-time.
