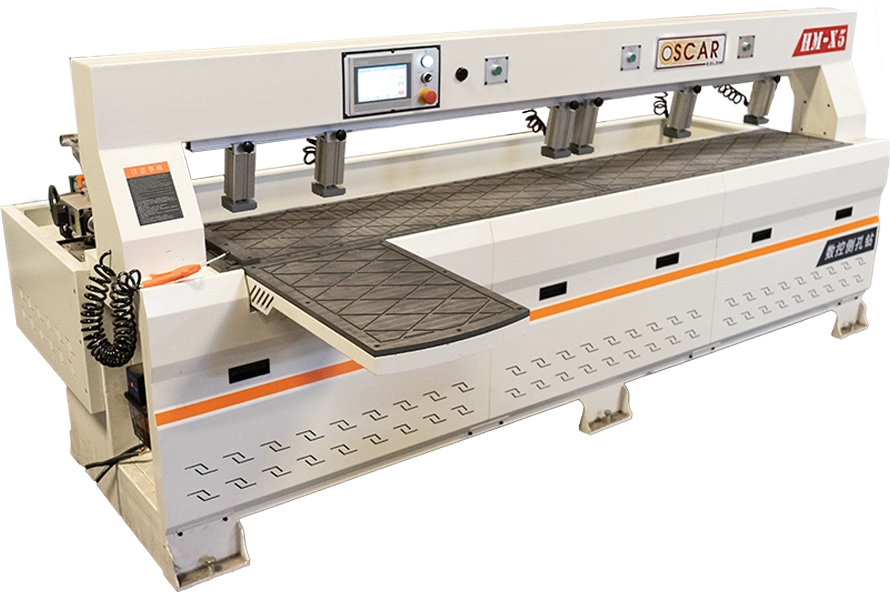

HM-X5 CNC Dual Axis Side Hole
The main function:
Sweep docking Lamino invisible parts, Le buckle invisible parts, slide buckle invisible parts, laser scanning three in one, blind hole, pull slot, slot hole, etc
- Scope of Application: Panel furniture, custom furniture, cabinets and cupboards, office furniture, hardwood furniture, tables, chairs, doors and windows, wood products, decoration industry, etc.
- Processable Board: Suitable for density board, ecological board, multilayer board, particle board, flat solid wood board, aluminum honeycomb board and other types of boards
Machine Detail Explanation:

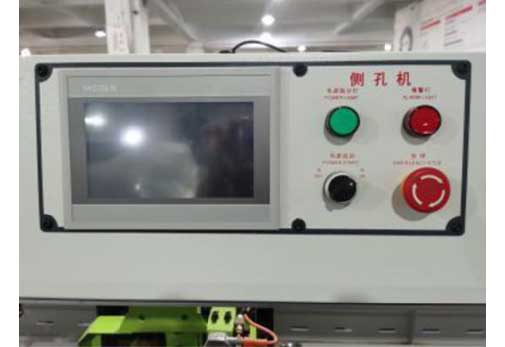

Touchscreen: Kunlun Tongshi
Excellent touch screen in woodworking industry, fast response, no accidental touch
Dual Spindles
Docking brooms for various invisible parts, one high-speed shaft for slotting and punching tools, and a three-row drill pack for three drill bits.

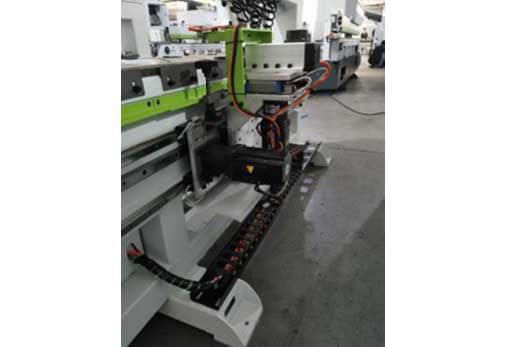

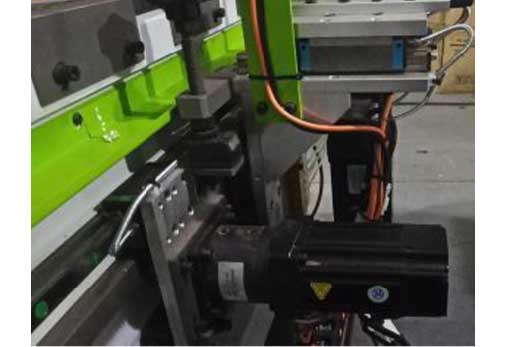

Dual Servo Motors
Two servo motors for X axis and Y axis, in and out depth servo control, convenient and fast.

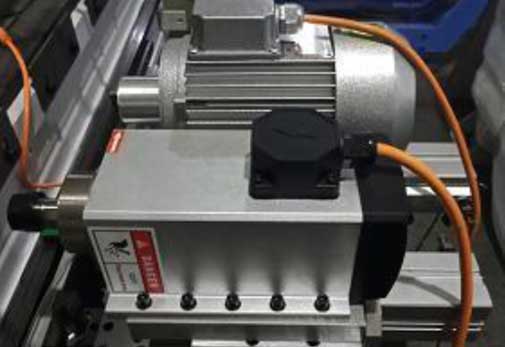

Dual Spindle Motors
3.5 kW high-speed motor, drill row with 1.5 kW motor.
Sensor Laser
Laser terusi impor dari AS, pelat gelap yang mudah diidentifikasi, untuk memastikan akurasi pukulan, tidak ada kebocoran lubang.

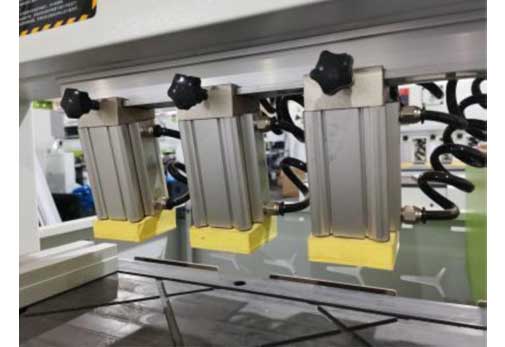

Inclined Pressure Cylinder
Silinder tekanan miring, pelat tidak akan berjalan mundur.
Wire Trunking
Imported cable channels, decent cables.

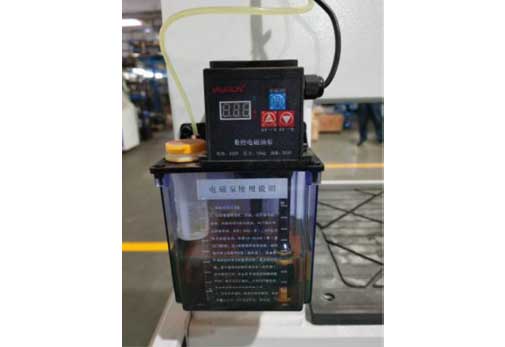

Centralized Lubrication System
Automatic oil filling and maintenance, oil pipe connected to key driving parts such as sliders and guides and racks, all-round lubrication, reduce machine wear, extend machine life.

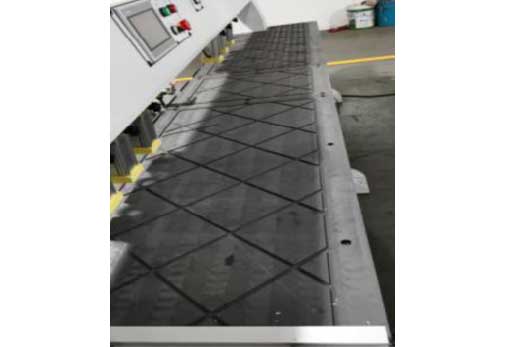

Precision Milling Tables
Precision CNC milling table surface, to ensure table surface level. Milling with a diamond-shaped groove to increase the friction coefficient of the table plate does not slip and run.
Rack and Pinion Sliders for Guide Rails
Imported joint venture guide rack, dust-proof slider, smooth and seamless running.

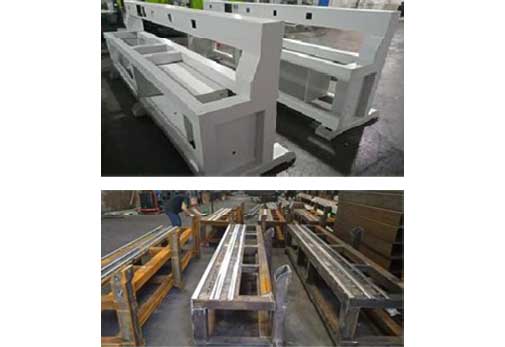

National Standard Bed
Welded with square steel and forged to relieve from welding stress, ensuring that it does not deform after years of use. Bed joint welding is more intensive, increasing the strength of the bed and ensuring that the fram will not deform.
Accessories HMX5
| Model | Merk |
|---|---|
| High Speed Motor | Germany UFC / Ridgeworth |
| Frequency Converter | Coreken |
| Laser Sensors | Bonner USA |
| Touch screen | Kunlun Tongzhou |
| Proximity Switch | Taiwan Yang Ming |
| Low Voltage Electrical Equipment | Chint / Deluxe |
| Pneumatic Components | Billion Days / WSM |
| Driver | Dongling |
| XY Axis Dual Servo Motor | Dongling |
| Guide Rail | Kate |
| Rack and Pinion | Top 100 |
Specification HMX5
| Model | HM-X5 |
|---|---|
| Overall Size | 3300 (adjustable) x 1560 x 1350 mm |
| Work Pressure | 0.6 Mpa |
| Power | 5 kW |
| Feeding Speed | 0 - 100 m/min |
| Panel Thickness | 10 - 70 mm |
| Panel Sheet Length and Width | 2450 (adjustable) x 1300 mm |
| Working Voltage | 3-HP-AC 380V/50Hz |
| Weight | 900 kg |
