MZ73031
Vertical Hinge Drill
- Single head woodworking hinge drilling machine
- It is suitable for drilling different kinds of profiles. Two are assembly screw holes, which can ensure the depth of drilling. One of the large holes is hinge head hole, which is flexible, accurate and strong.
Specification MZ-73031
| Model | MZ73031 |
|---|---|
| Max. drilling diameter | 50 mm |
| Max. drilling depth | 60 mm |
| Vertical spindle heads | 220-815 mm |
| Number of spindle | 3 pcs |
| Spindle speed | 2840 r/min |
| Install power | 1.5 kW |
| Air pressure | 0.6-0.8 mpa |
| Overall size | 800 x 750 x 1700 mm |

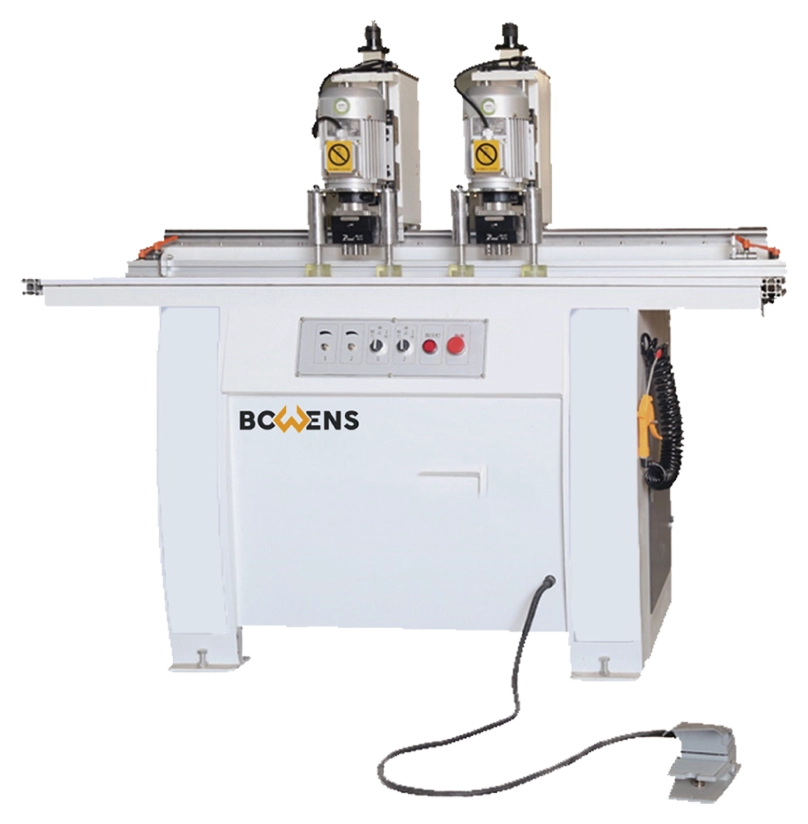

MZ73032
Vertical Hinge Drill
- Double head woodworking hinge drilling machine
- It is mainly used for hinge hole of furniture door panel, which has compact structure and can greatly improve the production efficiency. The machine can process hinge holes of one or two doors at one time.
Specification MZ-73032
| Model | MZ73032 |
|---|---|
| Max. drilling diameter | 50 mm |
| Max. drilling depth | 60 mm |
| Vertical spindle heads | 220-750 mm |
| Number of spindle | 3 x 2 pcs |
| Spindle speed | 2840 r/min |
| Install power | 2 x 1.5 kW |
| Air pressure | 0.6-0.8 mpa |
| Overall size | 1700 x 850 x 1700 mm |
