*Machine picture shown is reference only

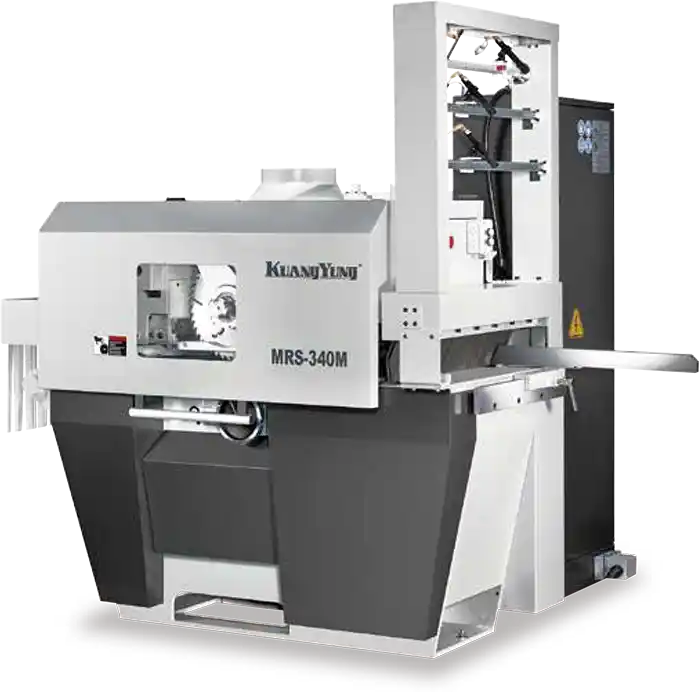

MRS-340M | MRS-340M2
Gang Rip Saw with 1 – 2 Powered Moving Saw
Dimension Diagram
Specification of MRS-340M | MRS-340M2
| Model | MRS-340M |
|---|---|
| Max. cutting thickness (standard) | using ⌀ 14" saw blade 100 mm using ⌀ 12" saw blade 75 mm |
| Number of movable saws | 1 / 2 |
| Max. cutting width | 340 mm |
| Max. material width | 665 mm |
| Min. material length | 550 mm |
| Max. sawblade diameter | ⌀ 355 mm |
| Min. sawblade diameter | ⌀ 305 mm |
| Sawblade bore | ⌀ 90 mm |
| Saw arbor diameter | ⌀ 70 mm |
| Saw arbor speed | 4200 rpm (50 Hz) 4500 rpm (60 Hz) |
| Pressure roll motor | 0.5 HP |
| Saw arbor motor | 50 HP (60 HP) |
| Feed motor | 3 HP |
| Variable feed speed | 5 - 40 m/min |
| Dust hood diameter | ⌀ 200 mm x 1 / ⌀ 100 mm x 1 |
| Table height from floor | 860 mm |
| Table area | 1525 x 595 mm |
| Overall dimensions | 2240 x 1580 x 1985 mm |
| Net weight | 2200 kgs |
Discover More MRS340M Series
*Machine picture shown is reference only

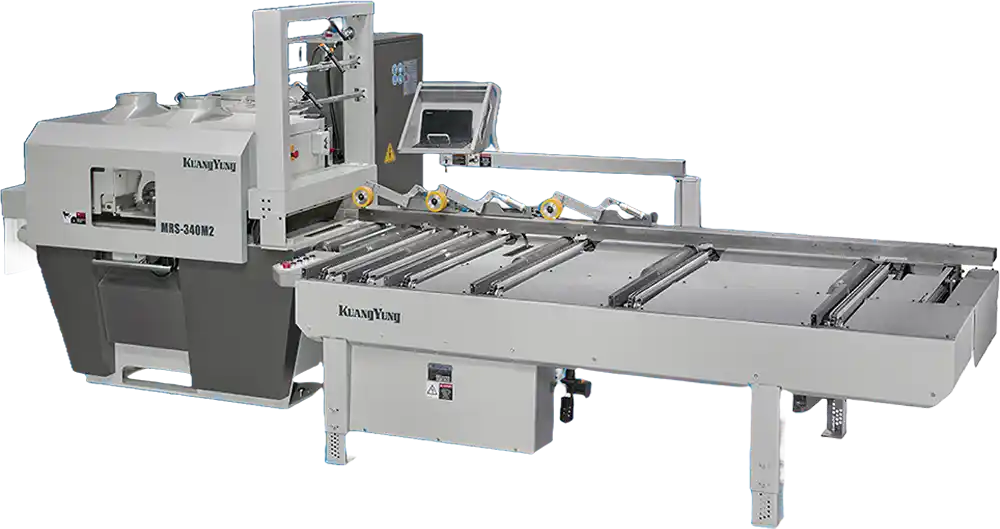

MRS-340M + Skw
Optimizing Movable Rip Saw with 2D Image Scanning System
MRS340M + Skew features 2D scanning and smart cutting optimization that adapts to natural wood shapes delivering precision, high yield, and minimal waste for irregular materials.
*Machine picture shown is reference only
MRS-340M + Auto Infeed System
Optimizing Movable Rip Saw with Auto Infeed System
The MRS-340 is a rip saw with auto infeed and intelligent cutting optimization. Ideal for boosting production efficiency and minimizing material waste in modern woodworking operations.
