*Machine picture shown is reference only
MRS-450M
Gang Rip Saw with 1 – 6 Powered Moving Saw
Dimension Diagram
Specification of MRS-450M
| Model | MRS-450M |
|---|---|
| Max. cutting thickness | 12" blade 75 mm 14" blade 100 mm |
| Number of movable saws | 3 (4 optional) |
| Max. material width of pass through | 875 mm |
| Max. cutting width | 450 mm |
| Min. material length | 610 mm |
| Max. sawblade diameter | ⌀ 355 mm |
| Min. sawblade diameter | ⌀ 305 mm |
| Sawblade bore | ⌀ 90 mm |
| Saw arbor diameter | ⌀ 70 mm |
| Saw arbor speed | 4200 rpm (50 Hz) 4500 rpm (60 Hz) |
| Saw arbor motor | 50 , 60 , 75 , 100 or 125 HP |
| Feed motor | 5 HP |
| Variable feed speed | 8 - 60 m/min |
| Dust hole diameter | ⌀ 100 mm x 1 ⌀ 200 mm x 2 |
| Table height from floor | 855 mm |
| Table area | 2050 x 750 mm |
| Overall dimension | 2290 x 2600 x 1950 mm |
| Net weight | 5300 kgs |
Discover More Quick Rip System

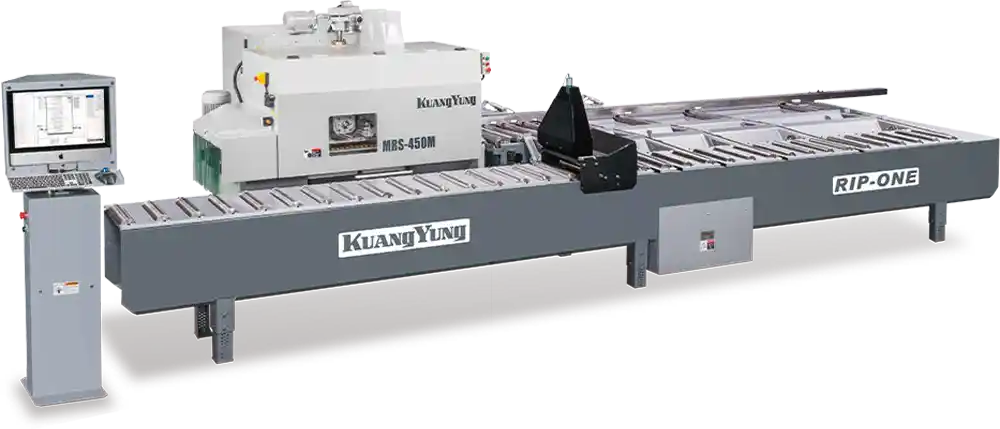

*Machine picture shown is reference only
MRS-450M Rip One System
Optimizing Movable Rip Saw with 3D Image Scanning System
MRS-450M features 3D image scanning and Rip One System for fully automated cutting precision. Ideal for intelligent production with maximum yield and minimal material waste.
*Machine picture shown is reference only
MRS-450M Quick Rip System
Movable Rip Saw with 2D Image Scanning System
MRS-450M combines 2D image scanning with the Quick Rip System to accelerate cutting processes, optimize material use, and ensure precision ideal for high volume, modern wood industries.
