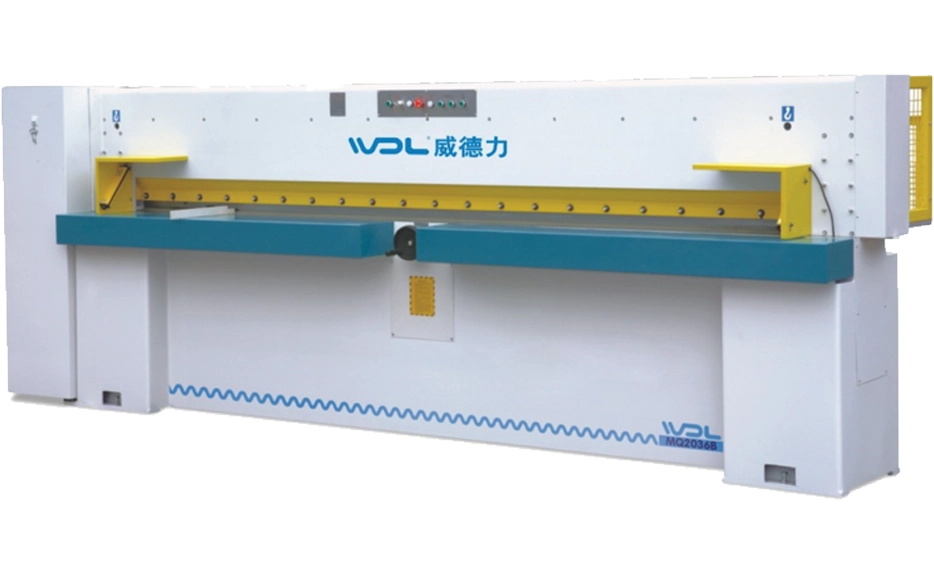

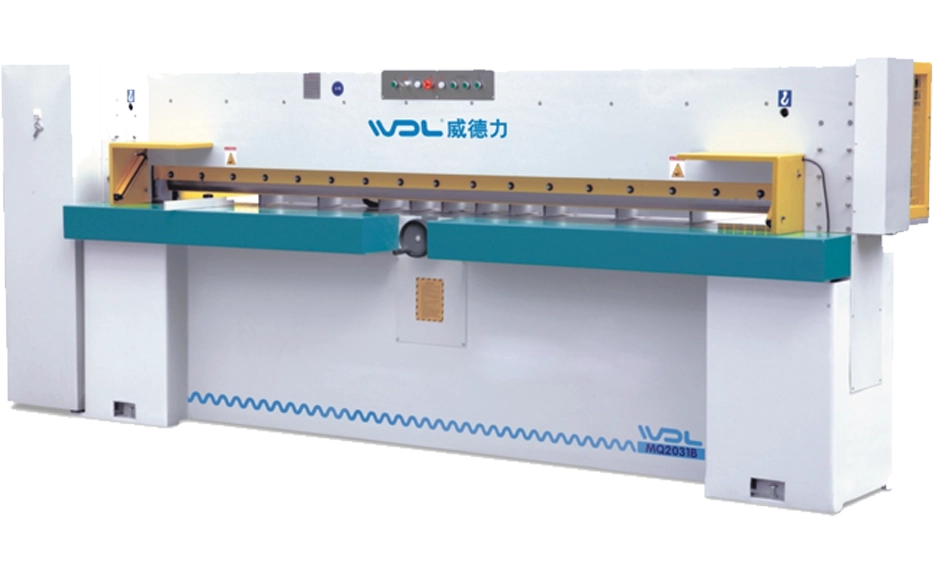

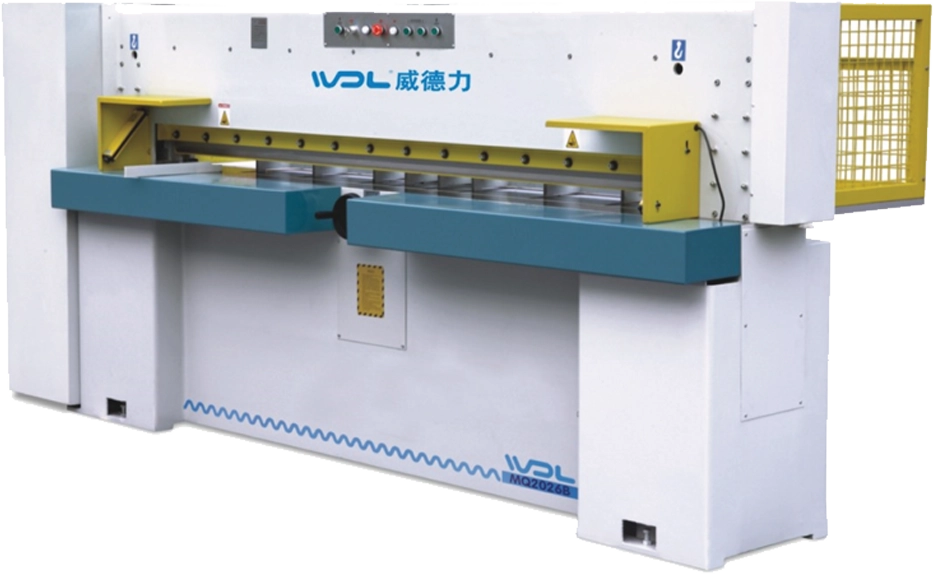

Veneer Guillotine

The motor-driven rear ruler can place workpiece to the right position for cutting

The read line indicates the right cutting position

Fine tuning ruler with indicator showexact cutting width

The safety electric eye and both-hand start button effectively prevent accidents from working

Use Swiss brand leather cutting scissors

The worktable panel is made of high quality stainless steel bars to prevent the wood from being worn when moving foward and backward

Model	MQ2026B	MQ2031B	MQ2036B
Maximum shear length	2600 mm	3100 mm	3600 mm
Maximum shear thickness	50 mm	50 mm	50 mm
Maximum shear width	700 mm	700 mm	700 mm
Maximum hydraulic pressure	14 Mpa	14 Mpa	14 Mpa
Pump power	3.7 kW	3.7 kW	3.7 kW
Feeding motor power	0.18 kW	0.18 kW	0.18 kW
Scissors size	2690 x 90 x 10 mm	3190 x 90 x 10 mm	3690 x 90 x 10 mm
Dimensions	3680 x 1600 x 1540 mm	4180 x 1600 x 1540 mm	4680 x 1600 x 1540 mm
Net weight	2500 kg	2800 kg	3100 kg
