MM2215 – Hand Stroke Sander
MM2615 / MM2617 – Vertical Oscillation Sander
(Solid)

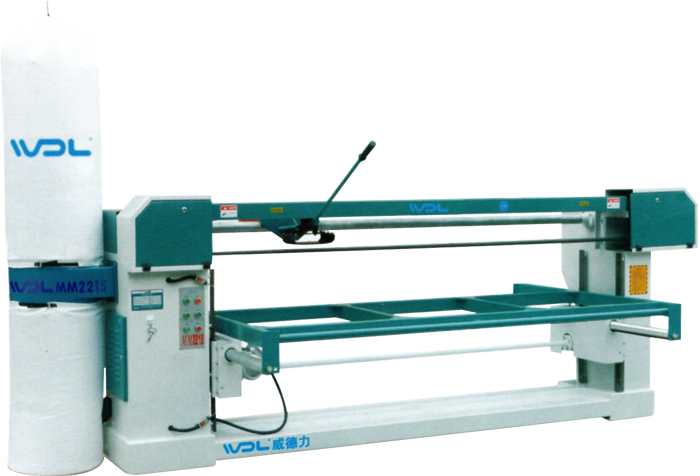

MM2215 – Hand Stroke Sander
It can be used to sanding the surface of the solid furniture.

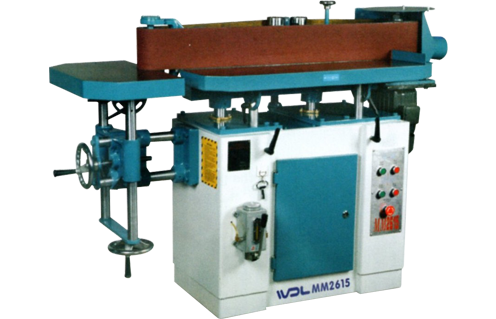

MM2615 – Vertical Oscillation Sander
It can be sanded the straight side, the concave arc side and the protruding arc side.

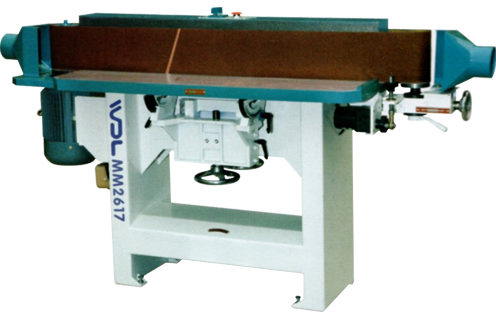

MM2617 – Vertical Oscillation Sander
It can be sanded the straight side.
| MODEL | MM2215 |
|---|---|
| Sanding belt linear speed | 17 m/sec |
| Drive wheel speed | 1440 RPM |
| Workbench size | 2500 x 1250 mm |
| Sanding belt size | 7000 x 152 mm |
| Drive wheel power | 3 Kw |
| Workbench lifting power | 0.55 Kw |
| Dust collector power | 0.75 Kw |
| Overall dimensions | 405 x 148 x 138 cm |
| Net weight | 560 Kg |
| MODEL | MM2615 | MM2617 |
|---|---|---|
| Sanding belt linear speed | 14 m/sec | 9 m/sec |
| Drive wheel speed | 1420 RPM | 1420 RPM |
| Vibration stroke | 19 mm | – |
| Sanding belt size | 2750 x 152 mm | 3120 x 170 mm |
| Tilting angle front bench | –30° - +45° | – |
| Tilting angle side bench | –45° - +45° | – |
| Drive wheel motor power | 3 Kw | 4 Kw |
| Vibration wheel mo tor power | 0.75 Kw | 0.025 Kw |
| Dust outlet diameter | Ø100 x 1pcs | Ø100 x 2pcs |
| Overall dimensions | 175 x 86 x 115 cm | 180 x 62 x 100 cm |
| Net weight | 560 Kg | 355 Kg |
