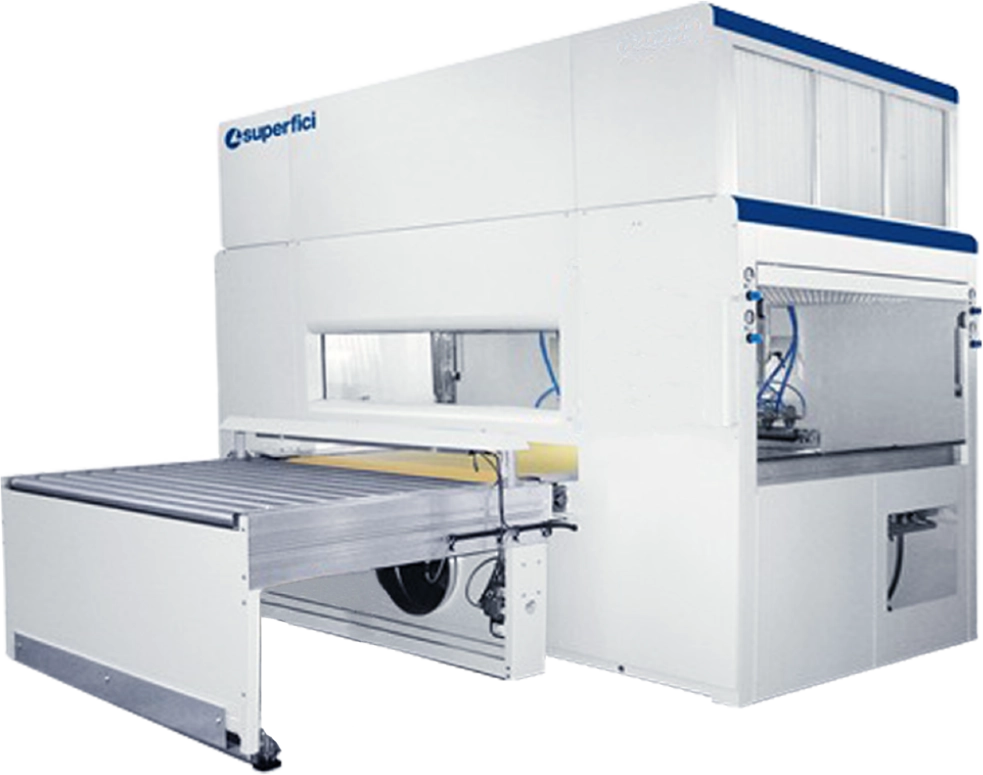

MINI R
Automatic Spray Machine
Specification MINI R
| Model | Mini R |
|---|---|
| Min - max working length | 350 - 3000 mm |
| Min - max working width | 20 - 1300 mm |
| Min - max working thickness | 5 - 100 mm |
| Working spray gun | 4 Guns |
| Min - max feed speed | 1 - 4 m/min |
| Total power | 9 kW |
| Paint type | PU, UV, NC & Waterbase |
| Dimension | 3510 x 3670 x 2775 mm |

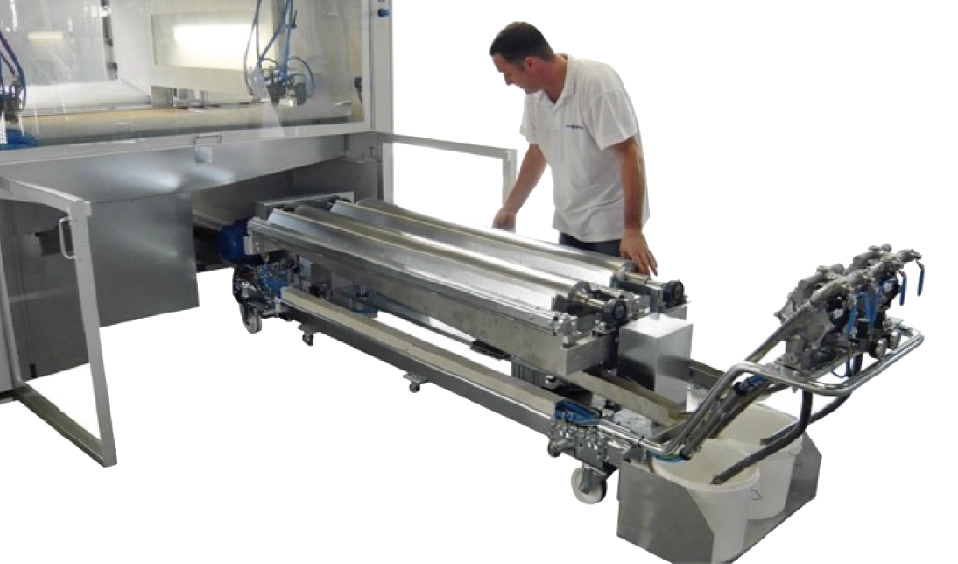

Recovery System
Reuse of wasted paint in the belt conveyor, so it can be save the use of paint up to 30% – 40%. This recovery system is installed on the side of the machine using trolley to make it easier at times cleaning.

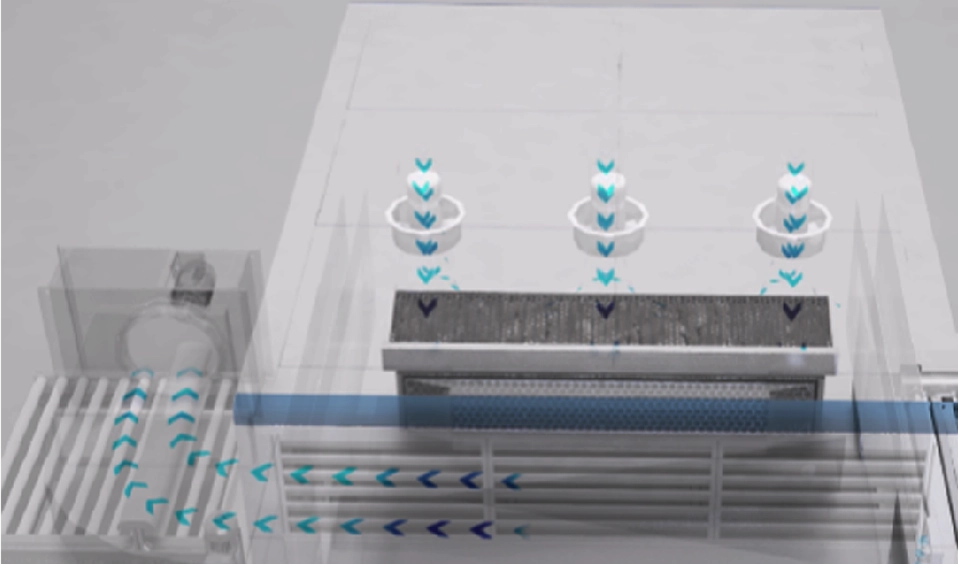

Pressurization System
The pressurized system consists of two intake air fans combined with a prefiltering system located on both sides of the cabin, thus reducing the turbulence of the spray gun and the use of paint can be more economical and the room does not get dirty quickly
