MH1831 – Hydraulic Clamp Carrier ( Six sides )

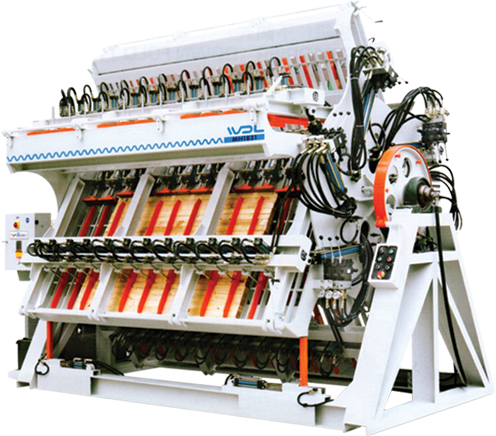

MH1831 Hydraulic Clamp Carrier ( Six sides )

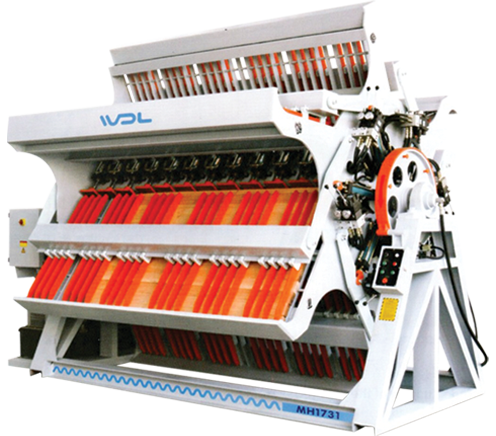

MH1731 Hydraulic Clamp Carrier ( Six sides )

MH1831 Hydraulic Clamp Carrier ( Six sides )_1

MH1731 Hydraulic Clamp Carrier ( Six sides )_2

MODEL	MH1725	MH1731	MH1825	MH1831
Max. clamping size	2500 x 1320 x 150 mm	3100 x 1320 x 150 mm	2500 x 1320 x 150 mm	3100 x 1320 x 150 mm
Main pressing oil cylinder	Ø80mm x 6pcs x 10	Ø80mm x 6pcs x 12	Ø80mm x 6pcs x 10	Ø80mm x 6pcs x 12
Side pressing oil cylinder	-	-	Ø40mm x 6pcs x 10	Ø40mm x 6pcs x 12
Side lifting oil cylinder	Ø63mm x 6pcs x 2	Ø63mm x 6pcs x 2	Ø63mm x 6pcs x 2	Ø63mm x 6pcs x 2
Brake oil cylinder	Ø40mm x 1pcs	Ø40mm x 1pcs	Ø40mm x 1pcs	Ø40mm x 1pcs
Supporting oil cylinder	-	-	Ø40mm x 2pcs	Ø40mm x 2pcs
Max. main pressure	70 t	84 t	70 t	84 t
Rotary motor power	2.2 Kw	2.2 Kw	2.2 Kw	2.2 Kw
Hydraulic motor power	7.5 Kw	7.5 Kw	7.5 Kw	7.5 Kw
Hydraulic system pressure	14 Mpa	14 Mpa	14 Mpa	14 Mpa
Overall dimensions (L x W x H)	435 x 341 x 350 cm	495 x 341 x 350 cm	460 x 360 x 365 cm	515 x 360 x 365 cm
Net weight	11000 kg	12800 kg	12000 kg	15000 Kg


