MH1362C – Hydraulic Clamp Carrier (Up-Fold Type)

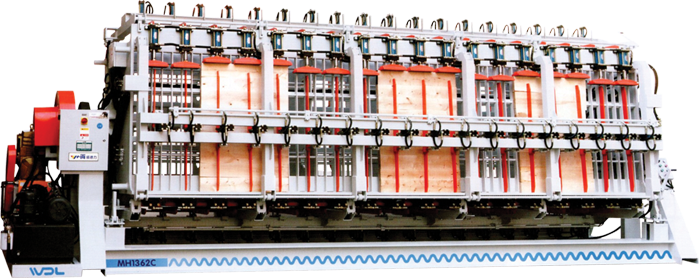

MH1362C - Hydraulic Clamp Carrier (Up-Fold Type)
  • Horizontal feeding and discharging device resists the labor exhaustion and reduce the injury
  • This machine is equipped with the hydraulic cooling device, which can avoid the hydraulic parts to damage from overload, overtop oil temperature, and long time processing
  • The hydraulic system has the function of automatically boosting which can ensure the constant working pressure

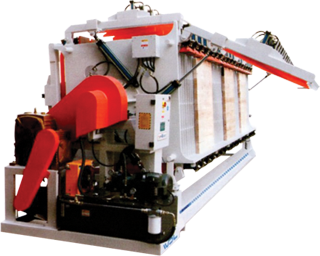

MH1362C - Hydraulic Clamp Carrier (Up-Fold Type)_1

Up folded situation of the side press frame

MH1362C - Hydraulic Clamp Carrier (Up-Fold Type)_2
MODEL
MH1325C
MH1331C
MH1350C
MH1362C
Max. clamping size
2500 x 1320 x 150mm
3100 x 1320 x 150 mm
5000 x 1320 x 150 mm
6200 x 1320 x 150 mm
Main pressing oil cylinder
Ø80 x 80mm x 8pcs x 4
Ø80 x 80mm x 9pcs x 4
Ø80 x 80mm x 16pcs x 4
Ø80 x 80mm x 18pcs x 4
Side pressing oil cylinder
Ø40 x 150mm x 8pcs x 4
Ø40 x 150mm x 9pcs x 4
Ø40 x 150mm x 16pcs x 4
Ø40 x 150mm x 18pcs x 4
Side lifting oil cylinder
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Ø63 x 550mm x 2pcs x 4
Brake oil cylinder
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Ø40 x 60mm x 1pcs
Locked oil cylinder
Ø40 x 210mm x 1pcs x 4
–
–
–
Max. main pressure
56 t
63 t
112 t
126t
Rotary drive power
2.2 Kw
2.2 Kw
2.2 Kw
4 Kw
Hydraulic motor power
7.5 Kw
7.5 Kw
7.5 Kw
7.5 Kw
Supplement motor power
1.5 Kw
1.5 Kw
1.5 Kw
1.5 Kw
Pressure of hydraulic system
14 Mpa
14 Mpa
14 Mpa
14 Mpa
Overall dimensions (L x W x H)
450 x 280 x 290 cm
510 x 280 x 290 cm
700 x 280 x 290 cm
820 x 290 x 290 cm
Net weight
7900 kg
9900 kg
13000 kg
16200 kg
