MF92 Normal Type Series – Water Spray Booth
(Panel)

Home > Product > Brand > Weili

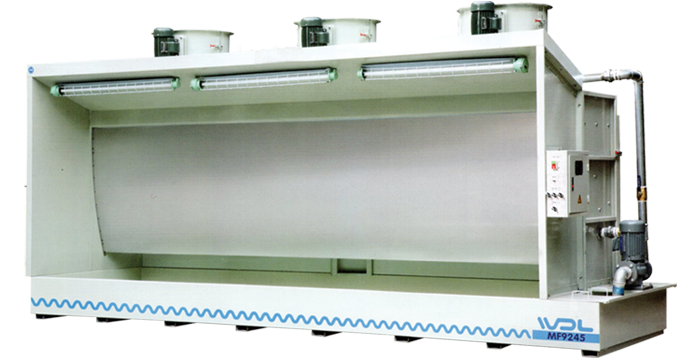

MF9245 – Water Spray Booth

MF9245 – Water Spray Booth
MF9245 – Water Spray Booth_1

1.5 kW, 2.2 kW
Motor installed outside. Aluminium fan, safe and bombing resist. Cover of blower can be opened for easy maintenance

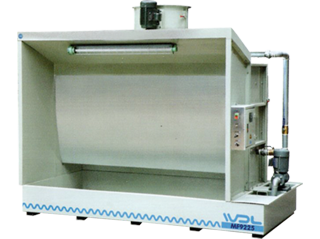

MF9225 – Water Spray Booth

MF9225 – Water Spray Booth

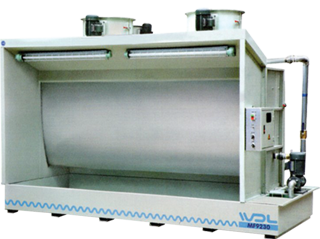

MF9230 – Water Spray Booth

MF9230 – Water Spray Booth
Normal Type

  • This machine is suitable for painting short pieces
  • It is equipped with the purifying and spraying device
  • Compact door panel has good effect on air drafting
  • Qualifier of environmental protection industry certificate
MODEL
MF9220
MF9225
MF9230
MF9235
MF9240
Water curtain width
2000 mm
2440 mm
3000 mm
3500 mm
4000 mm
Air delivery
22000 m³/h
22000 m³/h
18000 m³/h x 2
18000 m³/h x 2
18000 m³/h x 2
Fan power
2.2 kw
2.2 kw
1.5 kw x 2
1.5 kw x 2
1.5 kw x 2
Pump power
1.5 kw
1.5 kw
1.5 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
255 x 150 x 245 cm
300 x 150 x 245 cm
355 x 150 x 245 cm
405 x 150 x 245 cm
455 x 150 x 245 cm
Net weight
660 kg
680 kg
850 kg
940 kg
990 kg
MODEL
MF9245
MF9250
MF9255
MF9260
Water curtain width
4500 mm
5000 mm
5500 mm
6000 mm
Air delivery
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 4
Fan power
1.5 kw x 3
1.5 kw x 3
1.5 kw x 3
1.5 kw x 4
Pump power
2.2 kw
2.2 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
505 x 150 x 245 cm
555 x 150 x 245 cm
605 x 150 x 245 cm
655 x 150 x 245 cm
Net weight
1120 kg
1180 kg
1240 kg
1400 kg
