MF92 B Type Series – Water Spray Booth
(Panel)

Home > Product > Brand > Weili

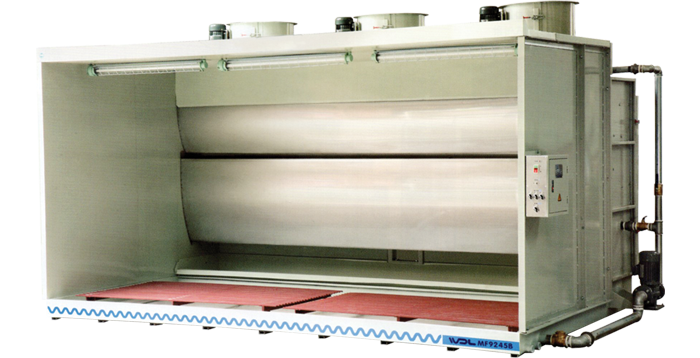

MF9245B – Water Spray Booth

MF9245B – Water Spray Booth
Type B

  • This machine is suitable for painting short pieces
  • It is equipped with the purifying and spraying devices
  • Compact door panel has good effect on air drafting
  • Qualifier of environmental protection industry certificate

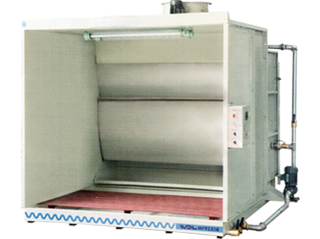

MF9225B – Water Spray Booth

MF9225B – Water Spray Booth

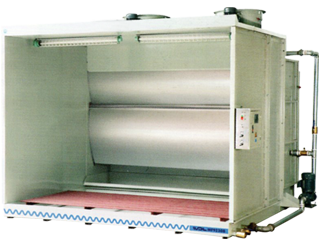

MF9230B – Water Spray Booth

MF9230B – Water Spray Booth
MODEL
MF9220B
MF9225B
MF9230B
MF9235B
MF9240B
Water curtain width
2000 mm
2440 mm
3000 mm
3500 mm
4000 mm
Air delivery
22000 m³/h
22000 m³/h
18000 m³/h x 2
18000 m³/h x 2
18000 m³/h x 2
Fan power
2.2 kw
2.2 kw
1.5 kw x 2
1.5 kw x 2
1.5 kw x 2
Pump power
1.5 kw
1.5 kw
1.5 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
250 x 270 x 275 cm
300 x 270 x 275 cm
350 x 270 x 275 cm
405 x 270 x 275 cm
455 x 270 x 275 cm
Net weight
900 kg
1050 kg
1250 kg
1440 kg
1570 kg
MODEL
MF9245B
MF9250B
MF9255B
MF9260B
Water curtain width
4500 mm
5000 mm
5500 mm
6000 mm
Air delivery
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 3
18000 m³/h x 4
Fan power
1.5 kw x 3
1.5 kw x 3
1.5 kw x 3
1.5 kw x 4
Pump power
2.2 kw
2.2 kw
2.2 kw
2.2 kw
Overall dimensions
(L x W x H)
505 x 150 x 275 cm
555 x 270 x 275 cm
605 x 270 x 275 cm
655 x 270 x 275 cm
Net weight
1750 kg
1940 kg
2130 kg
2360 kg
