Mesin Moulding dan Sanding

Kombinasi moulding sanding machine untuk 2,3, dan 4 sisi dalam satu mesin modular. Dioperasikan melalui panel kontrol. Brushing head dengan sanding strips dan wooden brush dirancang untuk mempermudah proses penggantian brush.
SL-300 5S 3 Sides

SL-300 5S 3 Sides

Product Feature

  • Roller conveyor 1,840mm long rubber rollers, working height 852mm. Conveyor speed which are variable adjustment by adjusted knob.
  • Two sets of top brushing heads with variable speed adjustment by inverter.
  • Right side brush head which can make an angle and move forward and backward.
  • Left side brush head which can make a cross movement by handle wheel.
  • Working height adjust by hand wheel.
  • The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
  • Brushing head combined cleaning brush units and abrasive cloth units. It has been designed for replacement conveniently.
  • It can be used to sand architrave and molding for 3 sides.
Download Catalog Salida SL-300 5S 3 Sides disini
SL-300 6S 4 Sides

SL-300 6S 4 Sides

Product Feature

  • The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
  • All operating controls are centralized in a convenient control panel. Large clearly identified and color coded push buttons simplify set up and start up.
  • Roller conveyor 1,840mm long with rubber rollers, working height 852mm. Conveyor speed variable adjustment by adjusted knob.
  • Two sets top brushing heads variable speed adjustment by inverter. Working height adjustment by hand wheel.
  • One set bottom brushing heads variable speed adjustment by inverter. Working height adjustment by hand wheel.
  • Side brush heads in right and left hand side on the machine. Left side is a moving brushing head adjusted work position by handle-wheel.
  • Brushing head combined cleaning brush units and abrasive cloth units. It has been designed for replacement conveniently.
  • Hold down roller frame with 6 sets spring loaded hold down roller.
Download Catalog Salida SL-300 6S 4 Sides disini
SL-300 7S 4 Sides

SL-300 7S 4 Sides

Product Feature

  • Roller conveyor 1,840mm long rubber rollers, working height 852mm. Conveyor speed which are variable adjustment by adjusted knob.
  • Two sets of top & two sets of bottom brushing heads both of them with variable speed adjustment by inverter.
  • Right side brush head which can make an angle and move forward and backward.
  • Left side brush head which can make a cross movement by handle wheel.
  • Working height adjust by hand wheel.
  • The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
  • Brushing head combined cleaning brush units and abrasive cloth units. It has been designed for replacement conveniently.
  • It can be used to sand architrave and molding for 4 sides.
Download Catalog Salida SL-300 7S 4 Sides disini

FEATURES – Moulding Sanding Machine

  • The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
  • All operating controls are centralized in a convenient control panel. Large clearly identified and color coded push buttons simplify set up and start up.
  • Roller conveyor 1,840mm long with rubber rollers, working height 852mm. Conveyor speed variable adjustment by adjusting knob.
  • Top two sets of brushing heads with variable speed adjusttment by inverter. Working height adjustment by handle wheel.
  • Left and right side brushing heads on both side. Left side brushing headin adjusted by handle wheel.
  • SL-300 7S with two more sets of bottom brushing heads variable speed adjusted by inverter. Working height adjustment by handle wheel.
  • Brushing head with sanding strips and wooden brush. It has been designed for easy replacement.
  • Hold down roller frame with spring loaded hold down roller.
  • Optional:
  • Short part kit device support shorter wood-piece at minimum 10” (254mm) length.
  • Oscillation function solves the problem for very thin sanding grain of surface of wood-piece.

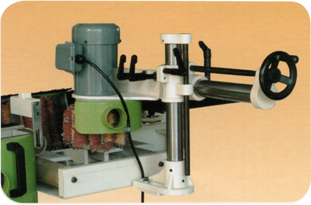

Feature 1

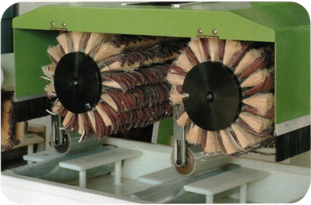

Feature 2
Feature 3
Spesifikasi Moulding Sanding Machine
Model
SL-300 5S 3 Sides
SL-300 6S 4 Sides
SL-300 7S 4 Sides
Max. Working Width
12" (300mm)
12" (300mm)
12" (300mm)
Max. Working Height
4" (100mm)
4" (100mm)
4" (100mm)
Min. Work-pieces Length
33" (840mm)
33" (840mm)
33" (840mm)
Min. Work-pieces Thickness
3/8" (9.5mm)
3/8" (9.5mm)
3/8" (9.5mm)
Feed Speed (Variable)
9-26 FPM (2.8-8,2 M/min)
9-26 FPM (2.8-8,2 M/min)
9-26 FPM (2.8-8,2 M/min)
Optional Feed Speed Adjustment
15-16 FPM
15-16 FPM
15-16 FPM
By Inverter (VFD)
(2-20 M/min)
(2-20 M/min)
(2-20 M/min)
Speed of Sanding Wheel
400 1200 RPM
400 1200 RPM
400 1200 RPM
Top Brush Head Motor
2 x 3/4 HP (0.55 KW)
2 x 3/4 HP (0.55 KW)
2 x 3/4 HP (0.55 KW)
Bottom Brush Head Motor
1 x 3/4 HP (0.55 KW)
2 x 3/4 HP (0.55 KW)
Right Brush Head Motor
1 x 1/2 HP (0.37 KW)
1 x 1/2 HP (0.37 KW)
1 x 1/2 HP (0.37 KW)
Left Brush Head Motor
1 x 1/2 HP (0.37 KW)
1 x 1/2 HP (0.37 KW)
1 x 1/2 HP (0.37 KW)
Conveyor Rollers motor
1/4 HP (0.18 KW)
1/4 HP (0.18 KW)
1/4 HP (0.18 KW)
Moving Brush Head Motor
1/3 HP (0.25 KW)
1/3 HP (0.25 KW)
1/3 HP (0.25 KW)
Machine Dimension (D x W x H)
184cm x 123cm x 155cm
224cm x 123cm x 155cm
224cm x 123cm x 155cm
Packing Dimension (D x W x H)
205cm x 101 cm x 163cm
230cm x 101cm x 164cm
230cm x 101cm x 164cm
Net Weight
340 KGS
390 KGS
420 KGS
Gross Weight
470 KGS
520 KGS
550 KGS
