Spesifikasi SS-513M / MS / T / TS /L / TL dan SS-513EM / EMS
Outstanding Feature
- Working safely, in compliance with the latest safety regulation enforced
- Hardened, ground and electronically balanced spindle in special steel guarantees the absolute absence of vibrations.
- Spindle interchangeable can collets available for use of router bits.
- Cast iron table of great solidity with ground surface
- Sliding table in cast iron glides on six adjustable ball bearings for smooth table travel for the long term.
- heavy cast iron, extruded aluminium fence assembly is fully adjustable.
SS-513 Series

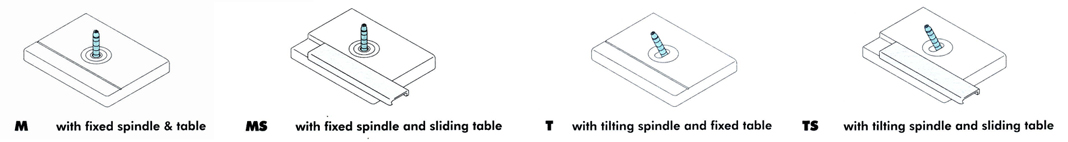

Model Available: SS-513M / MS / T / TS /L / TL
SS-513EM Series
Model Available: SS-513EM / EMS
An economical model from the heavy duty series
TC-1
Illustration shows SS-513M with TC-1
Illustration shows SS-513EMS
Spesifikasi SS-513 Series
Spindle Moulders | SS-513M / MS / T / TS / L / TL | SS-513EM / EMS (Economical model) |
|
---|---|---|---|
Dimension of working table (mm) | 1100 x 900 | 1100 x 900 |
|
Dimension of extension table (mm) | 2500 x 900 | -- |
|
Working table height (mm) | 900 |
||
Spindle vertical stroke (mm) | 180 |
||
Max. tool diameter: | below table tap (mm) | 250 |
|
above table top (mm) | 335 |
||
Spindle speed (rpm) | 3000 / 4000 / 6000 / 8000 / 10000 |
||
Rotation | forward and reverse |
||
Motor power (hp) | 5.5 / 7.5 / 10 | 5.5 / 7.5 |
|
Max. extension table support (opt. for T, TL) (mm) | 450 |
||
Sliding table dimension (MS/TS) (mm) | 1100 x 325 |
||
Working stroke of the slide (MS/TS) (mm) | 1070 |
||
Spindle tilting (T/TS) (degree) | -5 to +45 | -- |
|
2-position tenoning cariiage TC-1 (opt. for M/T) (mm) | 900 x 300 | -- |
|
Dimension of working table (mm) | |||
Working Stroke (mm) | 900 | -- |
|
Overall size (mm) | 1100 x 900 x 1350 (M/S,EM/S) 1110 x 1350 x 1350 (T/TS) |
||
Packing size (mm) | 1210 x 1170 x 1070 (M/S,EM/S) 1200 x 1400 x 1260 (T/TS) |
||
Net weight (kg) | 580(M/S) 650(T/TS) | 480 |
|
Gross weight (kg) | 700(M/MS) 770(T/S) | 600 |
SS-513 Pro Series
Model Available: SS-513M / MS / T / TS pro
- Extra large table cup Ø360 x 95 (H)
- Spindle Vertical stroke 230mm (for 90⁰)
- Rotation speed indicator
Digital read-out for spindle height and tilting degree
Illustration shows SS-513TS Pro
SS-513T Eplus Series
Model Available: SS-513T plus / T Eplus
- Tilting of the spindle from +45° to -45°
- Spindle height up & down and spindle tilting by electrical (SS-513T Eplus)
- 100 spindle height presets and 10 spindle tilting presets (SS-513T Eplus)
- Up-Front handwheels adjustable (SS-513T plus).
- Two handwheels with indicators on spindle tilting angle and height (SS-513T plus)
SS-513T plus Series
Model Available: SS-513T plus series
- Tilting of the spindle from +45° to -45°
- Up-Front Handwheels adjustable
- Two handwheels with indicators on spindle titing angle and height
- 90° Lock knob
Illustration shows SS-513T Eplus
Illustration shows SS-513T Eplus with power feeder (CE version)
Illustration shows SS-513T plus series
Spindle height up & down and spindle tilting by electrical
Two handwheels with indicators on spindle tilting angle and height
Tilting Spindle:
The tilting moulding unit can be tilted between 45 degrees and -45 degrees enabling you to take better advantage of your cutters and avoid costs of expensive and complex tools
Spesifikasi SS-513 Pro Series, SS-513T Eplus Series, dan SS-513T plus Series
Spindle Moulders | SS-513M / MS / T / TS pro | SS-513T / TS plus |
|
---|---|---|---|
Dimension of working table (mm) | 1300 x 900 | 1300 x 850 |
|
Working table height (mm) | 910 | 900 |
|
Spindle vertical stroke (mm) | 250 | 180 |
|
Max. tool diameter: | below table tap (mm) | 320 | 320 |
above table top (mm) | 360 | 360 |
|
Spindle speed (rpm) | 3000 / 4000 / 6000 / 8000 / 10000 |
||
Rotation | forward and reverse |
||
Motor power (hp) | 7.5 / 10 | 7.5 / 10 |
|
Sliding table dimension (MS/TS) (mm) | 1300 x 285 | 1300 x 325 |
|
Working stroke of the slide (MS/TS) (mm) | 1230 | 1230 |
|
Spindle tilting (T/TS) (degree) | -5 to +45 | -45 to +45 |
|
2-position tenoning cariiage TC-1 (opt. for M/T) (mm) | 900 x 300 | 900 x 300 |
|
Dimension of working table (mm) | |||
Working Stroke (mm) | 900 | 900 |
|
Overall size (mm) | 1300 x 1210 x 1300 | 1300 x 1210 x 1400 |
|
Packing size (mm) | 1460 x 1310 x 1100 | 1560 x 1310 x 1100 |
|
Net weight (kg) | 760 | 770 |
|
Gross weight (kg) | 850 | 860 |
|
