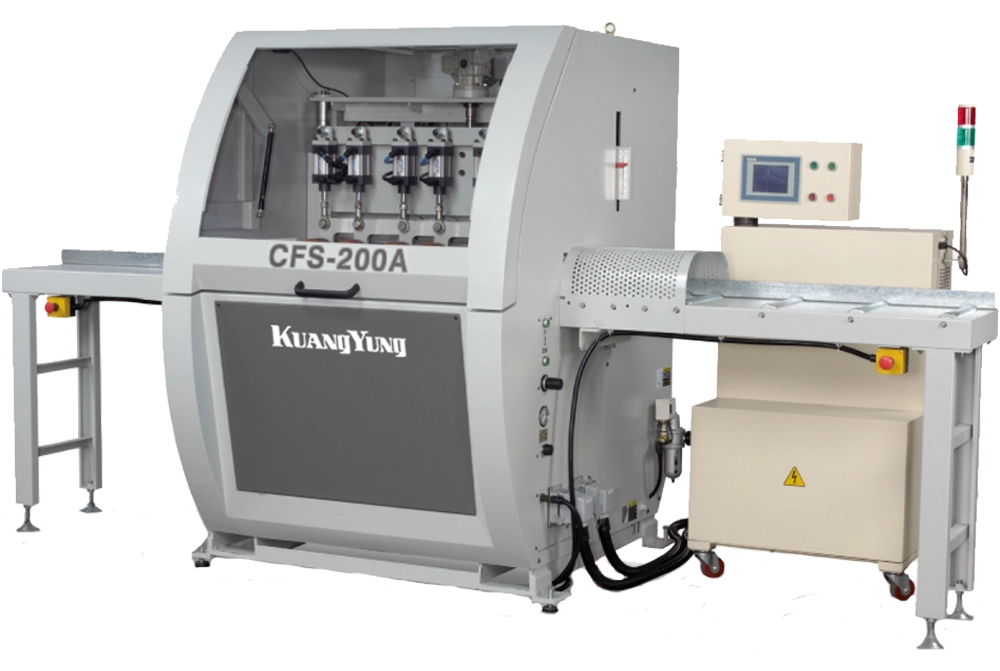

Semi Optimizing Cut Off Saw

Suitable for mass production of wood preparation or finger jointed lumber production.

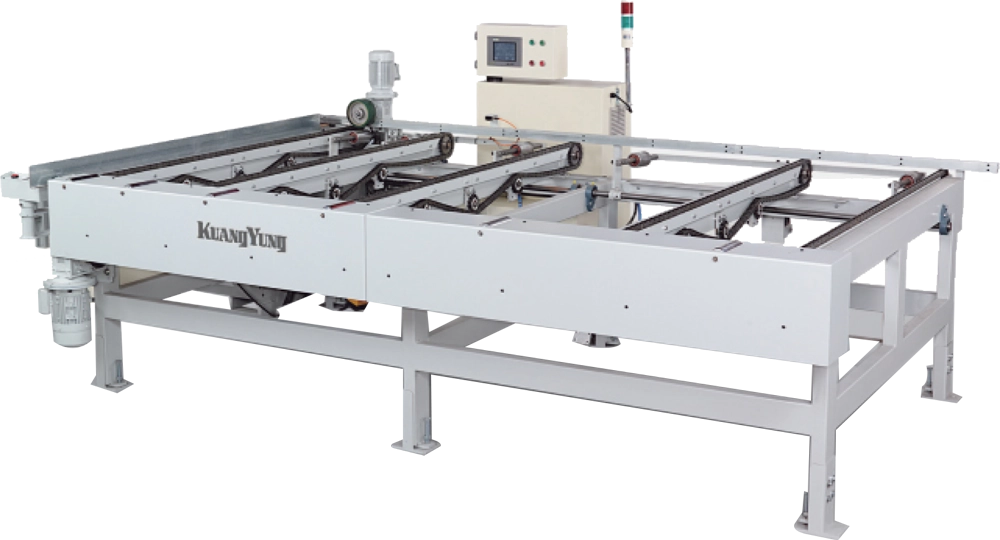

Crabwise Auto Feeding Table (Optional)

Features:

Heavy duty type semi optimizing cut-off saw
Working with the optional crabwise auto feeding table can increase productivity by 10%
Suitable for processing long or heavy lumber.
Maximum feedrate can reach up to 150 m/min.
Adopt mitsubishi servo motor and driver, providing high torque and high stability.

For thin material 2 mm (optional)

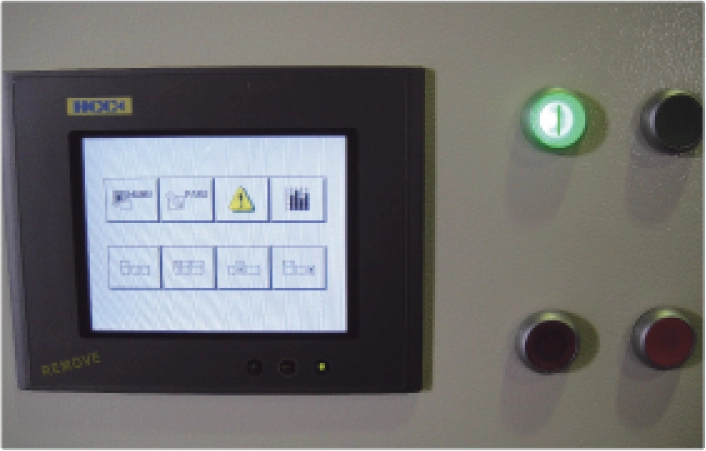

Touch screen and graphical interface. Easy for learning and opearting

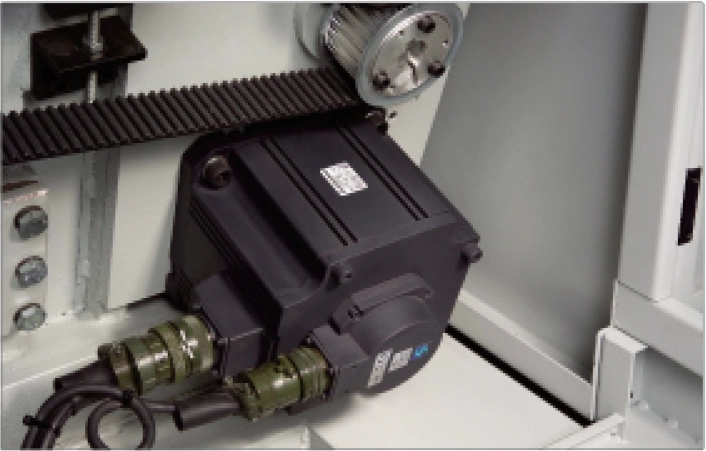

Mitsubishi high quality servo motor and driver features precise calculations and high efficiency.

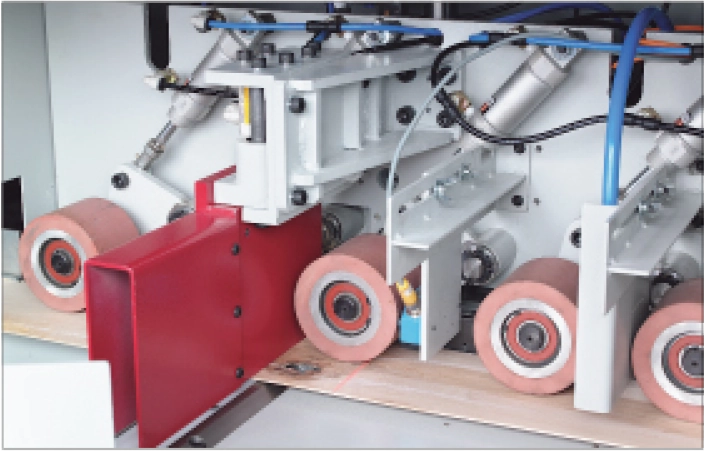

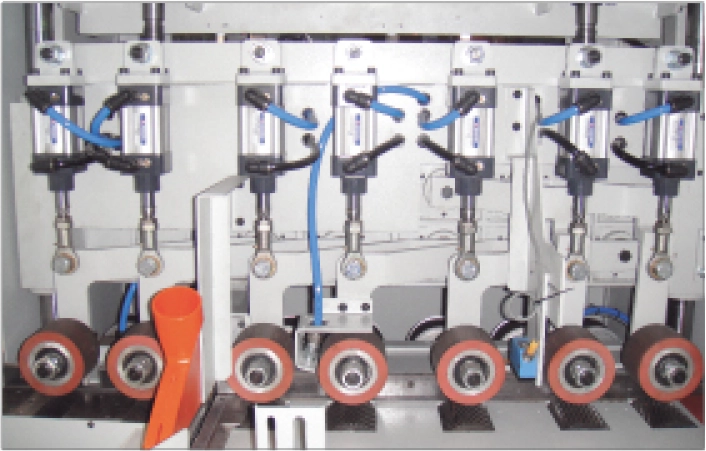

5 in feeding roller and 2 out feeding rollers ensure high stability and cutting accuracy for long or heavy lumber

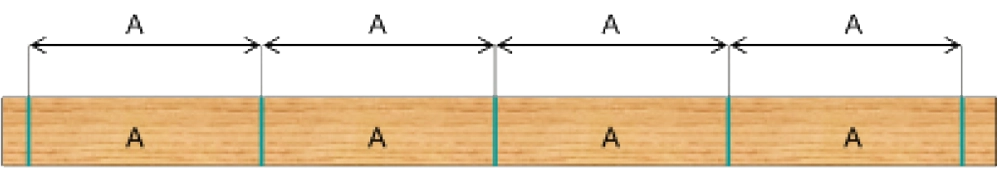

Fixed Length Cutting

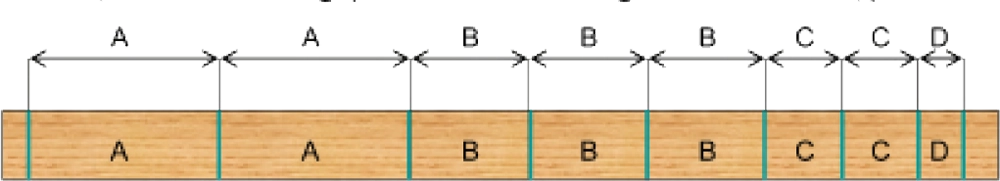

Sequential Cutting
(10 sets of cutting sizes memory)

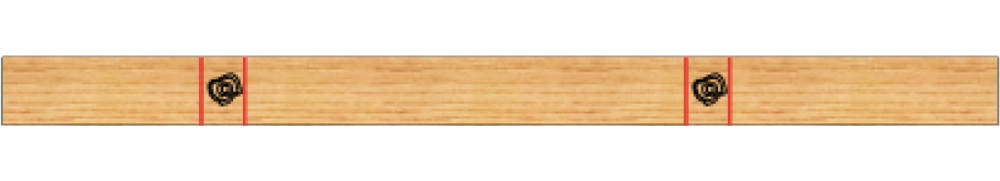

Marking Lines Cutting with Double End Trimming

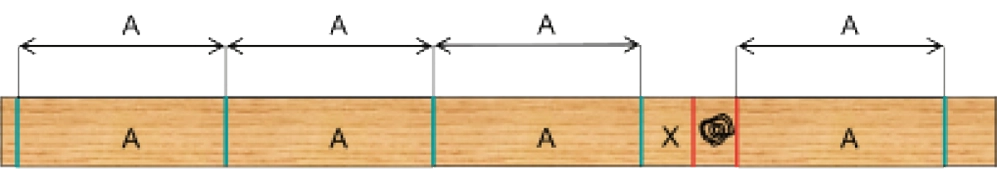

Fixed Length + Marking Lines

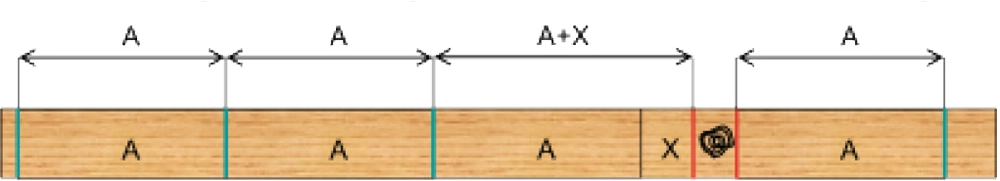

Fixed Length + Marking Lines + Optimum Residual Usage

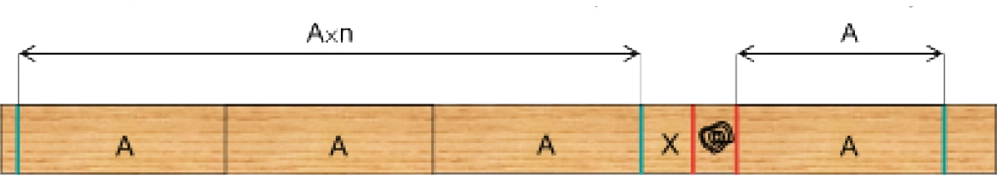

Multiple Accumulation Function

Model	CFS200A
Saw motor	10 HP
Feed motor	3.5 kW
Saw spindle speed	4000 rpm / 4100 rpm
Feedrate	150 m/min

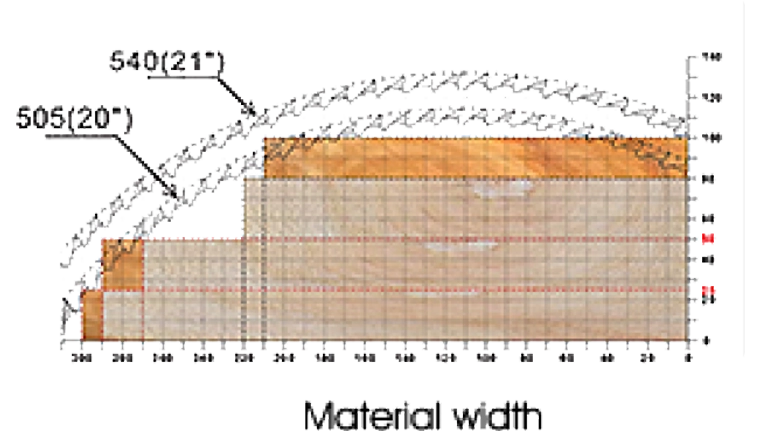

Max. circular saw diameter	540 mm
Bore of circular saw	40 mm
Bed height	900 mm
Min. cutting length	300 mm
Max. table load	40 kgs
Air compressed (consumption)	7 - 9 kg/cm² (200 m³/hr)
Diameter of dust collector inlet	⌀ 150 mm x 2 / ⌀ 100 mm x 1
Machine weight	1250 kgs

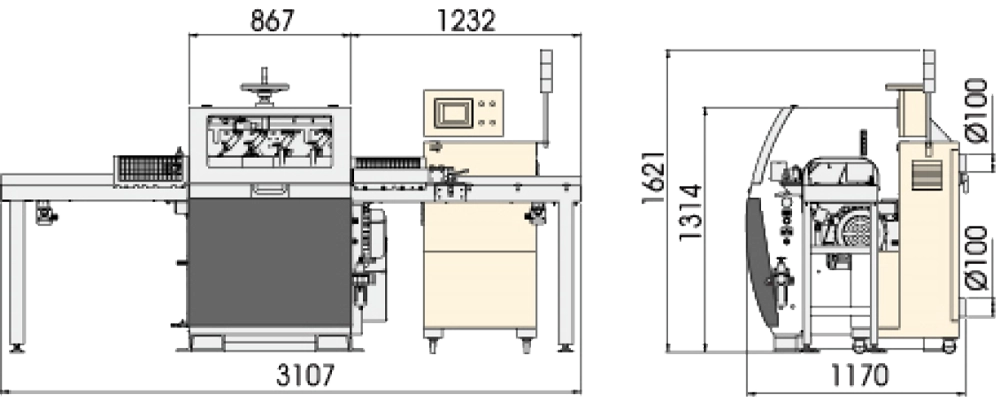

Machine dimensions	1300 x 1450 x 1460 mm (without roller table)
