Model Code Letter:
D : Disc
N : Normal
U : Cross
O : Oscillating
W : Wire
F : Fiber
E : Edge
Disc Unit (D)
Spiral Wheel (Special Request)
Straight / Normal Wheel (N)

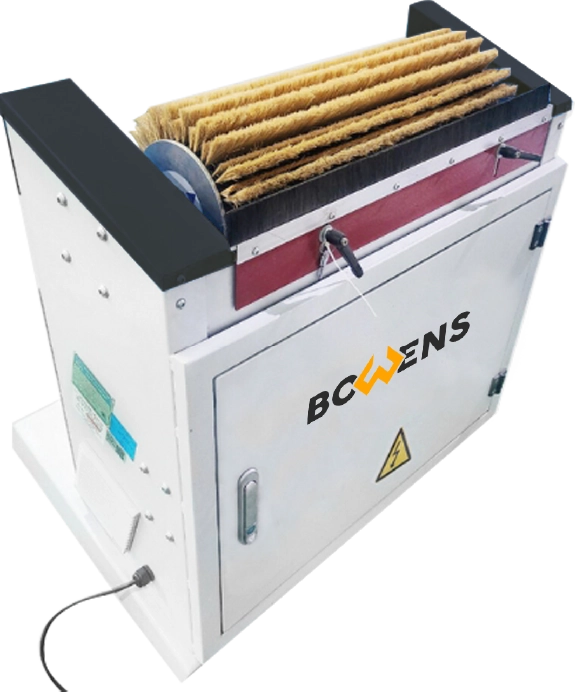

HK-BS600MA | HK-BS600M
Manual Brush Sanding Machine
Specification of Manual Brush Sanding Machine Series
| Model | HK-BS600MA | HK-BS600M |
|---|---|---|
| Operating voltage | 1 phase - 220 V +- 5%/50Hz | 1 phase - 220 V +- 5%/50Hz |
| Motor | 0.75 kW | 0.75 kW |
| Adjusting speed over inverter | 50, 520 rpm | 520 rpm |
| Maximum working width of brush sanding | 600 mm | 600 mm |
| Shaft dimension | ⌀30 mm | ⌀30 mm |
| As standart equip with brush sanding wheels | ⌀300 mm / ⌀180 mm width 600 mm | ⌀300 mm / ⌀180 mm width 600 mm |
| Dust extraction hood | ⌀100 mm | ⌀100 mm |
| Air volume / Dust extraction | 850 m3/h | 850 m3/h |
| Size machine (L x W x H) | 985 x 600 x 840 mm | 985 x 600 x 840 mm |
| Weight machine | 120 kg | 120 kg |
