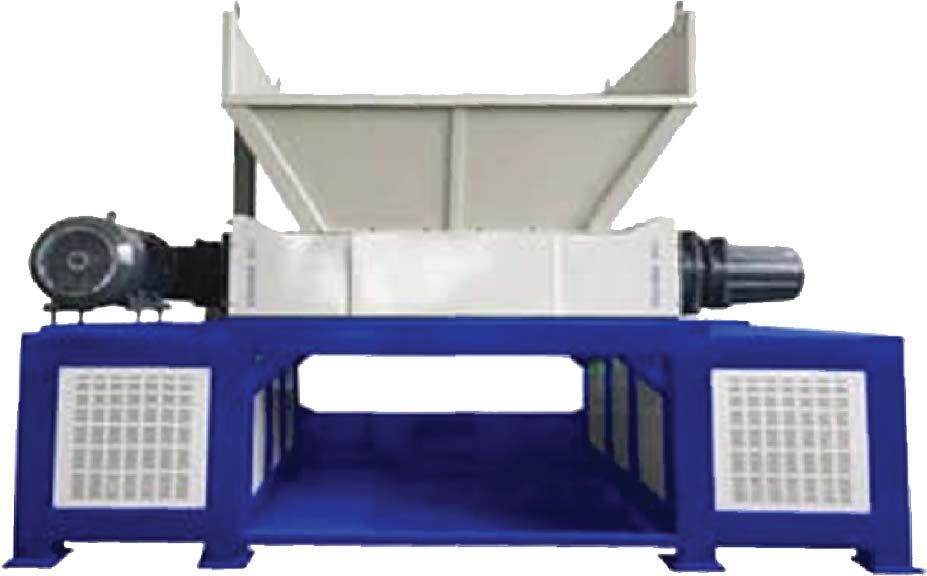

Shredder Series

Most favourable for processing palm EFB, clustered straws, wasted iron material, wasted tires, all kinds of plastic wastes, etc.
Equipped with special blade steel, specialized in processing materials with high toughness, also very durable with twice lifetime than normal blade steels.
Extremely low noise level, no dusting problem, low electricity consumption.

This machine is a non-standardized and highly customized machine. The specification table provided are for reference only

Specification LIDA Shredder Series

Model	LDSR-800	LDSR-1000	LDSR-1400	LDSR-1600	LDSR-2000
Inlet Conveyor (With inverter)
Power	2.2 kW	2.2 kW	3 kW	3 kW	4 kW
Conveyor Dimension (W x L)	600 x 6000 mm	600 x 6000 mm	600 x 8000 mm	600 x 10000 mm	800 x 10000 mm
Belt Material	Composite Nylon 4	Composite Nylon 4	Composite Nylon 4	Composite Nylon 4	Composite Nylon 5
Main Machine
Main Motor Power	22 kW x 2	30 kW x 2	45 kW x 2	55 kW x 2	75 kW x 2
Roller Teeth	6 PCs	6 PCs	8 PCs	10 PCs	12 PCs
Inlet Size	800 x 600 mm	1000 x 800 mm	1400 x 1000 mm	1600 x 1200 mm	2000 x 1600 mm
Chip Size	8-10 mm
Capacity	800-1000 kg/h	1-3 t/h	4-8 t/h	5-8 t/h	15-20 t/h
Blade Diameter	φ300 mm	φ350 mm	φ500 mm	φ550 mm	φ800 mm
Blade Thickness	10 mm
Blade Qty	40 x 2 PCs	40 x 2 PCs	50 x 2 PCs	50 x 2 PCs	60 x 2 PCs
Blade Material	M6V Blade Steel			H12 Blade Steel
Shaft Rotation	15-20 rpm				21 rpm
Shaft Material	#40 Steel, tempered with CNC Fine Processing
Shaft Diameter	φ160 mm	φ180 mm	φ220 mm	φ300 mm	φ420 mm
Gross Weight	4130 kg	5150 kg	7000 kg	10635 kg	14840 kg
Overall Dimension	3600 x 1560 x 2000 mm	3800 x 1650 x 2800 mm	4600 x 2200 x 2800 mm	5800 x 2800 x 2900 mm	7000 x 2800 x 3000
Output Conveyor
Power	3 kW	3 kW	3 kW	3.5 kW	5.5 kW
Conveyor Dimension (W x L)	600 x 8000 mm	600 x 8000 mm	600 x 10000 mm	800 x 10000 mm	1000 x 11000 mm
Belt Material	Non-slip	Non-slip	Non-slip	Non-slip	Non-slip
*Just References

The parameters shown are for reference only
