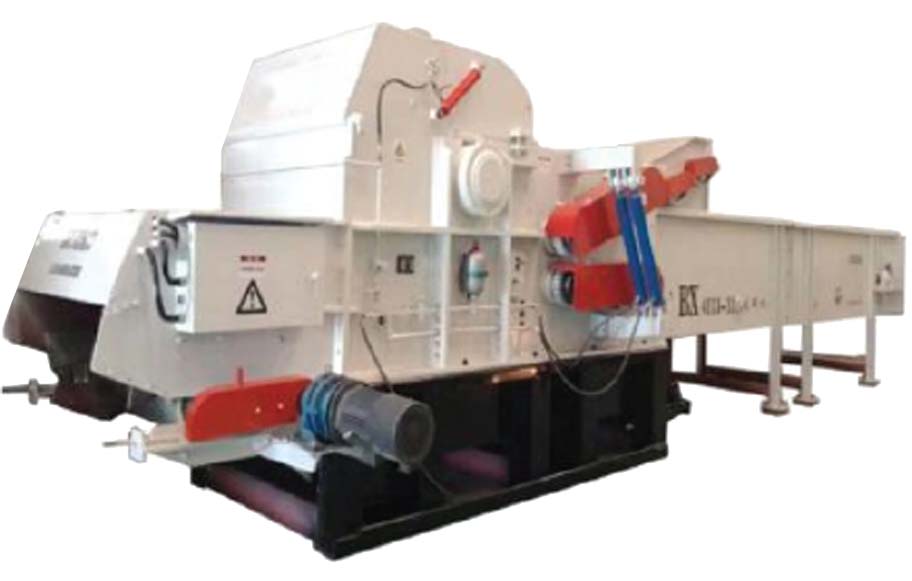

LDBX 4113
Features
- Available for all kinds of materials, including Palm Wastes (PKS, EFB), wasted veneers, all kinds of logs, coconut shell, etc.
- Equipped with special blade steel H12, specialized in processing materials with high toughness, also very durable with twice lifetime than normal blade steels, especially efficient for crushing plywood veneers.
- Able to produce wood chips with even shapes and size, 30-50 mm chips.
- Equipped with customised famous brand Type-R Harden Gear reducers to provide smooth material feeding, guarantee the overall performance Also it’s easy to operate and maintain, outstandingly durable and robust.
- Applying original imported SKF bearings and high precision processed shafts to guarantee the performance.
- Using frequency conversion speed control to control the material flow.
- Stable and high capacity is guaranteed when processing any kinds of materials, capacity 20t/h at least when processing veneers.
| Model LDBX 4113 | |||
|---|---|---|---|
| Feeding system equipment : Inlet belt conveyor | Discharging system equipment | ||
| Type | Belt | Diesel Engine | 11+7.5 kW |
| Model | BX4113 | Width | 1200 mm |
| Diesel Engine | 15+11 kW | Tape Material | 4 layers of nylon |
| Width | 1300 mm | Head Discharge Height | > 4500 mm |
| Canveying Length | 8000 mm | Conveying Length | 1100 mm |
| Speed | 33 m/min | Electrical Control | |
| Ontology System Equipment : Comprehensive Crusher | Control Box Model | QZB | |
| Overall Dimensions | 3550 mm*2300 mm*1900 mm | Electrical Remote Control | Feed start and stop, total stop |
| Knife Roll Diameter | 1300 mm | Hydraulic System | |
| Knife Roll Speed | 355 r/min | Hydraulic Tank Volume | 120L |
| Production Capacity Logs | 35-50 t/h | Hydraulic Oil Pump Motor | 4 kW |
| Inlet | 1300*4500 mm | Hydraulic Oil Pump Model | 4WE10D31B |
| Number of Flying Knives | 2*3 | ||
| Tool Material | 65 Mn | ||
| Main Diesel Engine | 450 kW | ||
| Chip Size | 30-50 mm | ||
| Gross Weight | 30000 kg | ||
|
|||
