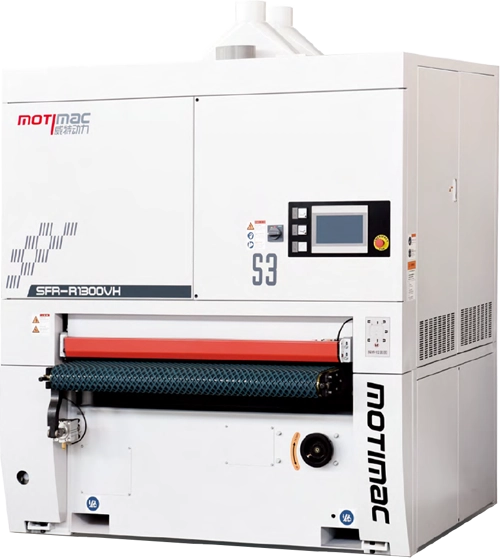

SFR-R1300VH
Lacquer Sander
Benefits
- High value at low cost:
- Wide applicability: it can be used on the sanding of paint panels based on short parts, narrow parts, plywood, MDF and other workpieces.
- The application of system standardized interface, unified platform level, facilitates information integration, facilitates the access of flexible production lines.
Realize the practicability and productivity pursued by manufacturing equipment. Get closer to your needs and be ready for the next process. The process, the dynamic balance, heat treatment, the technology of surface grinding, all of them can promise the sanding precision.
Specification Lacquer Sander
| Model | SFR-1000V | SFR-R1300VH |
|---|---|---|
| Max. working width | 1000 mm | 1300 mm |
| Min. working length | 300 mm | 260 mm |
| Work thickness | 3-100 mm | 3-100 mm |
| Feeding speed | 3-15 m/min | 3-15 m/min |
| Total power | 17 kW | 18 kW |
| Belt size | 1100 x 2100 mm | 1350 x 2620 mm |
| Motor for conveyor belt | 1.5 kW | |
| Lifting motor | 0.55 kW | |
| Working air pressure | 0.6 Mpa | |
| Air consumption | >57 m3/H | |
| Dimensions | 1750 x 2130 x 2410 mm | 2050 x 2130 x 2565 mm |
| Weight | 2800 kg | 3600 kg |
