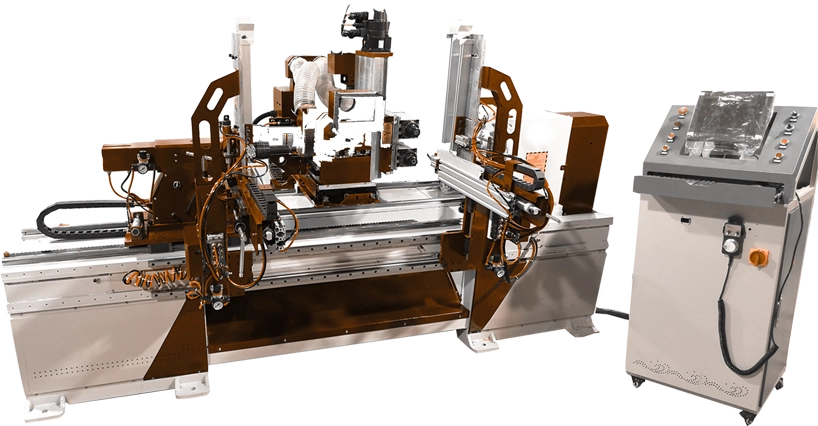

Double Turning Tools Wood Lathe 4 Axis
L623AX
Function of L623AX
Auto feeding + Wood turning + Disc Sanding + Milling + Fluting + Engraving
Drilling & Fluting
Miling
Turning

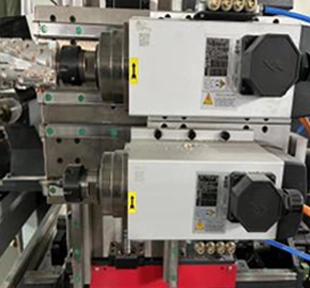

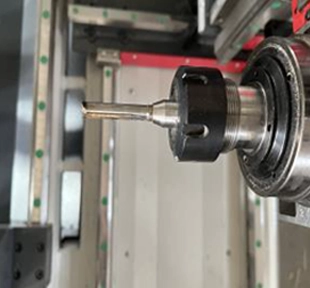

Double Carving Spindle
Machine Part List of L623AX

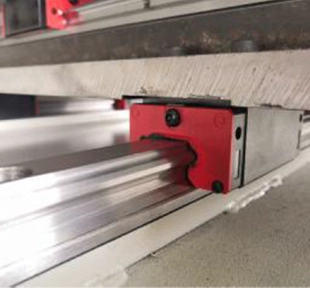

Linear guide

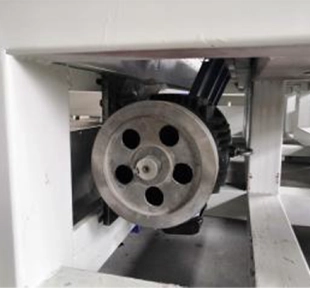

Main motor

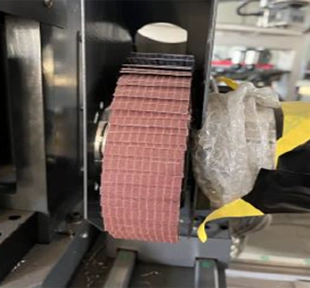

Sanding

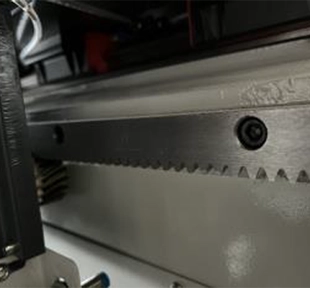

Rack

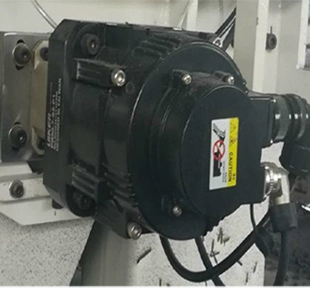

Servo motor

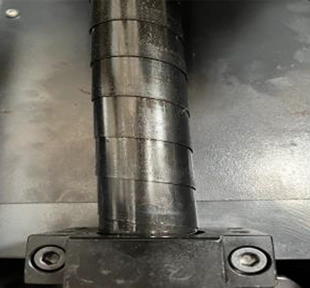

Ball screw

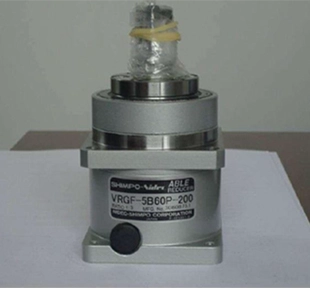

Reducer

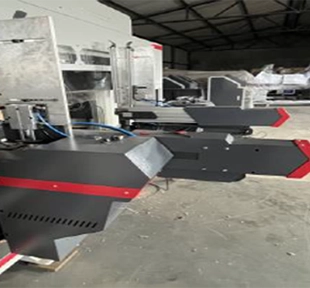

Auto feeding

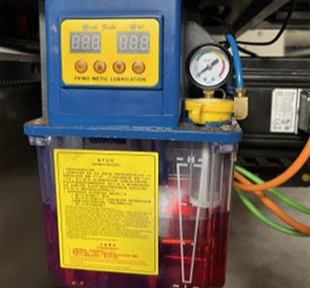

Automatic lubrication

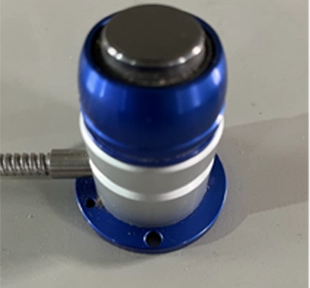

Tool setter

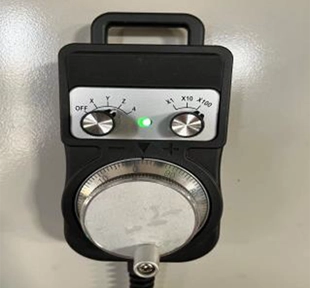

Handwheel

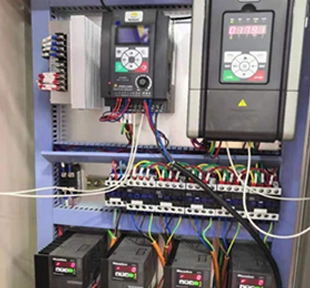

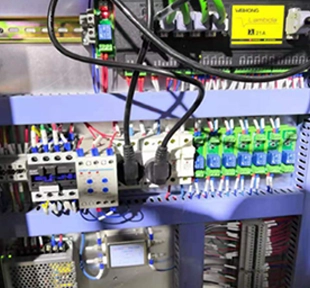

Control cabinet 1
Control cabinet 2
Specification of Double Turning Tools Wood Lathe 4 Axis
| Model | L623AX |
|---|---|
| Max auto feeding size | 1200 x 100 x 100 mm |
| Max manual loading | 1200 x 300 mm |
| Lathe body | Strong seamless steel structure, the lathe body is stabilized and will not be deformed forever |
| Outside size | 2800 x 2200 x 1800 mm |
| Spindle motor | 5.5 kW 4 pole (variable main motor) |
| Spindle | T4 milling spindle 6 kW 18000 RPM T5 fluting engraving spindle 6 kW 18000 RPM ER32 |
| Vertical milling | - |
| Disc sanding | Ø 220 mm 500 W adjustable speed of DC permanent magnet motor |
| X, Y, Z axis drive | Original servo driver |
| Dust port | Ø100 mm x 2; Auto lubrication |
| Tool setter | Automatic light-sensing tool setting instrument |

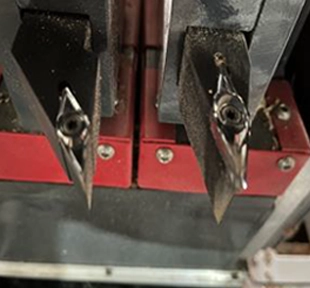

| Tools | Rough turning knife + finish turning knife |
| Linear guide | HIWIN 30 linear square rail |
| Transmission | X Gear and rack/YZ Taiwan TBI ball screw/A Gear |
| Reducer | Japan shimpo reducer |
| Inverter | Hpmont 5.5 kW Inverter |
| Certificate | CE, EAC |
