KG-1500B / KG-3000B
Knife Grinder

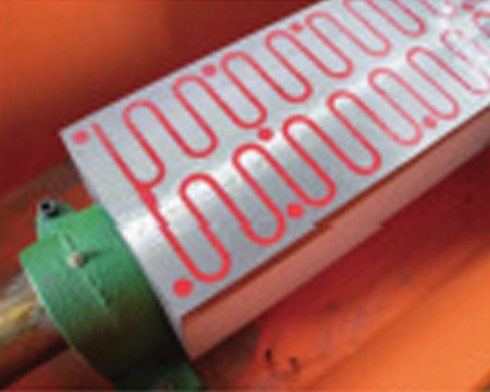

Magnetic Chuck
Special strong electromagnetic sucker, cooper coil, stable and reliable, equipped with special tools setting device

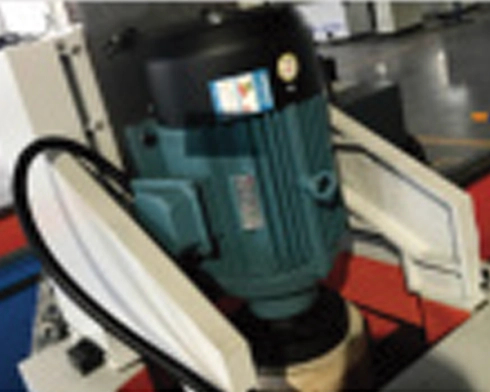

Grinding Head Motor
Special grinding head motor, good precision, high stability, good coordination, quick change grinding wheel device, easy loading and unloading.
Specification Knife Grinder
| Model | KG-1500B | KG-3000B |
|---|---|---|
| Max. grinding length | 1500 mm | 3000 mm |
| Worktable specification | 180 x 3000 mm; max. grinding: 220 mm | 180 x 3000 mm; max. grinding: 220 mm |
| Vertical travel of grinding head | 200 mm | 200 mm |
| Auro feeding depth of grinding head | 0.005 - 0.08 mm | 0.005 - 0.08 mm |
| Wheel size | 250 x 110 x ⌀100 mm | 250 x 110 x ⌀100 mm |
| Travel speed of grinding head | 1-20 m/min | 1-20 m/min |
| Coolant | external cooling / synthetic cutting fluid | external cooling / synthetic cutting fluid |
| Rotating speed of grinding head | 1400 r/min | 1400 r/min |
| Grinding motor power | 4 kW | 7.5 kW |
| Grinding head lifting motor power | 0.85 kW | 0.85 kW |
| Reciprocating motor power of grinding head | 1.1 kW | 1.1 kW |
| Cooling motor power | 0.125 kW | 0.125 kW |
| Chuck method | Electromagnetic chuck (copper coil) | Electromagnetic chuck (copper coil) |
| Overall size | 3200 x 1250 x 1750 mm | 5000 x 1250 x 1750 mm |
| Weight | 2000 kg | 3200 kg |
| Grinding angle adjustment | ± 90° | ± 90° |
