CNC Machining Center – Longmen Type Tenon & Mortise Machine

JX-SM4200-4×4

360º Arbitrary Angle Rotation Processing

A multifunctional CNC machine tool integrating multiple tenon and mortise processing. It is suitable for the processing of mortise and tenon structures on inclined surfaces and arc surfaces at any angle.

Details JX-SM4200-4x4 Bowens CNC Machining Center
JX-SM4200-4x4 Bowens CNC Machining Center

* video of the machine serves as references only

FEATURES FOR JX-SM4200-4×4

High quality and efficiency

The control system realizes high-speed interpolation, and the connection speed between the processing tracks is high-speed and stable, the processing efficiency is high, and the processing effect is good.

Graphical programming

Supports intuitive element and module processing trajectory programming to meet different types and sizes of processing requirements, easy to learn

CNC Machining Center Feature 2

Precision machining of milling cutter

CNC Machining Center Feature 1

Drilling and milling cutter precison machining

CNC Machining Center Feature 4

Spiral knife precision machining

CNC Machining Center Feature 3

Surface groove precision machining

CNC Machining Center Feature 2

Pneumatic pressing device

CNC Machining Center Feature 1

Unique chip removal device

CNC Machining Center Feature 4

Pneumatic lock switch

New Appearance

New Fixture

Standard Configuration:
1 unit machine will be complete with 8 pcs new fixture

OPTIONAL FOR JX-SM4200-4×4

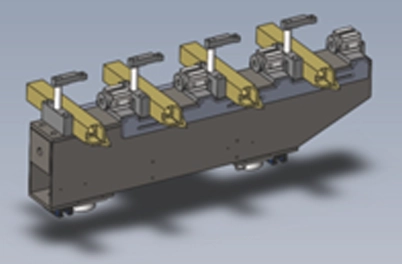

Tiger Tenon Clip Fixture

One clamping can complete the milling of two vertical faces and one end face, reducing the number of clamping.

  • Maximum clamping thickness: 120 mm.
  • Maximum clamping width: 120 mm.
  • Length: 350-550 mm.
  • Flip angle: 0°, 90°.
Rotating fixture

This fixture can clamp the material and complete the milling on two vertical planes in one clamping, reducing the number of clamping and improving the processing efficiency.

  • Maximum material thickness: 65 mm.
  • Maximum material width: 110 mm.
  • Maximum gripping length: 2400 mm.
  • Flip angle: 0° – 90°.
Round bar fixture

This fixture is suitable for the processing of tenon – and – mortise structures such as tenon grooves on the are surface of round bar workpieces. Driven by a servo motor, it can be rotated and positioned 360 degrees.

90° full servo flip JIG

The jig can be once clamped to complete two verical round table or standard square wood
Face punching, milling groove double end milling processing;

  • Clamping thickness: < 60 mm
  • Clamping width: < 100 mm
  • Length of working table: 350 mm
  • Rollover angle: -90° < rollover angle < 90°
Processed Part Display

JX-SM4200-4X4

Processed Part Display Tiger Foot Tenon Bowens JX-ST1200 Tenon Machining Center

Tiger Foot Tenon

Processed Part Display Tenon Bowens JX-ST1200 Tenon Machining Center

Tenon

Processed Part Display Sofa Leg Combination 1 Bowens JX-ST1200 Tenon Machining Center

Sofa Leg Combination

Processed Part Display Sofa Leg Combination 2 Bowens JX-ST1200 Tenon Machining Center

Sofa Leg Combination

Processed Part Display Floating Point Tenon Combination 1 Bowens JX-ST1200 Tenon Machining Center

Floating Point Tenon Combination

Processed Part Display Floating Point Tenon Combination 2 Bowens JX-ST1200 Tenon Machining Center

Floating Point Tenon Combination

Processed Part Display Triangle Point Tenon Combination 1 Bowens JX-ST1200 Tenon Machining Center

Triangle-Point Tenon Combination

Processed Part Display Triangle Point Tenon Combination 2 Bowens JX-ST1200 Tenon Machining Center

Triangle-Point Tenon Combination

Processed Part Display Concealed Hand Tenon 1 Bowens JX-ST1200 Tenon Machining Center

Concealed Hand Tenon

Processed Part Display Concealed Hand Tenon 2 Bowens JX-ST1200 Tenon Machining Center

Concealed Hand Tenon

Processed Part Display Connecting Tenon 1 Bowens JX-ST1200 Tenon Machining Center

Connecting Tenon

Processed Part Display Connecting Tenon 2 Bowens JX-ST1200 Tenon Machining Center

Connecting Tenon

Processed Part Display Raglan Tenon Bowens JX-ST1200 Tenon Machining Center

Raglan Tenon

Processed Part Display Raglan Mortise Bowens JX-ST1200 Tenon Machining Center

Raglan Mortise

Processed Part Display Raglan and Tenon Combination 1 Bowens JX-ST1200 Tenon Machining Center

Raglan and Tenon Combination

Processed Part Display Raglan and Tenon Combination 2 Bowens JX-ST1200 Tenon Machining Center

Raglan and Tenon Combination

Processed Part Display Dowel Bowens JX-ST1200 Tenon Machining Center

Dowel

Processed Part Display Dowel and Tenon Combination Bowens JX-ST1200 Tenon Machining Center

Dowel and Tenon Combination

Processed Part Display Diagonal Tenon Bowens JX-ST1200 Tenon Machining Center

Diagonal Tenon

Processed Part Display Diagonal Tenon Combination Bowens JX-ST1200 Tenon Machining Center

Diagonal Tenon Combination

Processed Part Display Round Tenon Bowens JX-ST1200 Tenon Machining Center

Round Tenon

Processed Part Display Trapezoid Tenon Bowens JX-ST1200 Tenon Machining Center

Trapezoid Tenon

Processed Part Display Square Tenon JX-ST1200 Tenon Machining Center

Square Tenon

Processed Part Display Waist Round Tenon Bowens JX-ST1200 Tenon Machining Center

Waist Round Tenon

Specification JX-SM4200-4X4
ModelJX-SM4200-4x4
X axis maximum stroke4200 mm
Y axis maximum stroke1000 mm
Z axis maximum stroke600 mm
Maximum processing width205 mm
Spindle wheelbase270 mm
Max. displacement speed of X axis40 m/min
Y axis max. displacement speed40 m/min
Max. displacement speed of Z axis20 m/min
Spindle speed5.5 kW/12000r/min
3.7 kW/18000r/min
Spindle power5.5 kW x 4
3.7 kW x 4
Spindle clamp nozzle/spindle diameter5.5 kW-Er32/⌀25
3.7kW-Er25
5.5 kW spindle tool holder installation diameter⌀2-20
Total power44.3 kW
Workpiece air pressure0.8 Mpa
Voltage380V
Weight4500 kg
Dimensions6500 x 2100 x 2600 mm
Loading and unloading size6300 x 2100 x 2600 mm
