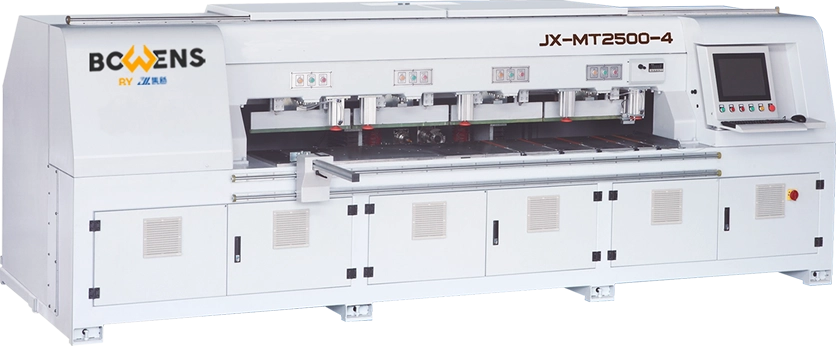

JX-MT2500-4 | JX-MT2500-5 THRESHOLD MACHINING CENTER
One Machine Molding, High Productivity
- This machine is an automatic processing of components such as cabinet door, wardrobe door, and solid wood assembly door, door sill, middle door, and door core board.
- This machine has the functions of milling edge, milling groove edge, automatic copy milling curve and drill pin hole, making boring head and 45° finger joint boring and milling head and boring.
Automatic lifting and lowering device
Alloy milling cutter precision milling
Side positioning device
- Adopting Taiwan Delta CNC, the panel is simple and clear, which is convenient for workers to operate.
- The Internal module stores a variety of solid wood door shapes; it can be processed directly after modifying the parameters in the system.
- Compatible with machining code generated by design software such as CAM, can directly import CAD files to process curves.
- Supports two processing schemes, scan code and module.

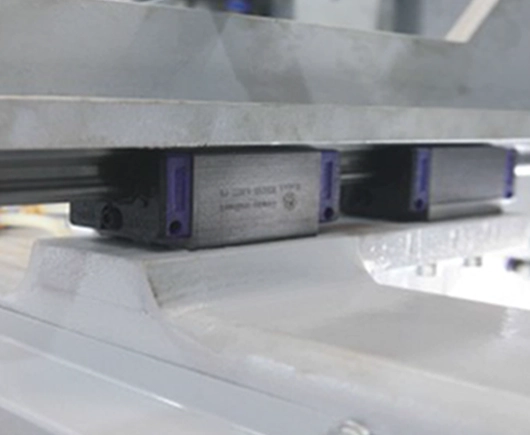

Adopting German Rost Rail and Taiwan TBI Ball Screw

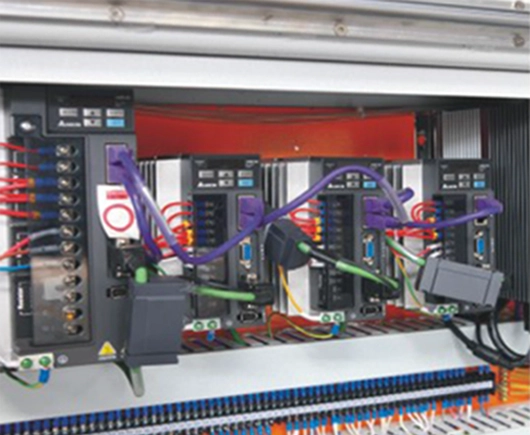

Taiwan Delta Inverter / Servo Motor

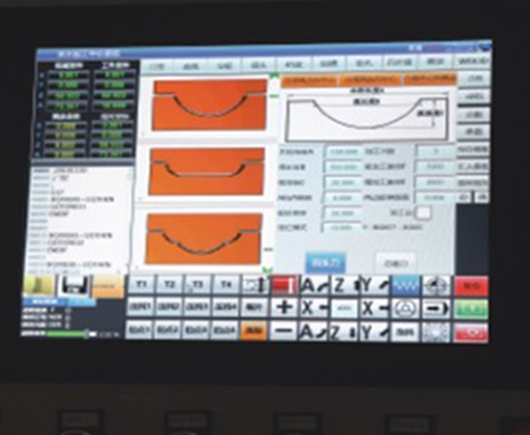

Touch Screen Control System

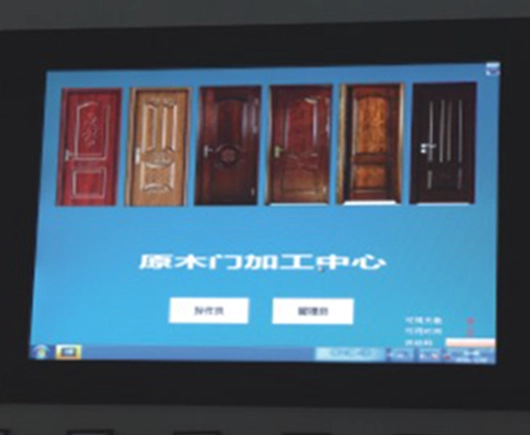

Touch Screen Control System
Specification Threshold Machining Center
| Model | JX-MT2500-4/5 |
|---|---|
| Maximum Processing Length | 2500 mm |
| Maximum Processing Thickness | 50 mm |
| Maximum Milling Depth | 100 mm |
| Maximum Cutter Outer Diameter | 180 mm |
| Milling Cutter Shaft Diameter | ⌀35 |
| Boring Shaft Diameter | ⌀30 |
| Maximum Processing Drop | 100 mm |
| Voltage | 380v / 50hz |
| Weigth | 3500 Kg |
| Milling Shaft Speed | 9000 r/min |
| Drilling Shaft Speed | 18000 r/min |
| Boring Shaft Speed | 12000 r/min |
| Milling Shaft Power | 11 kW x 2 |
| Boring Shaft Power | 5.5 kW |
| Drilling Shaft Power | 3.7 kW |
| Total Power | 36.7 kW / 40.4 kW |
| Workpiece Pressure | 0.6 - 0.8 Mpa |
| Dimensions | 4700 x 2150 x 1700 mm |
