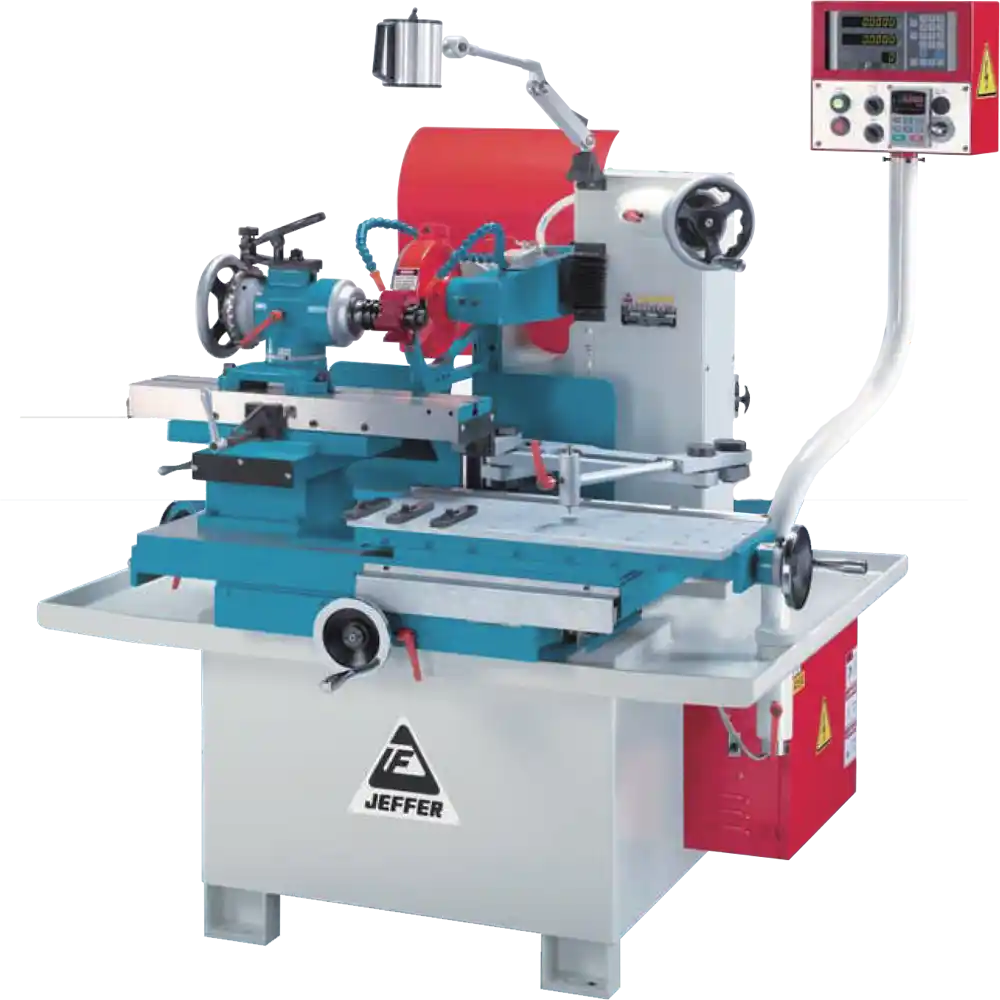

JF-G5 – Profile Grinder (5:1)

JF-G5 - Profile Grinder (5:1)
  • It grinds high efficiency woodworking NC router. To grind complex profile variety for instance combination of straight line and curve. So called formed cutters which are tipped tungsten carbide edge are used.
  • This machine grinds those cutters even by nonskilled man easily using copying mechanism. Reduction ratio 5:1. It’s suitable for using small and precise cutters.
  • By introducing “inverter”, r.p.m. of wheel spindle as infinitely variable easily attained.
JF-G5 - Profile Grinder (5-1) 1

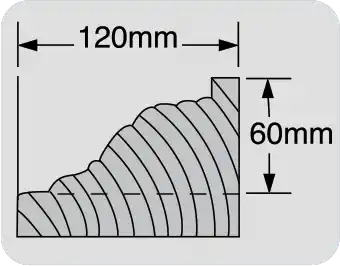

Max. range of cutting

Model
JF-G5 (5:1 Ratio)
Table working size
150 x 660 mm
Travel (longitudinal x cross x vertical)
254 x 254 x 254 mm
Min. and max. dia. of formed cutter
60 mm / 305 mm
Max. range of grinding : Max. length
120 mm
Speed of grinding wheel
3400-6800 R.P.M, variable speed (50Hz)
Grinding wheel motor
3 HP
Cooling pump
1/6 HP
Machine size (LxWxH)
1500 x 1550 x 1880 mm
Packing size (LxWxH)
1580 x 1630 x 2100 mm
Net weight
1250 kgs
Gross weight
1420 kgs
