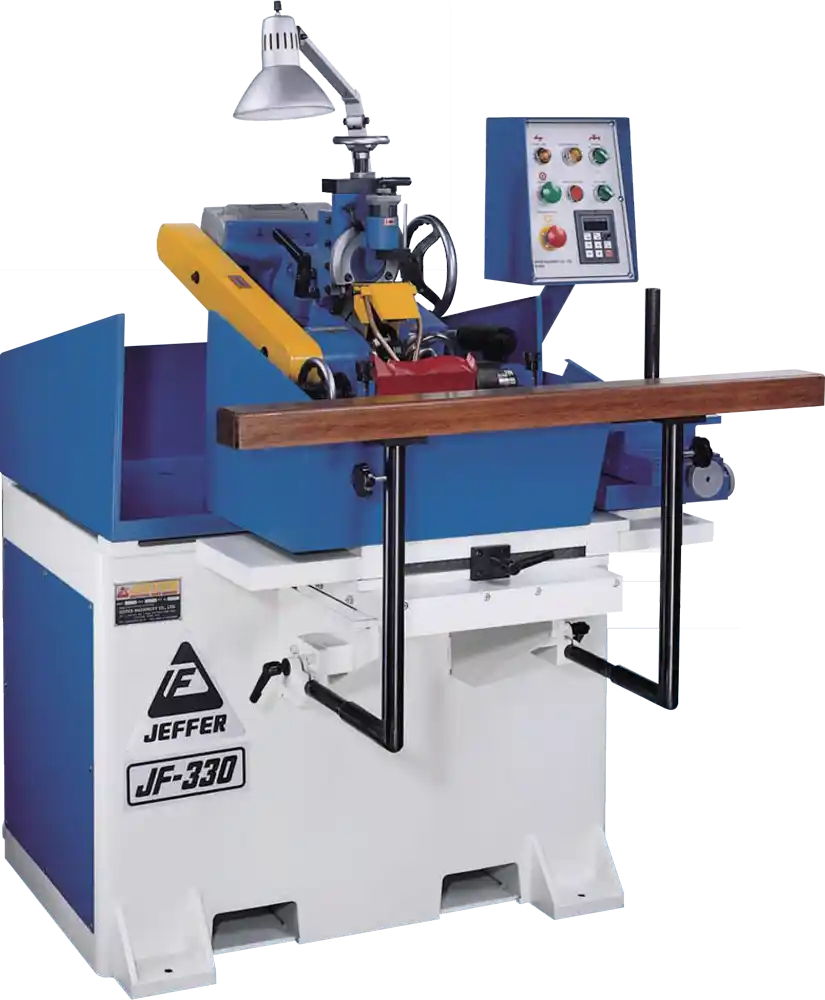

JF- 330 – Profile Grinder (1:1)

JF- 330 - Profile Grinder (1:1)

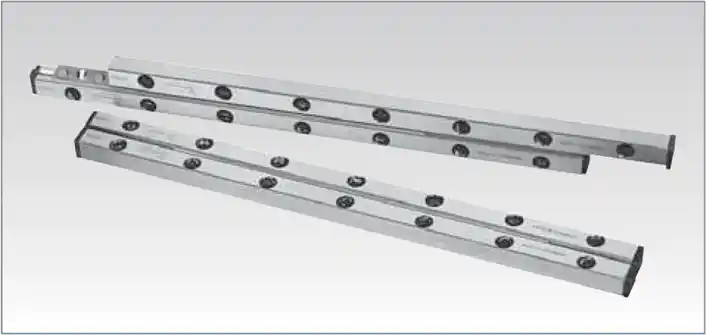

  • Work table back-front, left-right are moved with Ø9, Ø6mm linear bearing cross roller rail sets, accuracy ±0.005 mm, grinding length is up to 250 mm.
  • Grinding wheel hand is micro-adjustable and accurate, 3HP variable speed motor is powerful for grinding.
  • Knife edge angle is adjusted by dovetail arc groove, grinding center is never changed no matter what the angle is. Easy and efficient to operate.
  • Water splash guard and coolant tank are stainless steel.
JF- 330 - Profile Grinder (1-1) 1

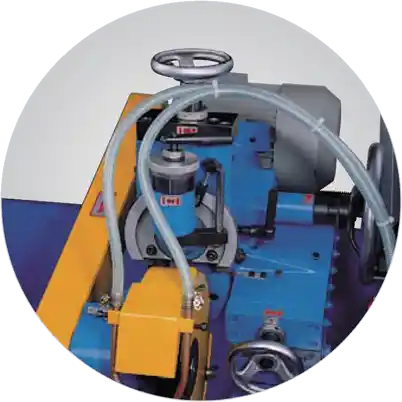

JF-330 Micro-adjustment for wheel head angle

JF- 330 - Profile Grinder (1-1) 2

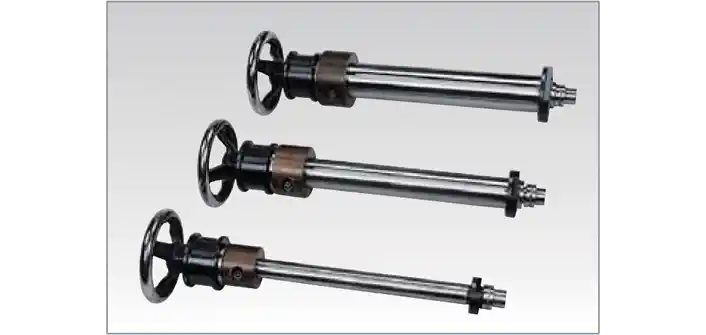

JF-330 Standard attachments: Cutter spindles of Ø1”, Ø40mm, Ø50mm each

MODEL
JF-330
Grinding capacity
Carbide cutters (dia. X w) Ø10"x10"
H.S.S. cutterhead (dia. X w) Ø10"x10"
Work table (max.)
Left-right
265mm
Back-front
110mm
Grinding wheel size (dia. X bore)
Grinding wheel size
Ø225x5xØ60mm
Speed of grinding wheel
1500-4200 R.P.M. variable speed (60Hz)
MotorGrinding wheel
3 HP
Cooling system
1/6 HP
Electric system
magnetic swicth
Machine size (LxWxH)
41"x44"x59" (1040x1120x1500mm)
Packing size (LxWxH)
48"x48"x65" (1220x1220x1650mm)
Net weight
760 kgs
Gross weight
850 kgs
