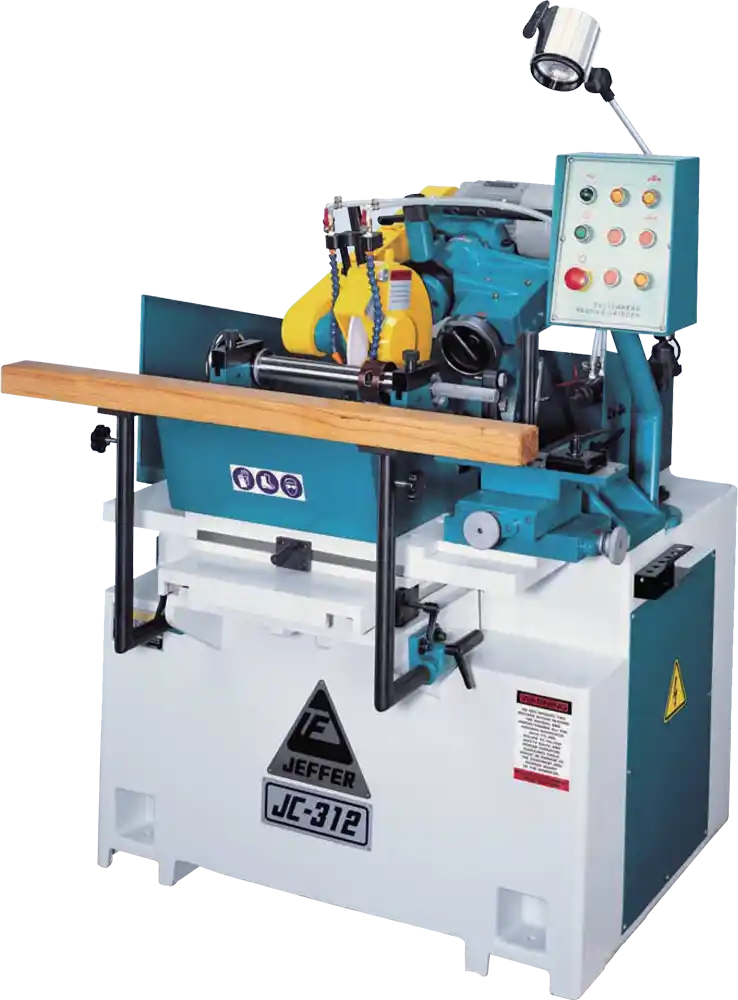

JC- 312 – Profile Grinder (1:1)

JC- 312 – Profile Grinder (1-1)
  • Work table back-front, left-right are moved with Ø9, Ø6mm linear bearing cross roller rail sets, accuracy ± 0.005mm, grinding length is up to 300mm.
  • Water splash guard and coolank tank are stainless steel.
  • Side clearance angle : 5°, 10°, and 15°.
  • Back relief angle : 13° to 30°.
JC- 312 – Profile Grinder (1-1) 1

JC-312/JF-330

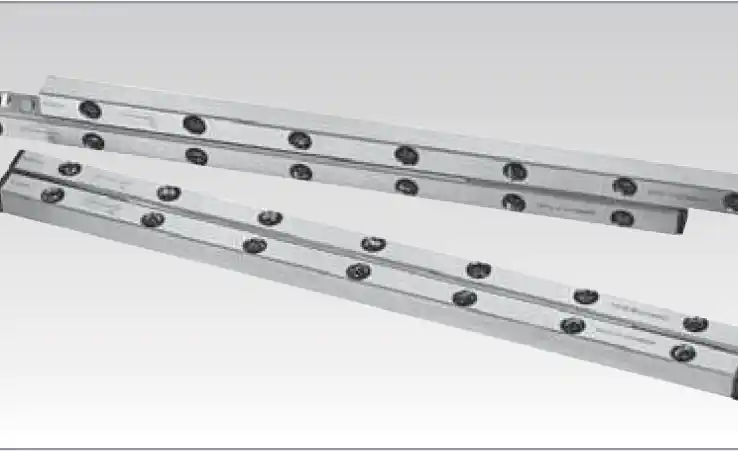

Work table with linear bearing cross

JC- 312 – Profile Grinder (1-1) 2

JC-312

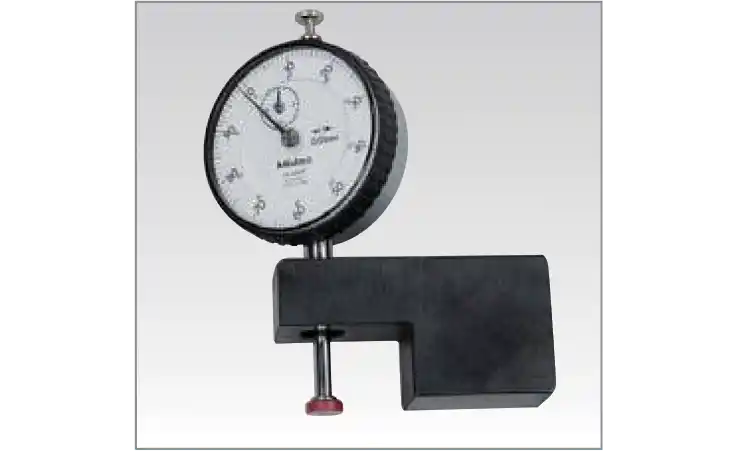

Center-gauge

JC- 312 – Profile Grinder (1-1) 3

JC-312

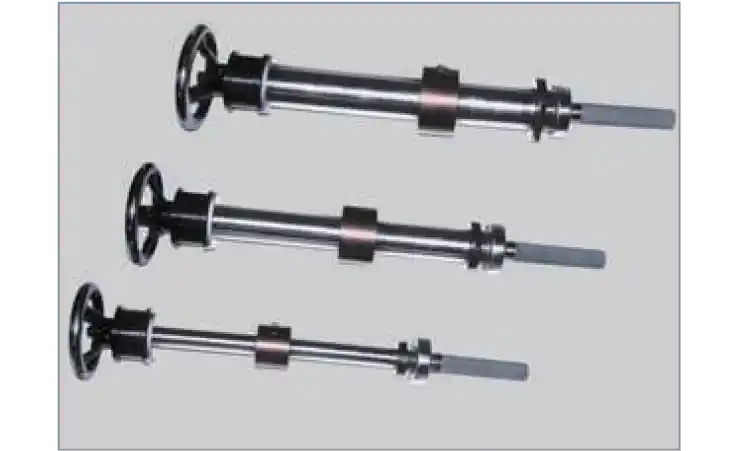

Standard attachments: Cutter spindles of Ø1”, Ø40mm, Ø50mm each

JC- 312 – Profile Grinder (1-1) 4

JC-312

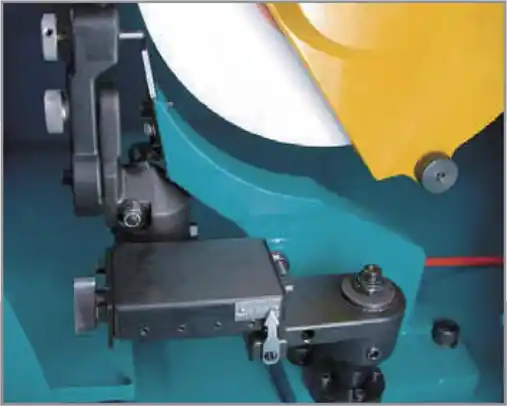

Wheel dresser
Taiwan Patent : 191291

MODEL
JC-312
Grinding capacity
H.S.S. cutterhead
(dia. X w)
Ø12"x12"
Work table (max.)
Left-right
320mm
Back-front
125mm
Grinding wheel size (dia. X bore)
Ø255x6xØ31.75mm
Ø255x(6x3)xØ31.75mm
Speed of grinding wheel
1720-2940 R.P.M. (60 Hz)
MotorGrinding wheel
2 HP
Cooling system
1/6 HP
Electric system
magnetic swicth
Machine size (LxWxH)
43"x48"x55" (1100x1220x1400 mm)
Packing size (LxWxH)
53"x53"x62" (1350x1350x1570 mm)
Net weight
910 kgs
Gross weight
1010 kgs
