Hydraulic Band Saw
YDJ-80 | YDJ-100 | PDJ-42 | PDJ-48 | PDJ-60

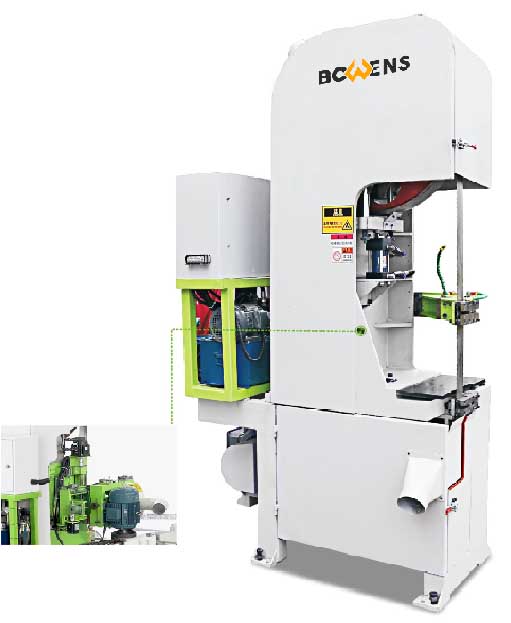

Hydraulic Band Saw
YDJ-80 | YDJ-100
Equipment Highlight
- Hydraulic system automatic lining ensures that the saw blade is constant, do not run
- Saw pin is controller by cylinder, and the adjustment is convenient and flexible
- Multi-blade saw can be added to realize simultaneous sawing in both horizontal and vertical directions, forming at on time
Spesifikasi Hydraulic Band Saw YDJ-80 | YDJ-100
| YDJ-80 | YDJ-90 | YDJ-100 | |
|---|---|---|---|
| Saw Wheel Diameter | 800 mm | 900 mm | 1000 mm |
| Maximum Sawing Diameter | 700 mm | 800 mm | 900 mm |
| Saw Wheel Speed | 650 RPM | 580 RPM | 600 RPM |
| Motor Total Power | 22 kW / 30 kW (Opt.) | 30 kW | 37 kW |
| Specification (LxWxH) | 1600x1200x2750 mm | 1700x1300x2850 mm | 1900x1100x3200 mm |

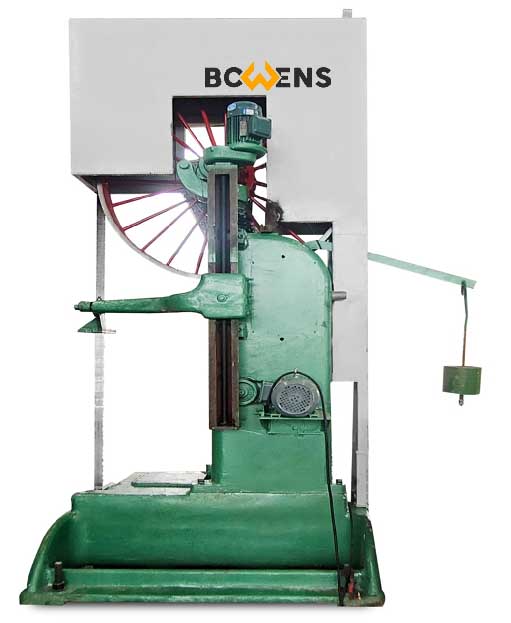

Hydraulic Band Saw
PDJ-42 | PDJ-48 | PDJ-60
Mature Technology, Do Not Run
Equipment Highlight
- Hydraulic system automatic lining ensures that the saw blade is constant, do not run
- Saw pin controlled by cylinder, and the adjustment is convenient and flexible
Spesifikasi Hydraulic Band Saw PDJ-42 | PDJ-48 | PDJ-60
| PDJ-42 | PDJ-48 | PDJ-60 | |
|---|---|---|---|
| Saw Wheel Diameter | 900 mm | 1200 mm | 1500 mm |
| Maximum Sawing Diameter | 450 mm | 1000 mm | 1800 mm |
| Saw Wheel Speed | 650 RPM | 650 RPM | 600 RPM |
| Motor Total Power | 30 kW | 37 kW | 45 kW |
| Specification (LxWxH) | 1800x1050x2900 mm | 1720x1700x3250 mm | 2200x1800x4120 mm |
