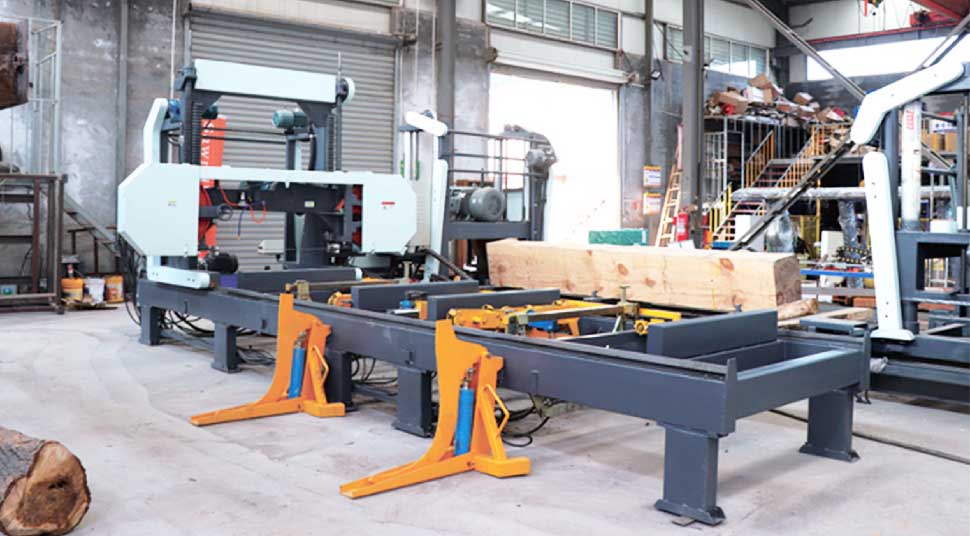

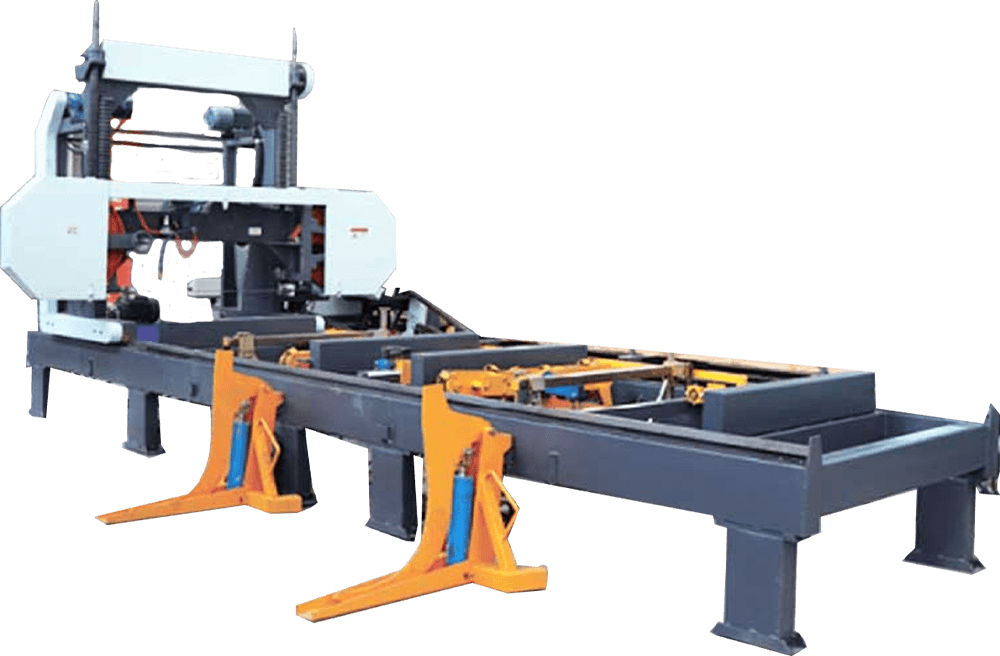

MJH700A | MJH1000A.
Hydraulic Automatic Horizontal Sawmill Series
Combined with hydraulic automation technology, the hydraulic horizontal band sawmill realizes all digital inteligent control. Chinese and English operating system, automatic wood rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate.
Standard Configuration
Touch screen sizing
Variable frequency speed adjustable foward / backward
Hydraulic chain rotation X 2
Hydraulic rotation clamping X 1
Hydraulic wood clamp X 2
Board automatic return hook
Hydraulic log stop pole X 4
Optional Hydraulic Automation Horizontal Sawmill
Hydraulic plank roller axle X 1
Hydraulic log loading arm
Specification of Hydraulic Automatic Horizontal Sawmill Series
| MODEL | MJH700A | MJH1000A | ||
|---|---|---|---|---|
| Max. Sawing Wood Diameter | 700 mm | 1000 mm | ||
| Saw Wheel Diameter | 700 mm | 700 mm | ||
| Max. Sawing Wood Thickness | 300 mm | 300 mm | ||
| Standard Sawing Wood Length | 4500 mm | 4500 mm | ||
| Electric Motor Power | 18.5 kW | 22 kW | ||
| Hydraulic Motor Power | 3 kW | 4 kW | ||
| Band saw Blade Width | 40-80 mm | 40-80 mm | ||
| Machine Length | 6000 mm | 6000 mm | ||
| Weight | 3000 kg | 3500 kg |
