HY-SJ-300 – EVA Glue Profile Piece-Together Machine

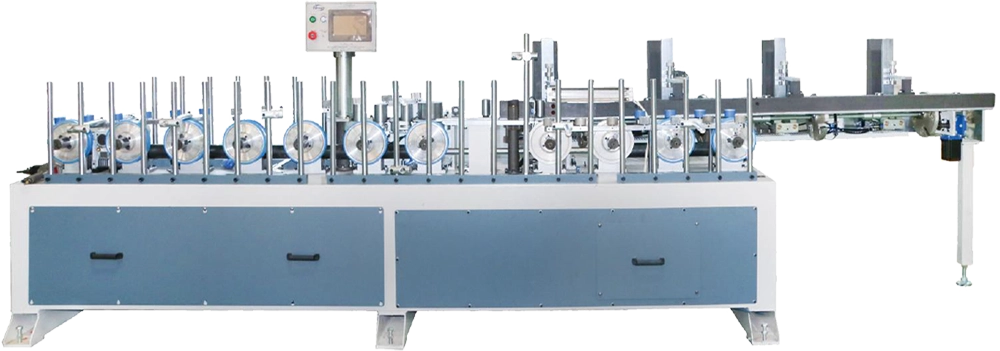

HY-SJ-300 - EVA Glue Profile Piece-Together Machine
HY-SJ-300 - EVA Glue Profile Piece-Together Machine 2

TECHNOLOGY CONFIGURATION

  1. Per heating lamp 3 pcs
  2. Hot glue applicator 1 pcs
  3. Melt box 1 pcs
  4. Auto feeder (bas lath) 1 pcs
  5. Control box (PLC touch screen) 1 pcs
  6. Sentinel plant 1 pcs
  7. Press wheel 1 set
  8. Overall dimension 4.6 M
  9. Auto-feeder (side lath) 1 set

Brief introduction
This machinery is special for making adjustable door frames for different wall widths. It makes ‘’L” shape profiles by sticking 2 laths together. Combined with auto feeder, this machine is very deal for door, picture frame manufacturers.

HY-SJ-300 - EVA Glue Profile Piece-Together Machine
HY-SJ-300 - EVA Glue Profile Piece-Together Machine 3

With auto infeeder, efficient, speediness and save manpower cost

HY-SJ-300 - EVA Glue Profile Piece-Together Machine 4
General Specification
HY-SJ-300
Width of bas lath
15-200 mm
Thickness of bas lath
5-50 mm
Thickness of side lath
2-20 mm
Height of side lath
15-80 mm
Main transmission power
1.1 Kw
Hot glue applicator
4.8 Kw
Feeding motor
0.75 Kw
Lath turning motor
0.06 Kw
Working speed
5-35 m/min
Overall dimension
4665 x 1070 x 1455 mm

PLC control, synchronic speed control with main transportation,inverter speed control

Glue melt box

Glue melt box

The regulating lever type flate round rapid adjustment

The regulating lever type flate round rapid adjustment

Hot glue applicator

Hot glue applicator
