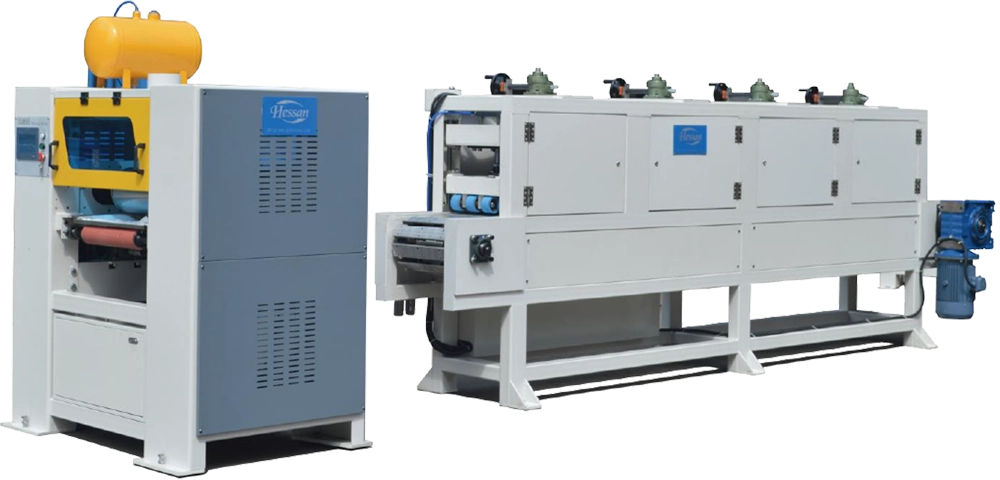

HY-PUR-500 – PUR Glue Flooring Panel Lamination

HY-PUR-500 – PUR Glue Flooring Panel Lamination
HY-PUR-500 – PUR Glue Flooring Panel Lamination 2
General Specification
HY-PUR-500
Working width
100- 500 mm
Base panel thickness
9-18 mm
Max. Base panel width
3660 mm
Top layer thickness
4-6 mm
Top layer length
2440 mm
Working speed
5-15 m/min
Transmitting power
7.74 Kw
Heating power
12 Kw
Air consuming
0.1 CBM/min
Overall dimension (LxWxH)
17.4 x 1.6 x 1.4 m
Inverter speed control
1. Basic Panel Infeeder
High speed bell conveyor with Guiding
Driving motor
0.75 Kw
Pneumatic pusher
2. Dust Cleaner
Brushing power
0.37 Kw
Brushing
Ø140 x 350, Sisal
Manual thickness adjustment
3. Oven
IR lamp heating
Power
6 Kw
Auto switch (sensor against materials)
4. Glue Spreader
Silicon rubber roller
0,75 Kw x 2
Lifting motor
0.37 Kw
Dosing roller
0.37 Kw
Heating power
3Kw x 2 (Oil heating)
Coating roller
Ø240 x 500, Silicon
Bottom roller
Ø240 x 500, Silicon
Dosing roller
Ø216 x 500, Chrome
Electrical thickness adjustment
Manual glue amount control
5. Veneer Infeeding Table
Manual infeeding with guiding board
Driving power
0,75 Kw
6. Pressing Unit
Chain transmitting, Driving power
4 Kw
Manual thickness control
Pneumatic pressure
4 sections
First section pressing roller
rubber with 40°
Other 3 sections pressing roller
Aluminium
7. Outfeeding conveyor
3m without power
Hot Melt Tank
PUR Hot melt
Working capability
27 Kg/hour
Application pine
2 pcs
Size
560 x 340 x 635 mm
Weight
210 Kg
Main power
7.8 Kw
Working voltage
380 V 50/60 Hz
Air Compressor
< 8.0 Kg/cm²
Motor rotating speed
0.5 - 60/min
