HY-PUR-1400D

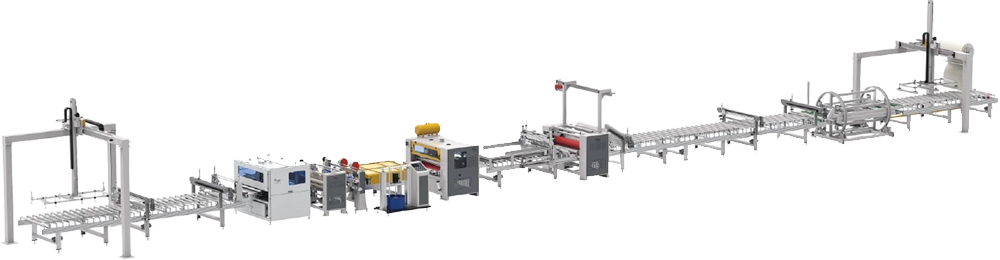

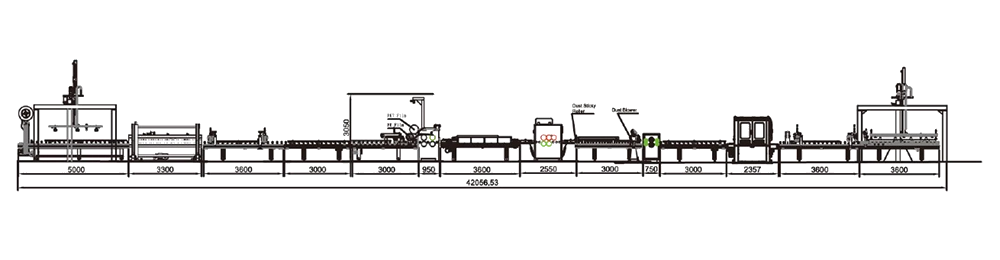

Fully Automatic High-Gloss Flat Lamination Production Line
- Auto loading machine + conveyor 3.6 m
- Panel edger + conveyor 3.6 m
- Sanding machine
- Conveyor
- Double side roller brush dust cleaner
- Conveyor + Oven + Belt brush dust cleaner + Dust blower + Dust sticky roller
- PUR Glue coating machine
- Sheet feeding table (manually)
- Film and sheet laminating machine + Film lading crane
- Conveyor + Film long edge trimming + Tracking film cutting + Protective film device
- Speed up conveyor
- Film short edge auto cutting
- Panel turn over machine
- Auto unloading machine + Auto laying peal cotton + 5 m conveyor
- 55 Gallon melt tank
Specification HY-PUR-1400D
| Model | HY-PUR-1400D |
|---|---|
| Total power | 158 kW |
| Installation area | 47 x 6 x 5.5 m |
| Line speed | 10 m/min |
| Capacity | 800 - 1200 pcs/day |
