CNC Plane 5 Axis Machining Center (Automatic Tool Change)

*All images are for reference only. The actual appearance shall prevail.

Vacuum worktable dimension : 1530 x 2440 mm; Quantity : 1 pcs; Actual processed product dimension : 1220 x 2440 mm.
Exercise schedule:
– X-axis travel : 1530 mm
– Y-axis travel : 2440 mm
– Z-axis travel : 490 mm
– B-axis travel : ± 120°
– C-axis travel : ± 360°

Integrates sawing, planing, drilling and milling functions into one, and can realize five axis linkage processing on the flat workbench.
The saw shaft can cut at any angle of 0-90° vertically and horizontally.
Equipped with eight station tool magazine.

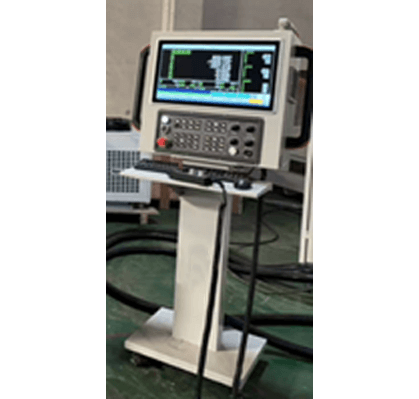

CNC System

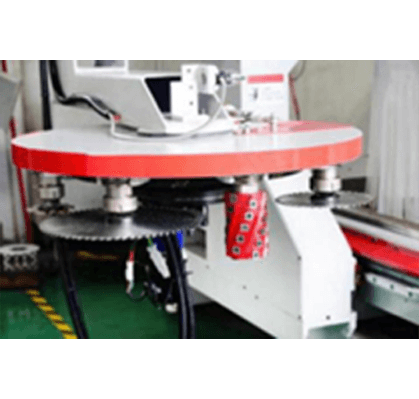

Automatic Tool Changer Spindle

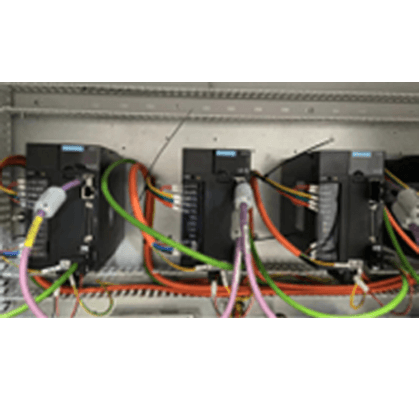

Servo Motor

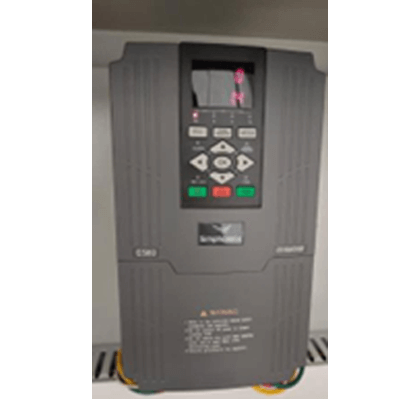

Converter

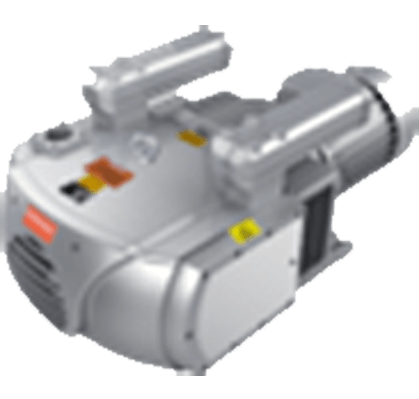

Vacuum Pump

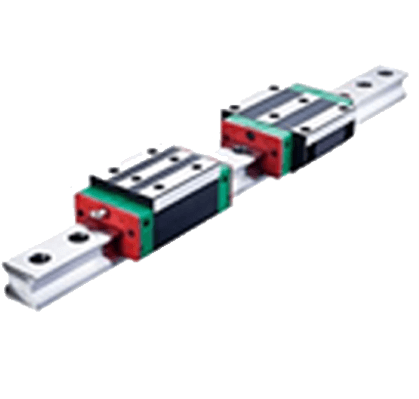

Transmission

Drive

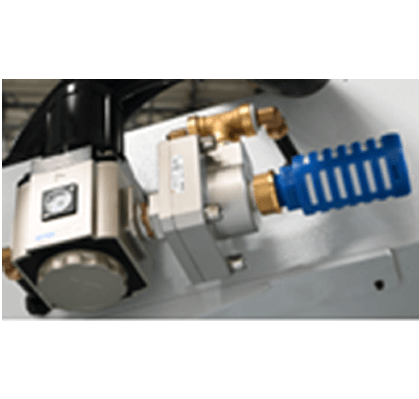

Pneumatic

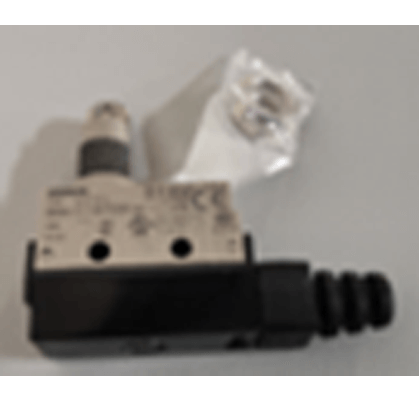

Limit Switch

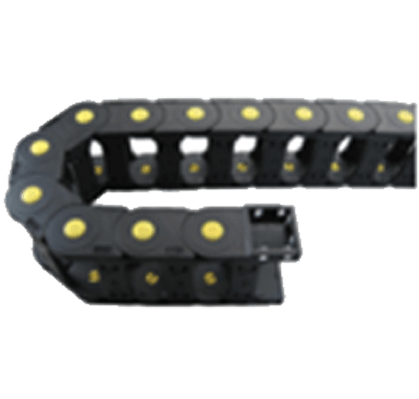

Engineering Cable Chains

Model	HW-5 Axix-1525-ATC1
Maximum movement speed	X-axis speed : 40 m/min Y-axis speed : 40 m/min Z-axis speed : 20 m/min
Installed power input	26.5 kW
Standard operating voltage	380 V x 3 P
Power supply	AC 380 V / 50 Hz
Compressed air pressure	6 bar
Machine net dimension	3800 x 2900 x 3000 mm
The net dimension of the electrical control box	1200 x 700 x 1420 mm
Total weight of the machine approximately	4100 kg
Machining spindle
Spindle quantity	1
Motor power	12.0 kW
Number of handles	8
Servo Motor
X-axis	1.5 kW
Y-axis	1.5 kW + reducer
Z-axis	1.5 kW
C-axis	1.0 kW
B-axis	1.0 kW
P-axis	400 W
Vacuum pump
Power	7.5 kW
Vacuum flow rate	250m³/h
Transmission
X-axis, Y-axis, Z-axis	Precision linear
Drive Metod
X-axis, Y-axis, Z-axis	Precision ball screw
