*All images are for reference only. The actual appearance shall prevail.

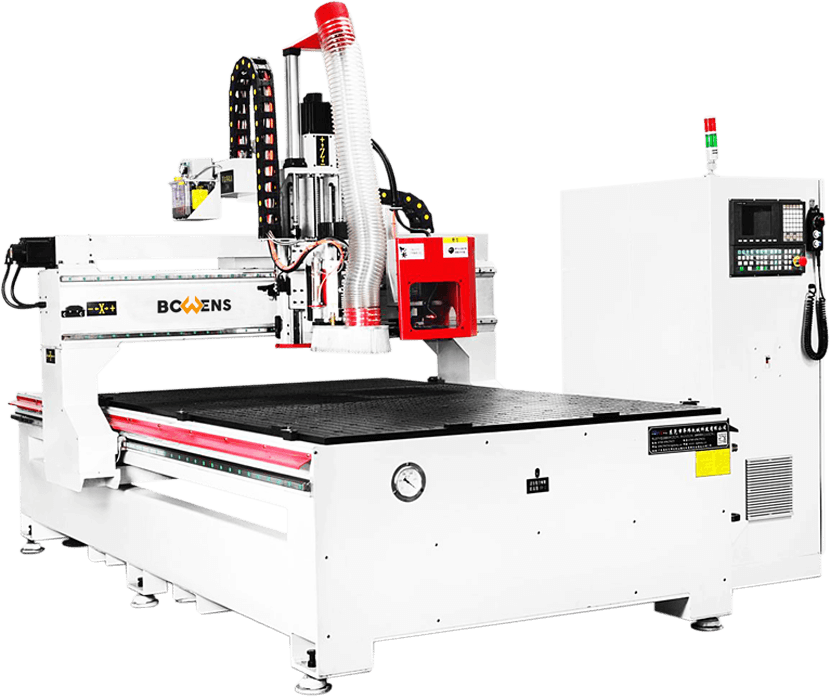

HW-1530-ATC1
CNC Single Head Machining Center
- Vacuum worktable dimension : 1530 x 3050 mm; Quantity : 1 pcs
- Execise schedule:
– X-axis travel : 1530 mm
– Y-axis travel : 3050 mm
– Z-axis travel : 200 mm

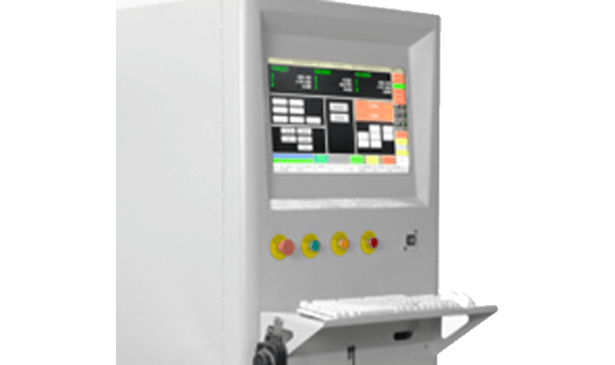

CNC System

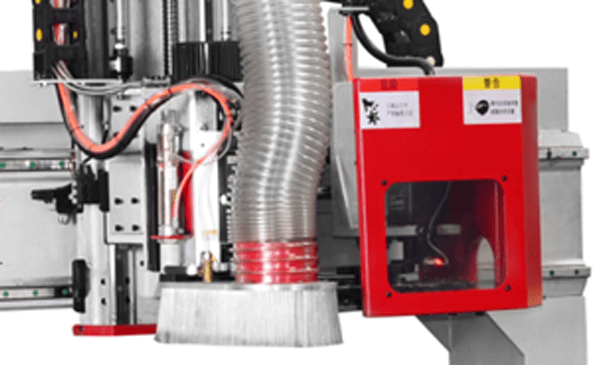

Automatic Tool Changer Spindle

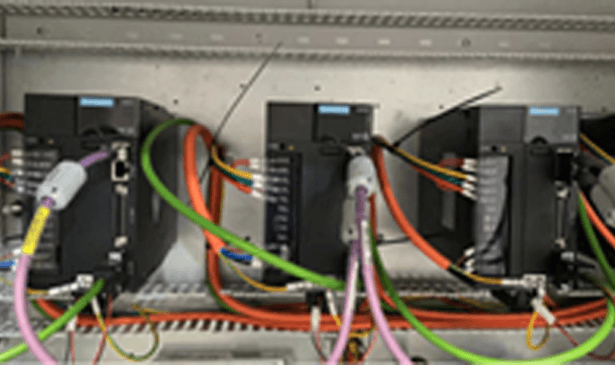

Servo Motor

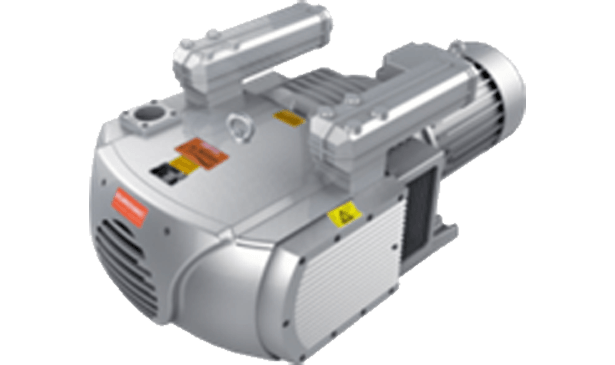

Vacuum Pump

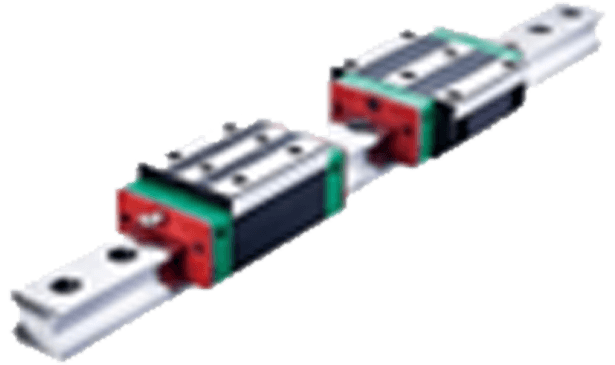

Transmission

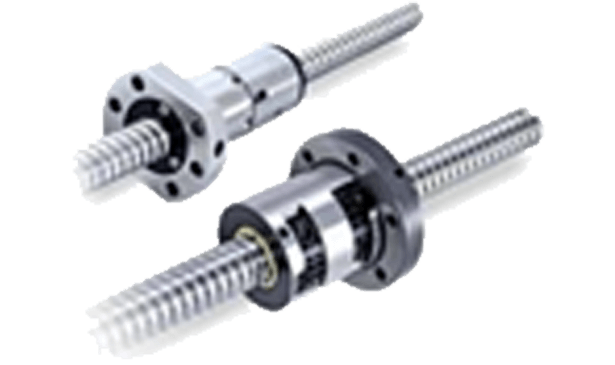

Drive

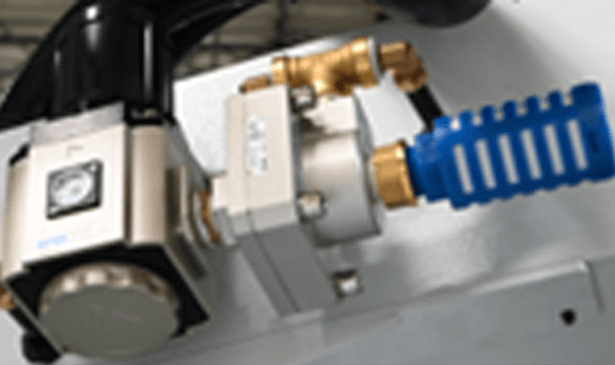

Pneumatic
Flexible Cable

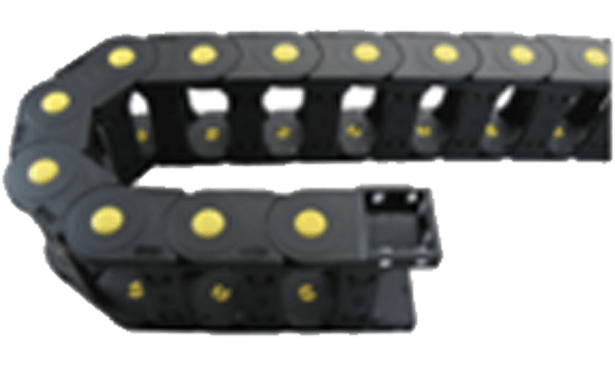

Engineering Cable Chains

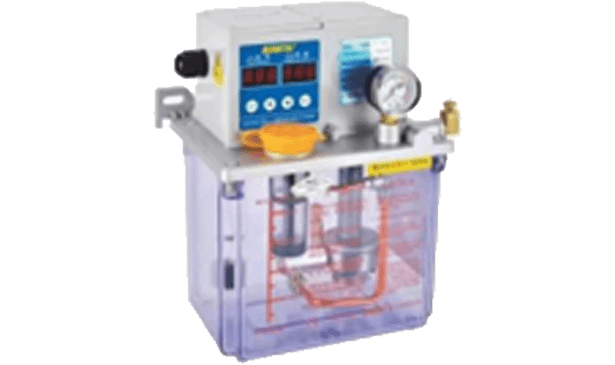

Proton Fully Automatic Oiler
Specification CNC Single Head Machining Center
| Model | HW-1530-ATC1 |
|---|---|
| Maximum movement speed | X-axis speed : 40 m/min Y-axis speed : 40 m/min Z-axis speed : 15 m/min |
| Installed power input | 21.5 kW |
| Standard operating voltage | 380 V x 3 P |
| Power supply | AC 380 V / 50 Hz |
| Frequency converter | 9.0 kW |

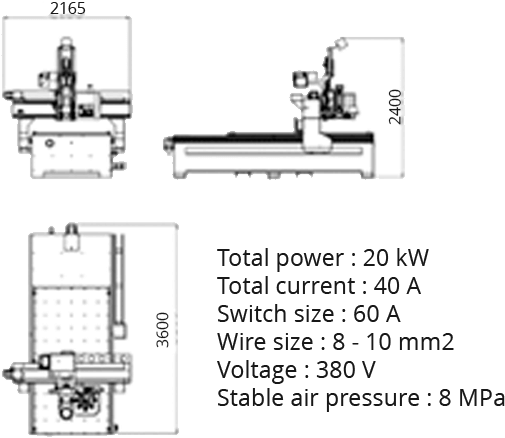

| Machine dimensions | 4100 x 2200 x 2400 mm |
| Machine weight | 3000 kg |
| Machine spindle | |
| Spindle quantity | 1 |
| Motor power | 9.0 kW |
| Number of blades | 8 |
| Servo Motor | |
| X-axis | 1.5 kW |
| Y-axis | 2.0 kW + reducer |
| Z-axis | 1.5 kW |
| Vacuum pump | |
| Power | 7.5 kW |
| Vacuum flow rate | 250 m³/h |
| Quantity | 1 unit |
| Transmission | |
| X-axis | Precision linear guide |
| Y-axis | Precision linear guide |
| Z-axis | Precision linear guide |
| Drive | |
| X-axis | Precision ball screw 32 - 32 |
| Y-axis | Precision ball screw 50 - 50 |
| Z-axis | Precision ball screw 32 - 10 |
