*Machine picture shown is reference only

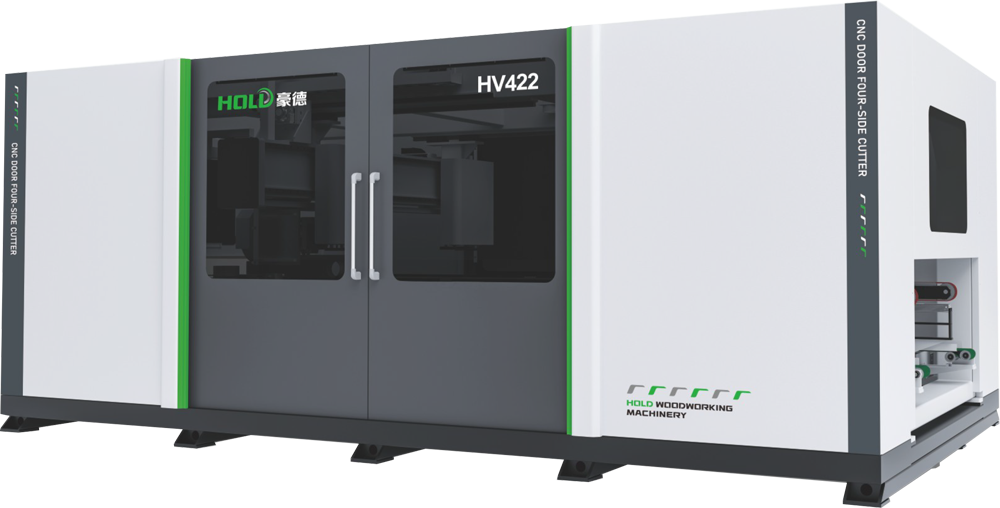

HV422
CNC Door 4 Sided Cutter Machine
Specification HV422 CNC Door 4 Sided Cutter Machine
| Model | HV422 |
|---|---|
| Min. processing size | 4800 x 400 mm |
| Max. processing size | 3000 x 1100 mm |
| Processing thickness | 30 - 65 mm |
| Main saw blade specification | Φ 30 x 300 mm |
| Scoring saw blade specification | Φ 20 x 120 mm |
| Max. moving speed of saw carriage | 40 m/min |
| Table height | 900 mm |
| Quantity of suction port | Φ 100 x 6 |
| Total power | 37. 5 kW |
| Machine dimension | 5100 x 2980 x 2100 mm |
Discover More CNC Door 4 Sided Cutter Machine
*Machine picture shown is reference only

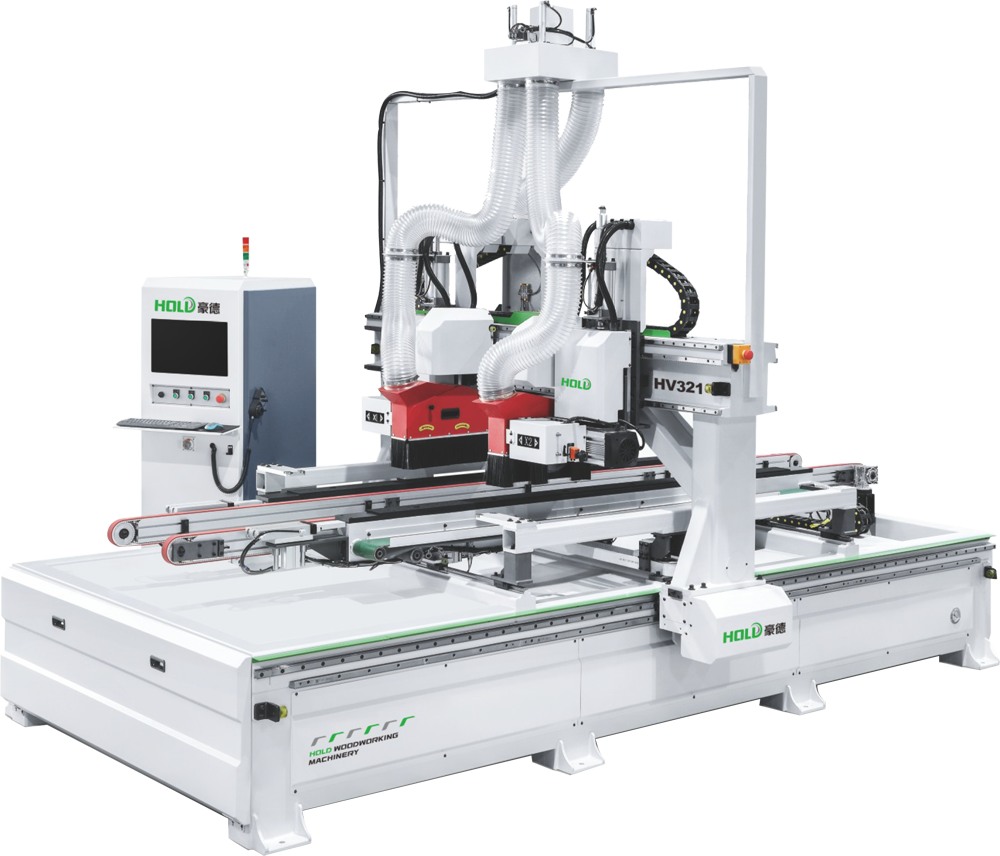

HV321
CNC Door 4 Sided Cutter Machine
HV321 is a space-efficient CNC machine designed for cutting all four sides of wooden doors with high precision and repeatability, making it ideal for workshops that require reliable performance in a compact format.
