*Machine picture shown is reference only
HQ533J
Cabinet Door Edge Banding Machine
Maintenance reminder
Piece counting
Tool change reminder
One click parameter download
CNC lifting press beam
Double row gantry support roller
V-blet feeding
Intelligent control system
Standard Process

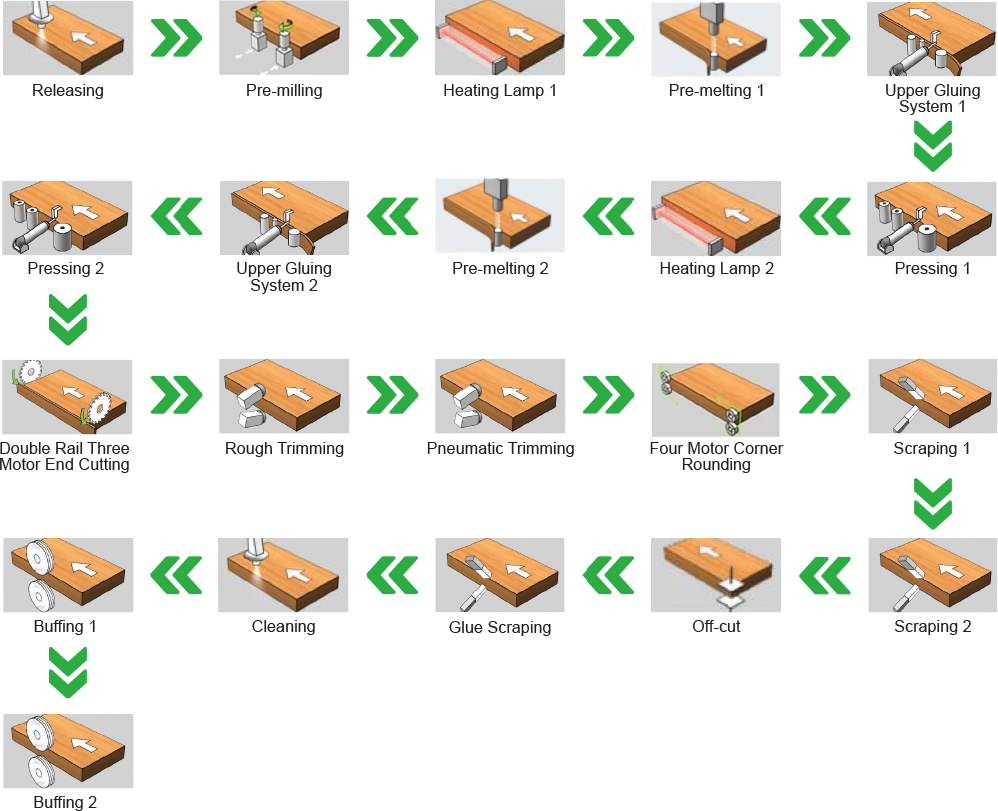

Standard Process of HQ533J
- Releasing
- Pre-milling
- Heating lamp 1
- Pre-melting 1
- Upper gluing system 1
- Pressing 1
- Heating lamp 2
- Pre-melting 2
- Upper gluing system 2
- Pressing 2
- Double rail three motor end cutting
- Rough trimming
- Pneumatic trimming
- Four motor corner rounding
- Scraping 1
- Scraping 2
- Off cut
- Glue scraping
- Cleaning
- Buffing 1
- Buffing 2
Configurtion Instructions (Optional)
Pre-melting + Upper Gluing System (PKQ)
PUR Changeover Pot (B)
Laser Edge Banding Upgrade Solution
Multi Slot Servo Edge Feeder (A)
I Shape PUR Melter (Y)
Cross PUR Melter (Y)
Waxing
Sanding (M)
Visual Inspection System
