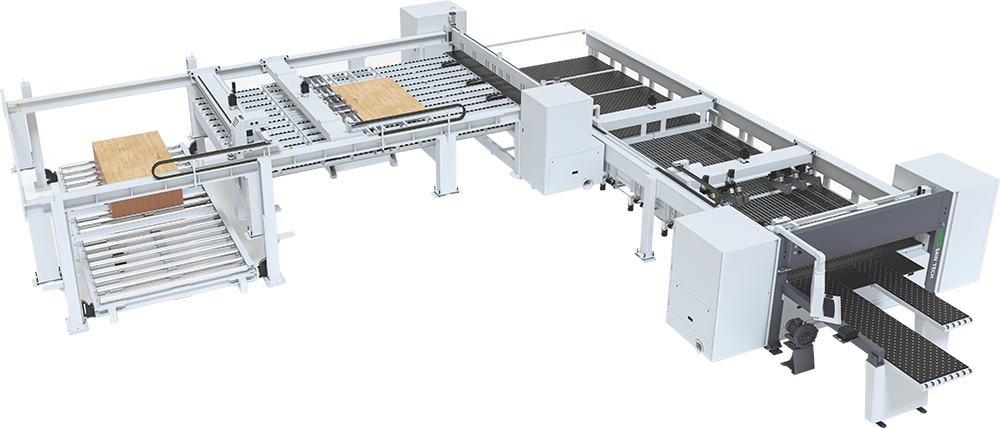

*Machine picture shown is reference only
HP4426
Angular Saw Machine
Diagram Layout
Features
- No manual operation required, automatically adjusts the sawing direction.
- Both large and small saws use independent motor drives, independent lifting mechanisms, and independent belt drives, greatly improving sawing capacity and equipment stability.
- The longitudinal saw realizes 4400mm large plate processing, the transverse saw realizes 2600mm plate processing, and the longitudinal saw and transverse saw can process simultaneously.
Save labor cost and time
High efficiency
Small footprint
Chrome coated steel table
Intelligent thickness and positioning
Four side lifting table
Heavy duty rear feeding
Specification HP4426 Angular Saw
| Model | HP4426 |
|---|---|
| Longitudinal cutting size | 4400 mm |
| Cross cutting size | 2600 mm |
| Cutting thickness | 120 mm |
| Cutting speed | 0 - 80 m/min |
| Main saw motor power | 22 kW x 2 |
| Scoring saw motor power | 2.2 kW x 2 |
| Rotating lifting platform | 1.1 kW (lifting) / 1.8 kW (rotation) |
| Feeding height of lifting table | 1200 mm |
| Height measuring pusher servo moto | 0.4 kW x 2 |
| Auxiliary pusher motor | 1.0 kW |
| Main pusher servo motor | 0.75 kW x 2 |
| Automatic feeding speed | 0 - 80 m/min |
| Worktable height | 950 mm |
| Total power | 78 kW |
