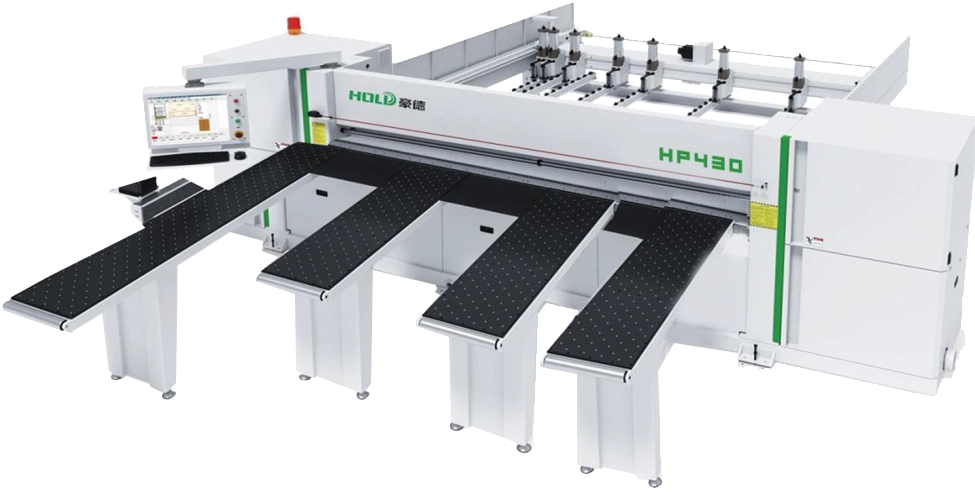

*Machine picture shown is reference only
HP-420
Automatic Running Saw Machine
Intelligent sizing, maximum efficiency and productivity (front feeding)
- Enhanced PC control
- Independent motor for main saw (15 kW)
- Independent motor for grooving saw (2.2 kW)
- Blade carriage is driven by servo, driven by gear and pinion
- Pneumatic side aligner
- Quick replacement of saw blade
- Controlled by industrial computer
- Optimize typesetting software, label printer
- First feeding table length is 2800 mm
- 1800 mm length feeding aligning panel to ensure feeding correctly
- Manual scoring blade adjustment
Standard Configuration

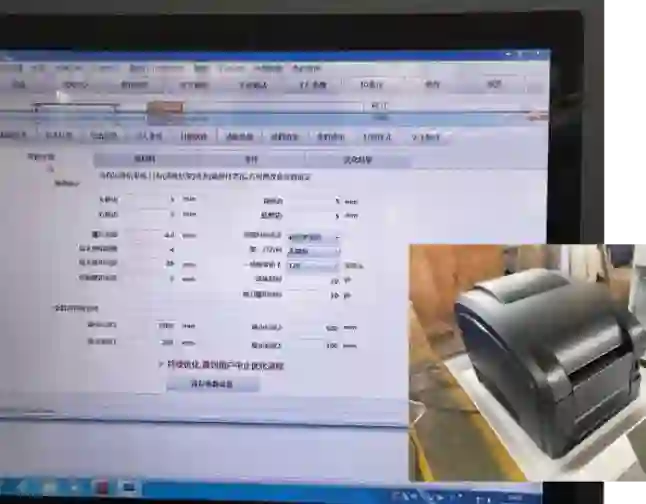

Industrial Computer
Optimal Software+ Label Printer

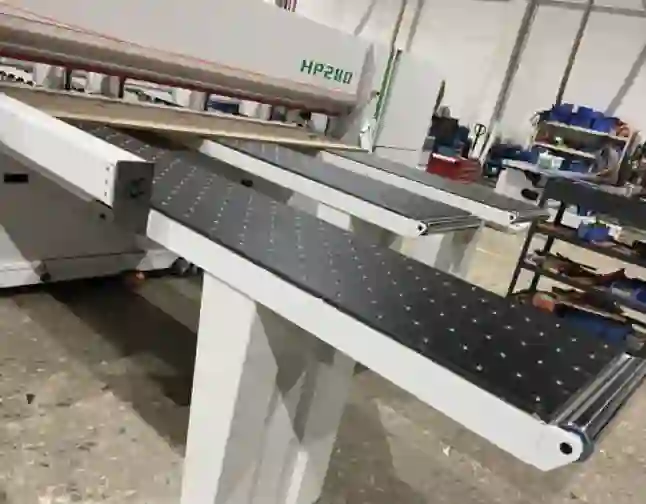

Air Floating Loading Platform

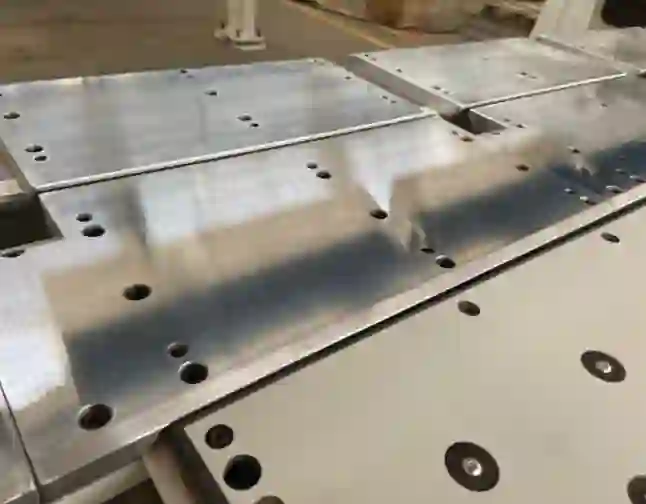

High Quality Chrome Plated Steel Metal Platform
Pneumatic Side Aligner Panel

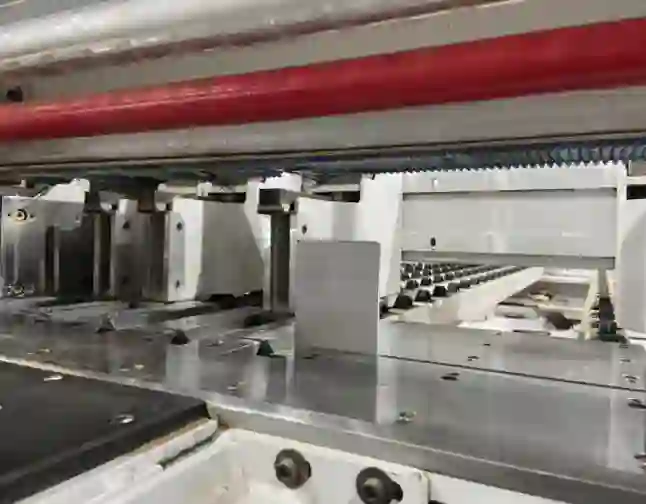

New Saw Carriage Mechanism
Precision Main Saw

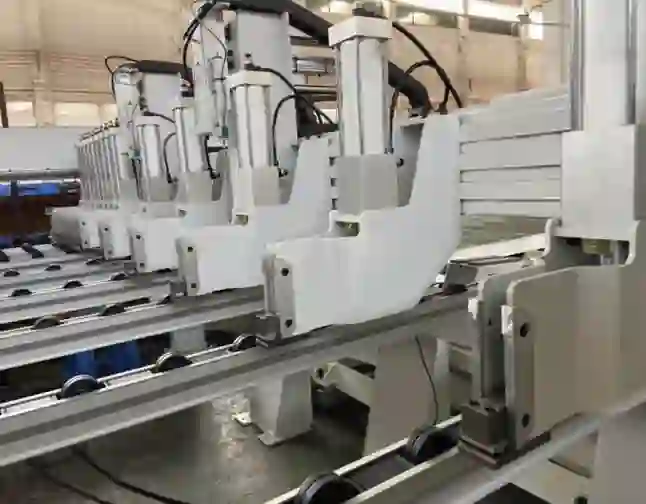

High Precision Clamp

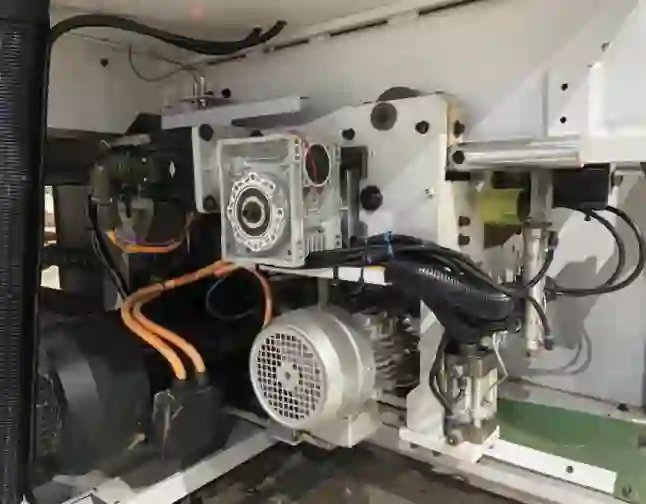

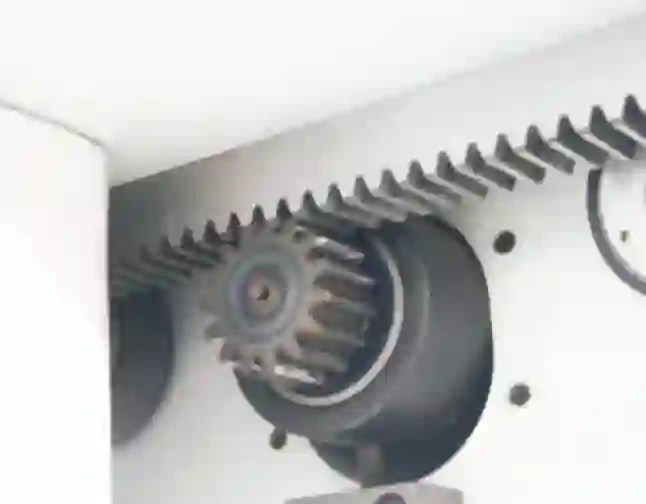

Rack Transmission
Stable Electronic Control System
Specification of HP420
| Model | HP420 |
|---|---|
| Max. cutting length | 4180 mm |
| Max. cutting width | 4180 mm |
| Max. height of saw blade | 90 mm intelligent lifting |
| Main saw blade | 400 x 4.4 x 75 x 72T |
| Groove saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Blade carriage forward speed | 5 - 80 m/min |
| Blade carriage backward speed | 5 - 100 m/min |
| Gripper forward speed | 5 - 80 m/min |
| Gripper backward speed | 5 - 100 m/min |
| Side aligner | Pneumatic side aligner |
| Main saw shaft motor power | 15 kW |
| Motor power of grooving saw shaft | 2.2 kW |
| Saw servo motor | 1.8 kW |
| Feeding servo motor | 1.8 kW |
| Gripper quantity | 12 pcs |
| High pressure fan of air floating platform | 2.2 kW |
| Machine footprint | 8500 x 6600 x 2200 mm |
