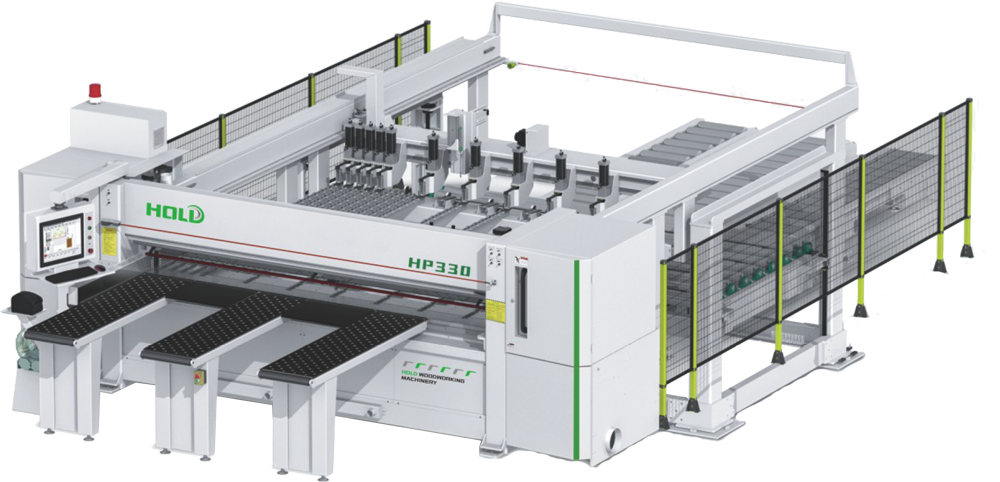

HP-330L
Automatic Running Saw Machine
Dual Pneumatic Ruler
Pneumatic Saw Lock/Unlock Shaft
Chrome Treatment Steel Working Table
Exclusive Developed Control System
Ball Screw Driven Lifting System
Heavy Duty Rear Loading
Intelligent sizing, maximum efficiency and productivity (front feeding)
- Equipped with hydraulic lifter to deliver panel no thinner than 15 mm. Supporting front and rear feeding.
- Enhanced PC control
- Independent motor for main saw (18.5 kW)
- Independent motor for grooving saw (2.2 kW)
- Blade carriage is driven by servo
- Upper side aligner
- Quick replacement of saw blade by pneumatic
- Controlled by industrial computer
- With typesetting software, label printer
- Strong and stable two side horizontal rails
- Rack and pinion driving device, no need lubrication
- High efficient AC servo motor control
- Firm and stable gripper
- Frame: heavy duty, multi annelaing treatment. Long service life without deformation
- Press Beam:
High strength press beam: high strength, press tightly to ensure cutting stability.
Two end rack and pinion synchro press beam, it can press panels evenly.
The open area of the press beam is small. The dust collection is optimal - Blade carriage
High strength, press panel tightly to ensure cutting stability
Rack and pinion driving device: no need lubrication
Manual scoring blade adjustment
Standard Configuration

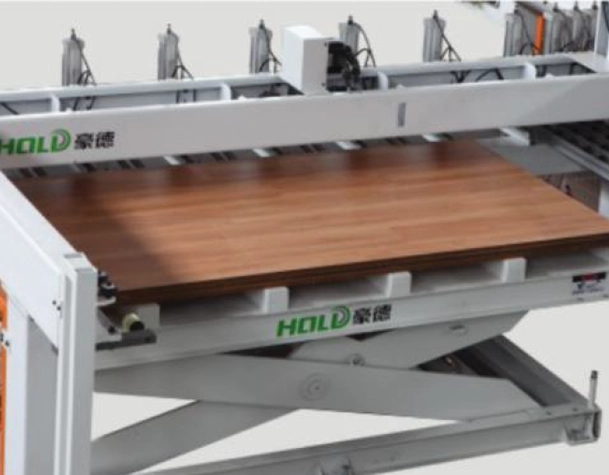

Hydraulic Lifter

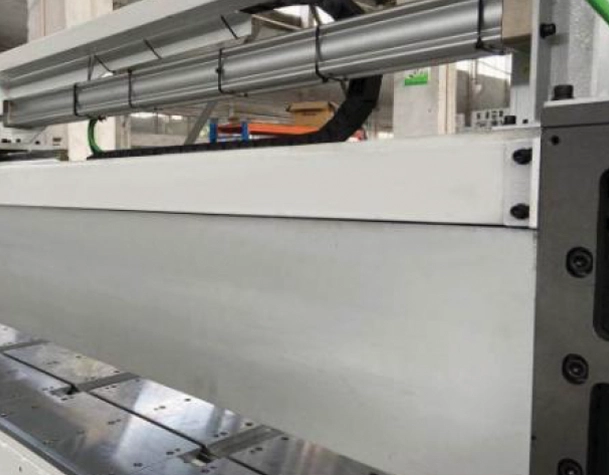

High Strength Press Beam

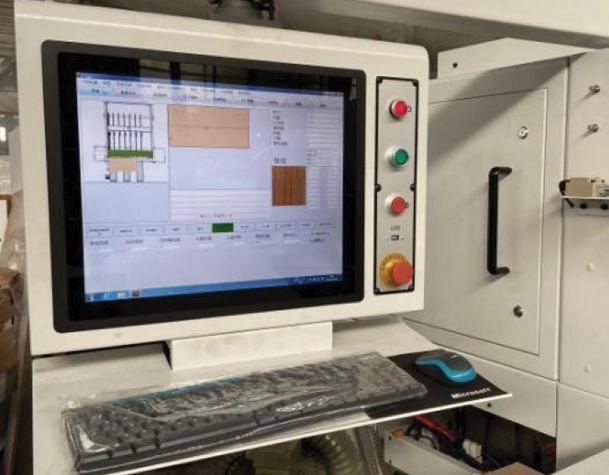

Industrial Computer
Optimal Software + Label Printer

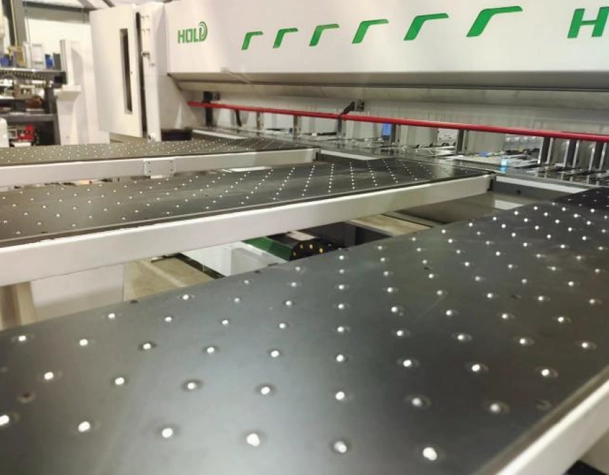

Air Floating Loading Platform

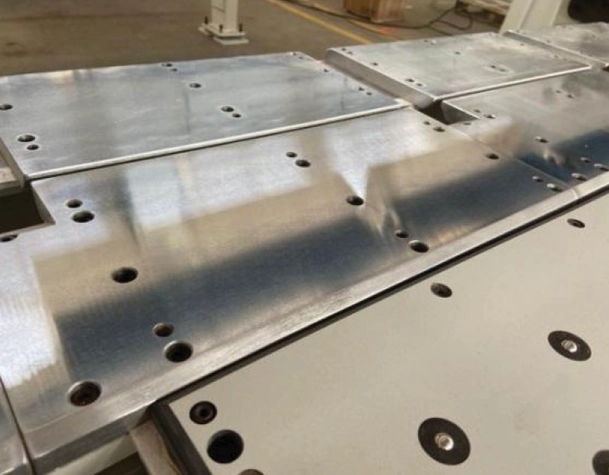

High Quality Chrome Plated Steel Metal Platform

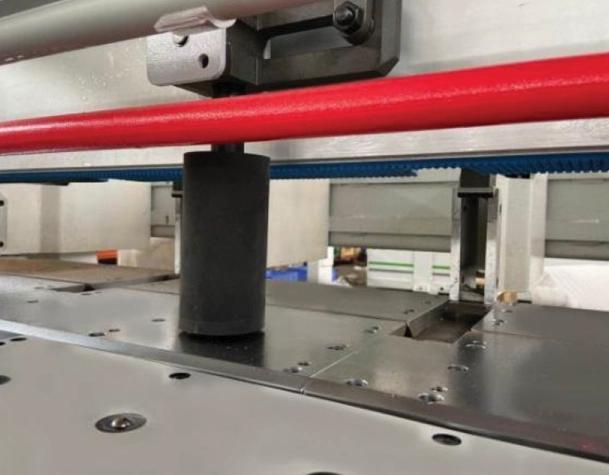

Side Aligner
High Strength Saw Carriage

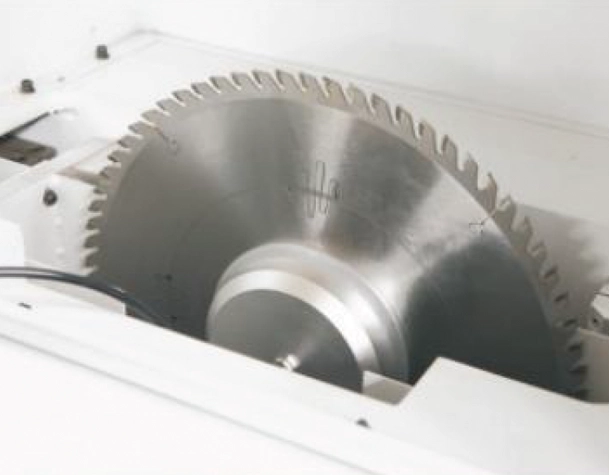

Precision Main Saw

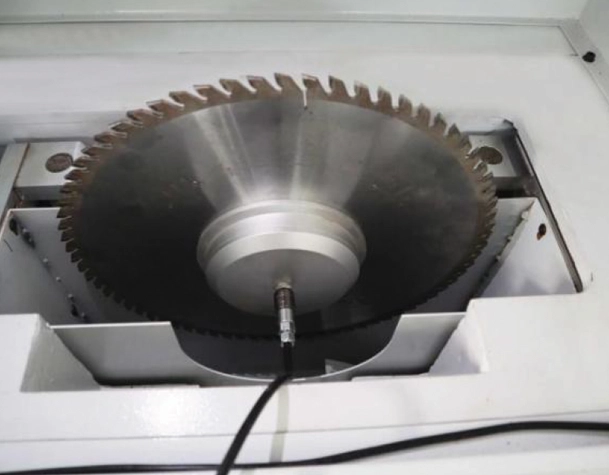

Quick Replacement of Main Saw Blade

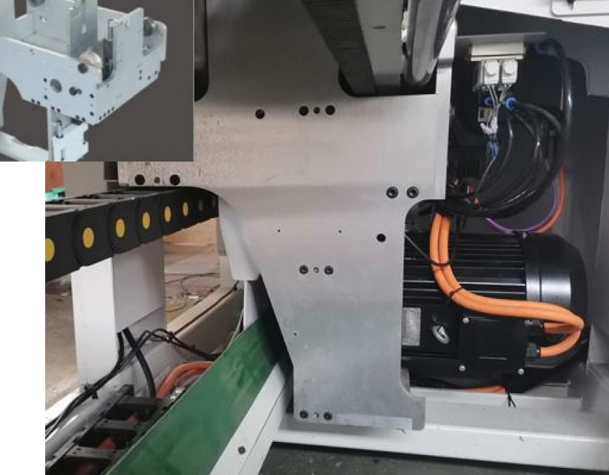

Saw Carriage Servo Motor

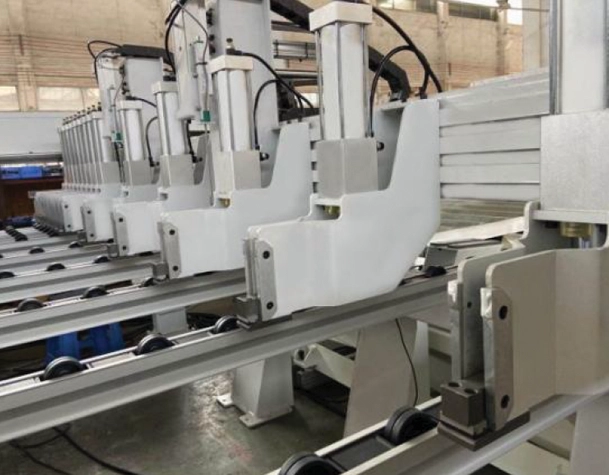

High Precision Clamp

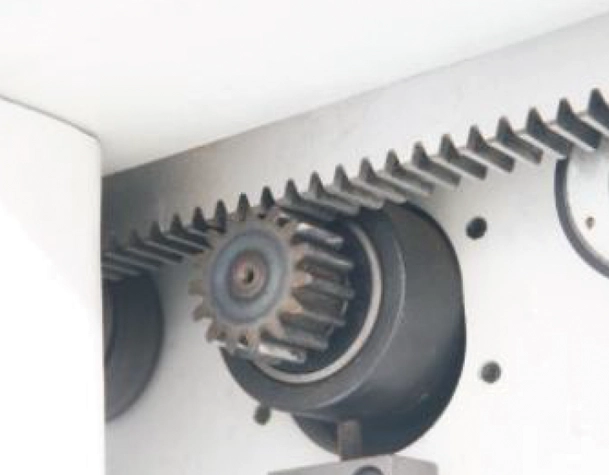

Rack Transmission

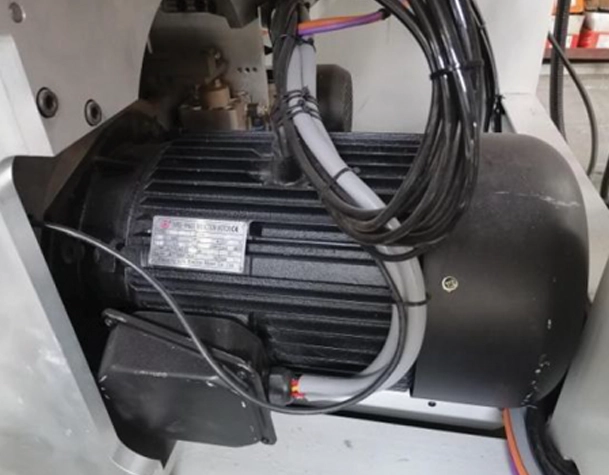

Main Saw Motor

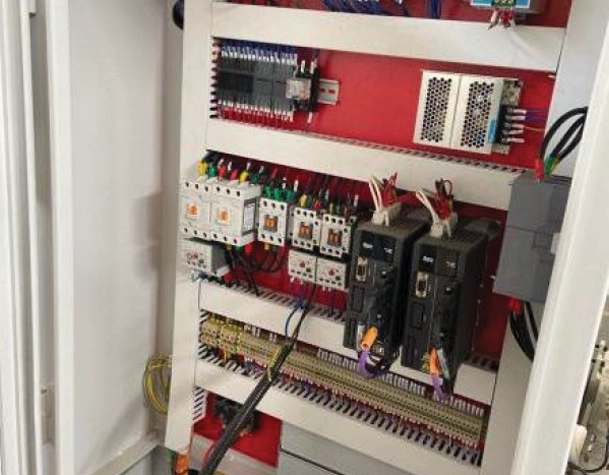

Stable Electronic Control System
Specification of HP330L
| Model | HP330L |
|---|---|
| Max. cutting length | 3250 mm |
| Max. cutting width | 3300 mm |
| Max. height of saw blade | 120 mm intelligent lifting |
| Main saw blade | 450 x 4.4 / 3.2 x 75 x 72T/105 |
| Groove saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Blade carriage forward speed | 5 - 100 m/min |
| Blade carriage backward speed | 0 - 100 m/min |
| Gripper forward speed | 0 - 100 m/min |
| Gripper backward speed | 0 - 100 m/min |
| Side aligner | Pneumatic double side pressing wheel |
| Main saw shaft motor power | 18.5 kW |
| Motor power of grooving saw shaft | 2.2 kW |
| Saw servo motor | 1.8 kW |
| Feeding servo motor | 1.8 kW |
| Gripper quantity | 10 pcs |
| High pressure fan of air floating platform | 2.2 kW |
| Rear feeding table size | 3050 x 1220 x 1200 mm |
| Weight | About 6000 kg |
| Min. panel size | 30 x 30 mm |
| Total power | 30 kW |
| Machine overall | 8250 x 5400 x 2200 mm |
