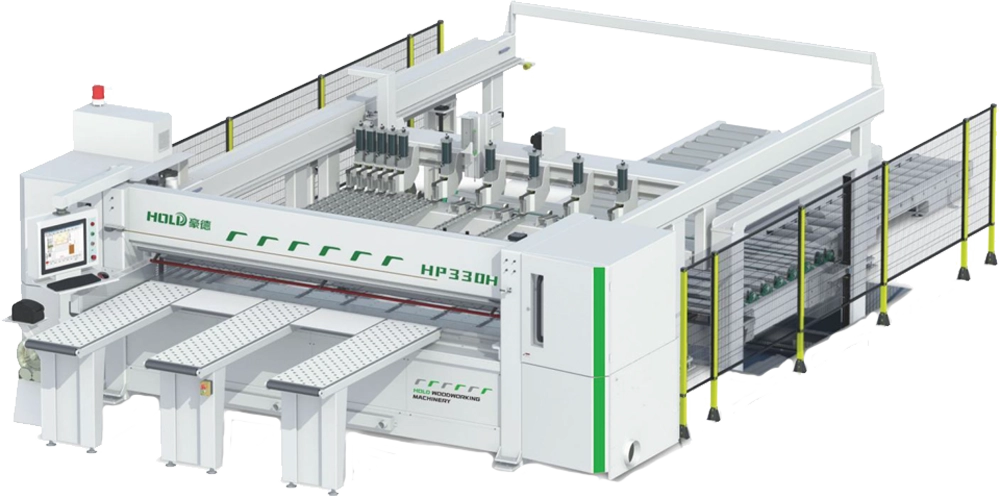

*Machine picture shown is reference only
HP-330HV
Automatic Running Saw Machine
Intelligent sizing, maximum efficiency and productivity (front feeding)
- Steel strip drive lifter. It can convey panels > ≥ 12 mm. Supporting loading from front, rear and side. Side loading needs footprint around 7 * 8 m.
- Rear loading platform equips with powered roller. The transit powered roller realizes one pile of panel standby on roller and one pile standby on lifter. It improves efficiency greatly.
- Enhanced PC control
- Independent motor for main saw (22 kW)
- Independent motor for grooving saw (2.2 kW)
- Blade carriage is driven by servo
- Upper side aligner
- Quick pneumatic replacement of saw blade
- Controlled by industrial computer
- Optimize typesetting software, label printer
- Durable double sides horizontal rail
- Rack and pinion driving device, no need lubrication
- High efficient AC servo motor control
- Firm and stable gripper
- Frame: heavy duty, multi annealing treatment. Long service life without deformation
- Press Beam:
Heavy-duty press beam: high strength, press panel tightly to ensure cutting stability.
Two end rack and pinion synchro press beam, it can press panels evenly
The open area of the press beam is small. The dust collection is optimal. - Blade carriage:
Heavy-duty structure
Rack and pinion driving device: no need lubrication
Manual scoring blade adjustment
Standard Configuration
Standby Roller (V). Steel String Drive Lifter

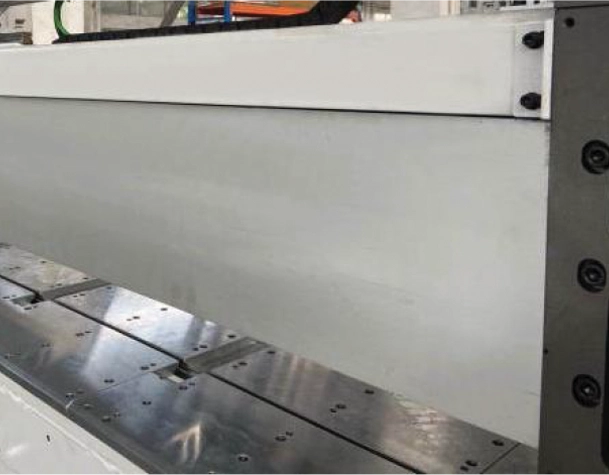

Heavy Duty Press Beam

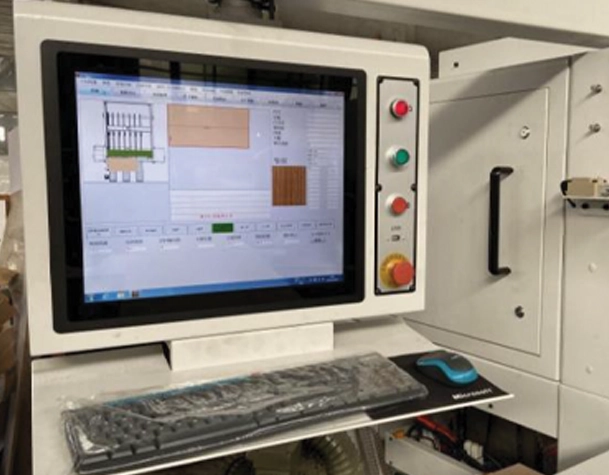

Industrial Computer

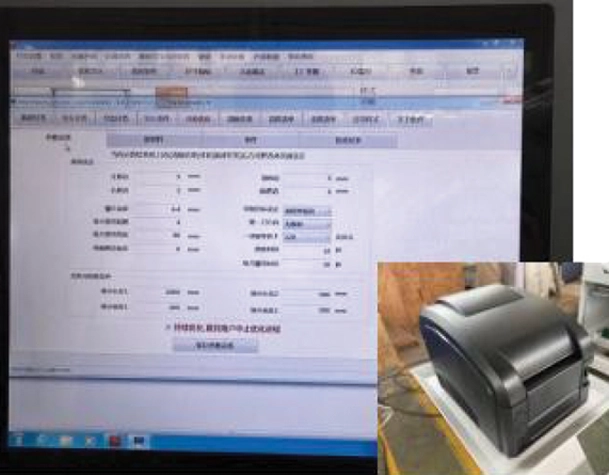

Optimal Software + Label Printer

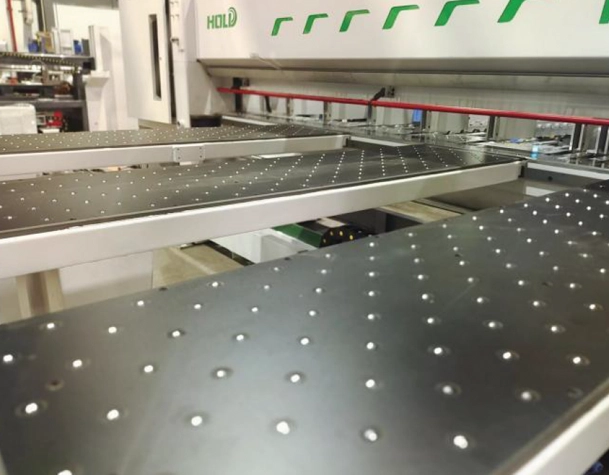

Air Floating Loading Platform

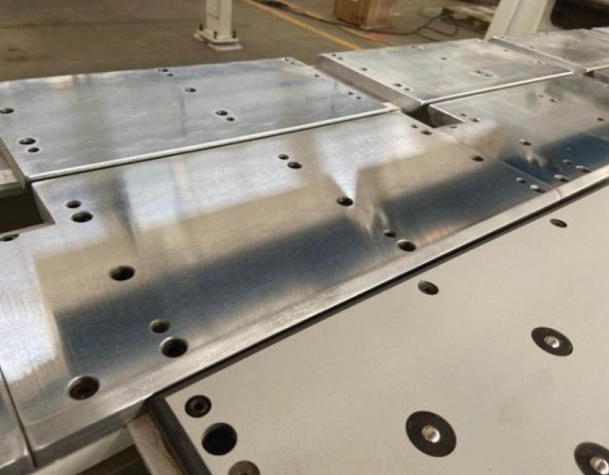

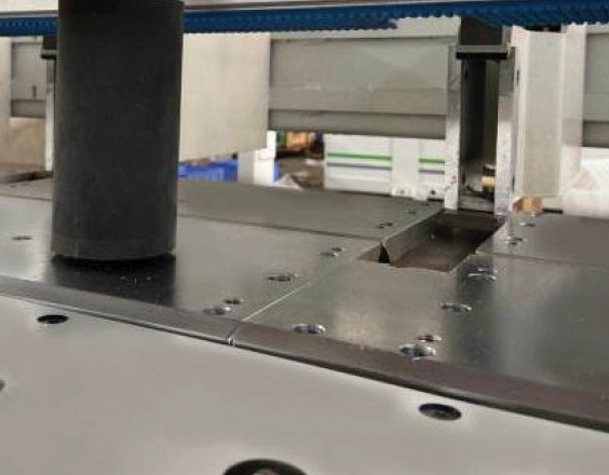

High Quality Chrome Plated Steel Metal Platform
Upper Side Aligner

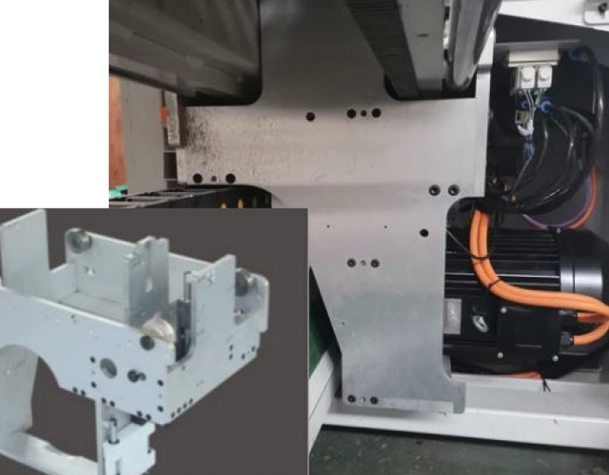

Imported High Tensile Aluminum Alloy Saw Carriage

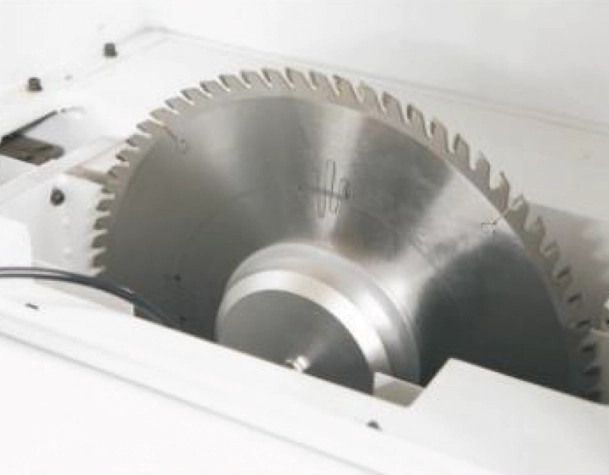

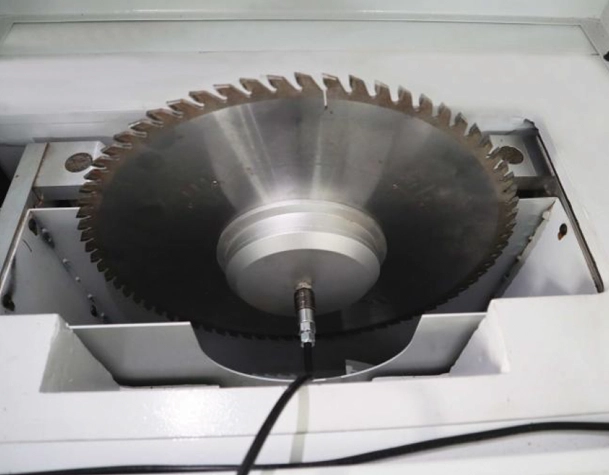

Precision Main Saw
Quick Replacement of Main Saw Blade

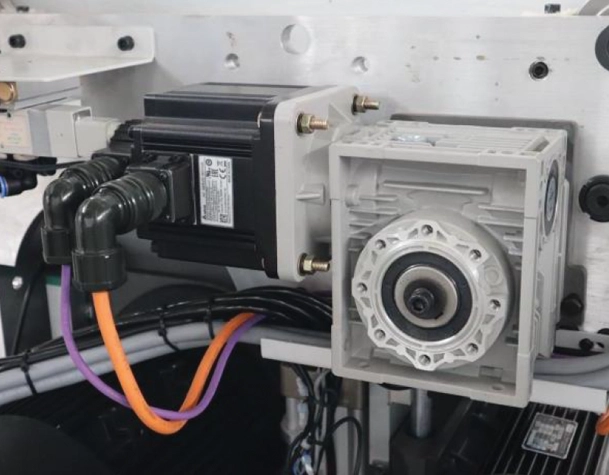

Saw Carriage Servo Motor

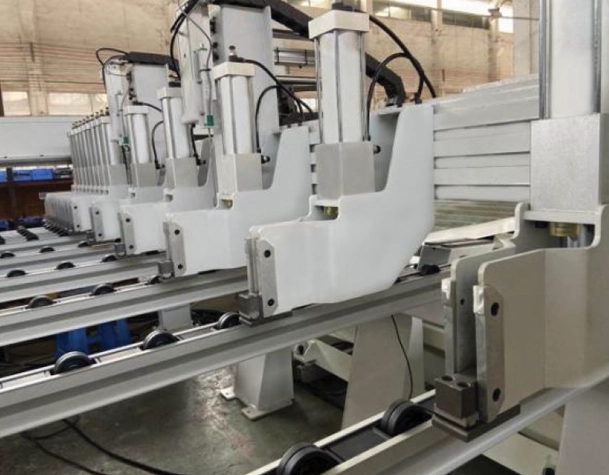

High Precision Clamp

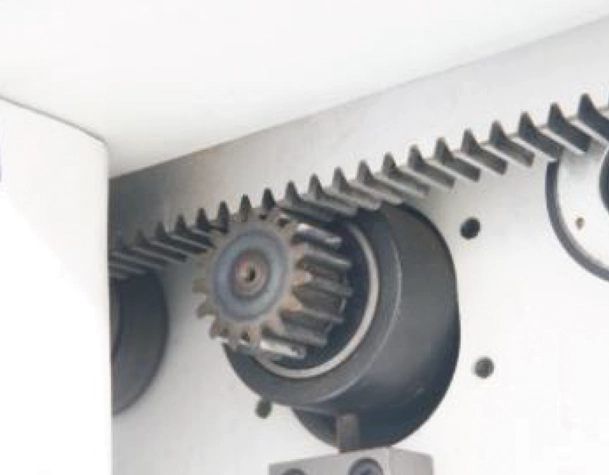

Rack Transmission

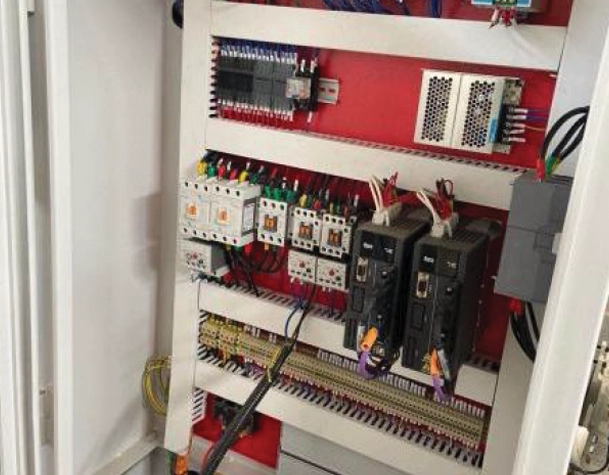

Stable Electronic Control System
Specification of HP330HV
| Model | HP330HV |
|---|---|
| Max. cutting length | 3180 mm |
| Max. cutting width | 3300 mm |
| Rear feeding panel size | 2900 x 1830 x 1200 mm (digging for lifter) 2900 x 1830 x 550 mm (optional no digging) |
| Max. height of saw blade | 100 mm intelligent lifting (optinal 120 mm) |
| Main saw blade | 400 x 4.4 x 75 x 72T |
| Groove saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Blade carriage forward speed | 5 - 100 m/min |
| Blade carriage backward speed | 0 - 100 m/min |
| Gripper forward speed | 0 - 100 m/min |
| Gripper backward speed | 0 - 100 m/min |
| Side aligner | Upper side aligner |
| Main saw shaft motor power | 22 kW |
| Motor power of grooving saw shatft | 2.2 kW |
| Saw servo motor | 1.8 kW |
| Feeding servo motor | 1.8 kW |
| Gripper quantity | 10 pcs |
| High pressure fan of air floating platform | 2.2 kW |
| Machine footprint | 10400 x 5400 x 2200 mm |
