HP-330HBV

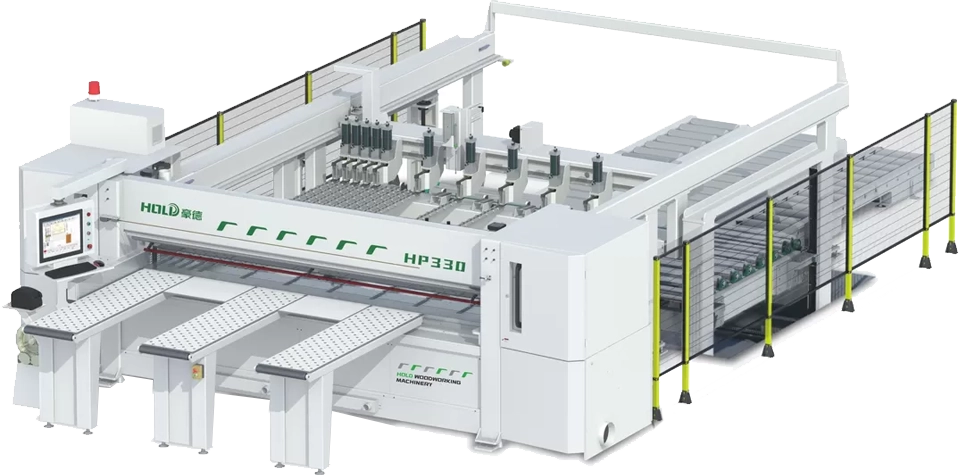

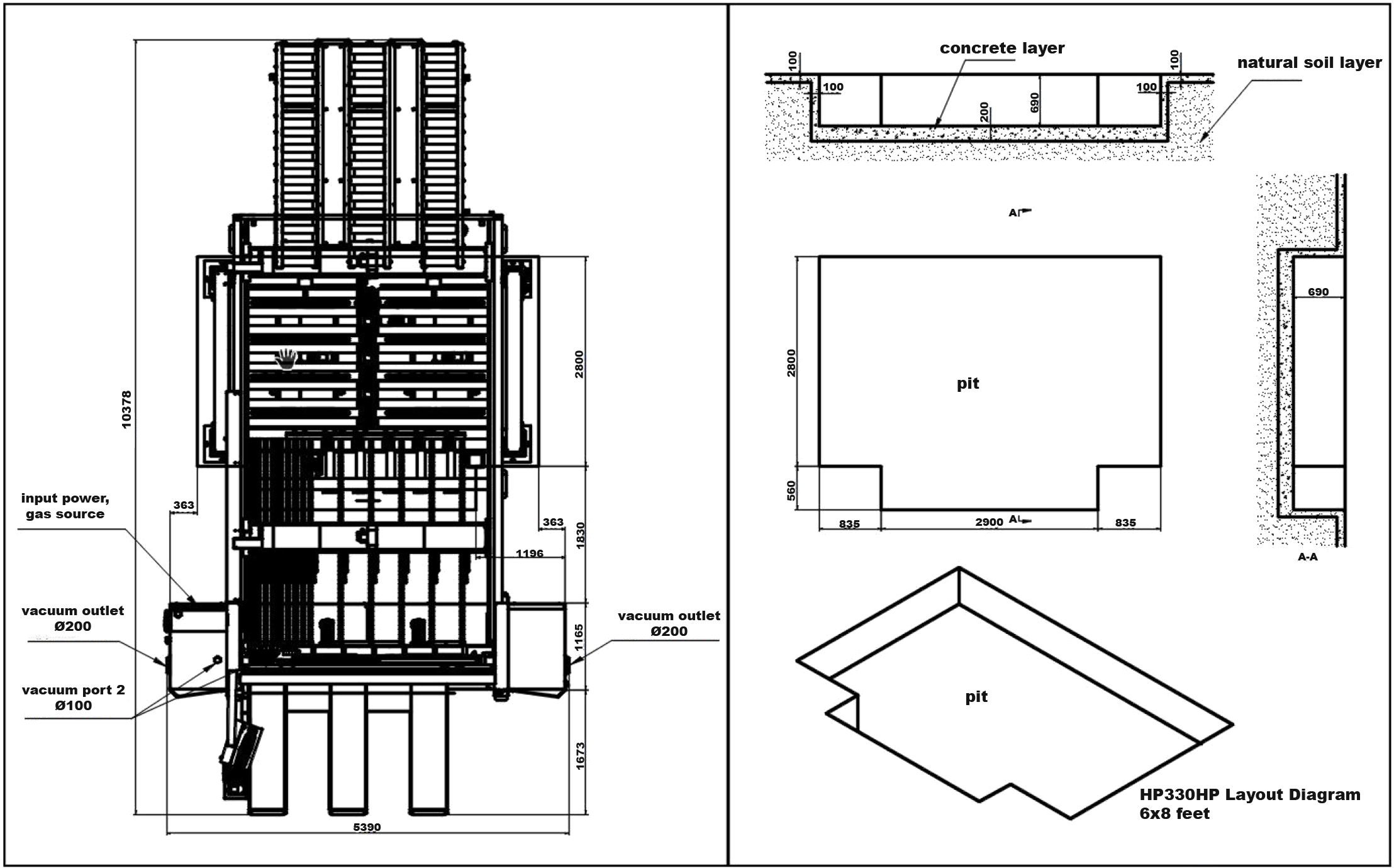

Automatic Panel Saw Machine
Intelligent sizing, maximum efficiency and productivity (front feeding)
- Steel stripe drive lifter. It can convey panels ≥ 12 mm. Supporting loading from front, rear and side. Loading from side footprint is 7 x 8 M
- Rear loading platform equips with powered roller. The transit powered roller realizes one pile of panel standby on roller and one pile standby on lifter. (Optional) it improves efficiency greatly.
- Enhanced PC control
- Independent motor for main saw (22 kW)
- Independent motor for grooving saw (2.2 kW)
- Blade carriage is driven by servo
- Upper side aligner
- Quick pneumatic replacement of saw blade
- Controlled by industrial computer
- Optimize typesetting software (k), label printer
- Durable double sides horizontal rail
- Rack and pinion driving device, no need lubrication
- High efficient AC servo motor control

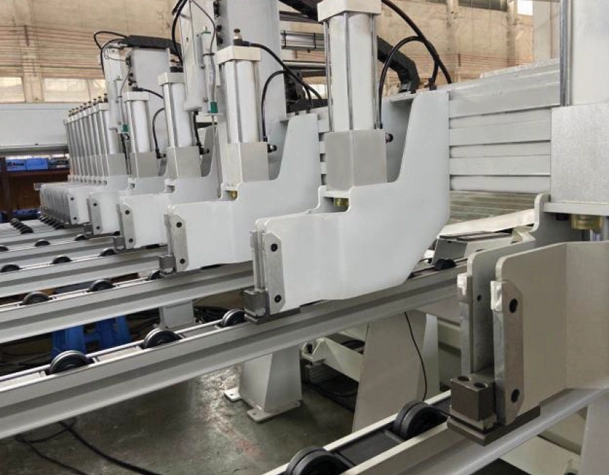

- Firm and stable gripper
- Frame: heavy duty, multi annelaing treatment. Long service life without deformation
- Press Beam:
Heavy-duty press beam: high strength, press panel tightly to ensure cutting stability
Two end rack pinion synchro press beam, it can press panels evenly
The open area of the press beam is small. The dust collection is optimal - Blade carriage:
Heavy-duty structure
Rack and pinion driving device: no need lubrication
Manual scoring blade adjustment
Standard Configuration

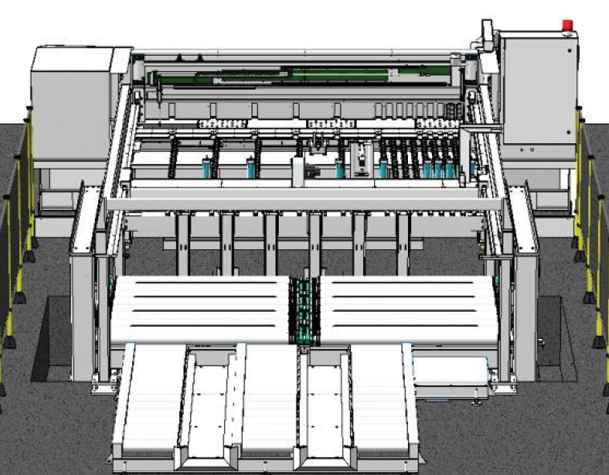

Standby Roller “V” Steel String Drive Lifter
One Pusher for Machining and One Pusher for Rear Uploading

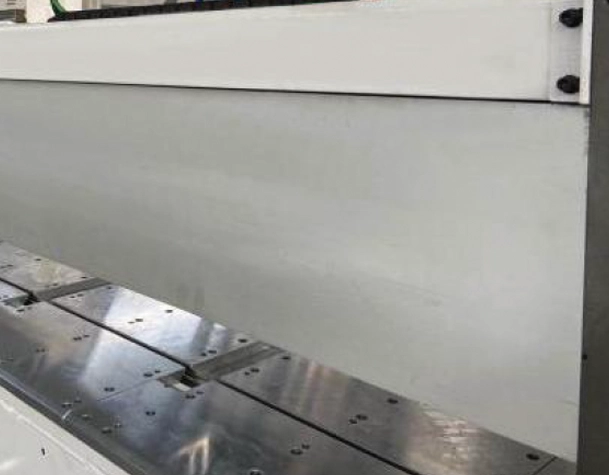

Heavy Duty Press Beam

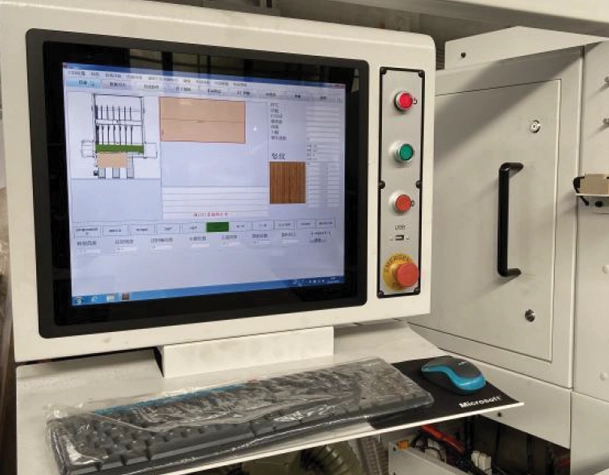

Industrial Computer

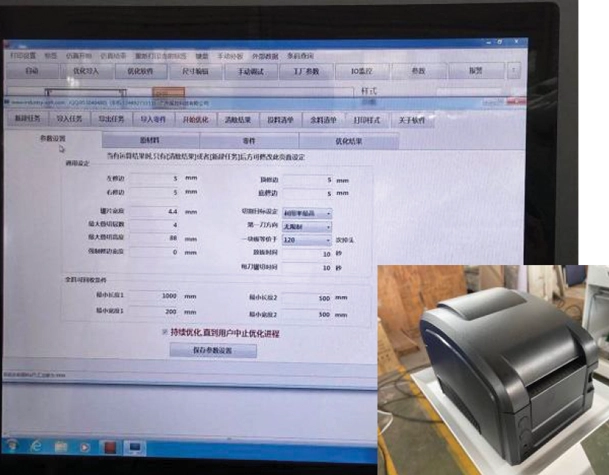

Optimal Software (k)+ Label Printer
Air Floating Loading Platform

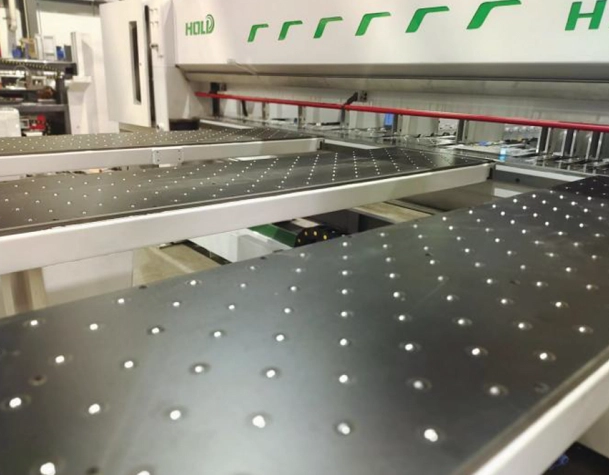

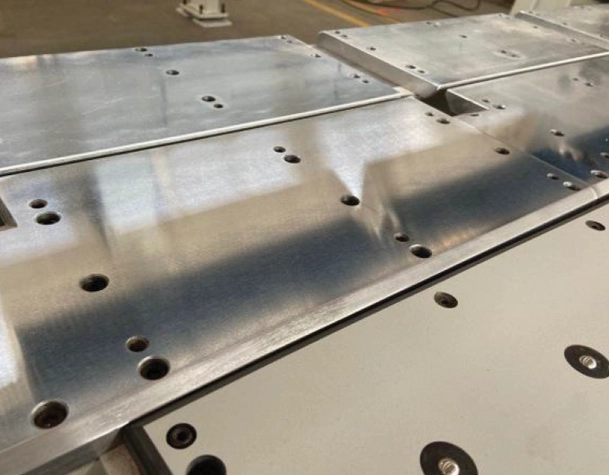

High Quality Chrome Plate Steel Metal Platform

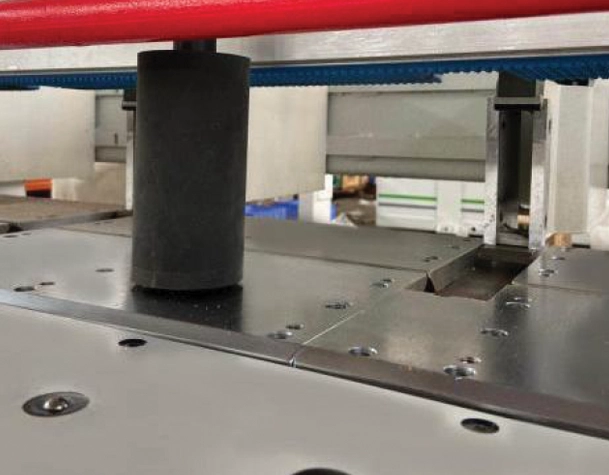

Upper Side Aligner
Imported High Tensile Aluminum Alloy Saw Carriage

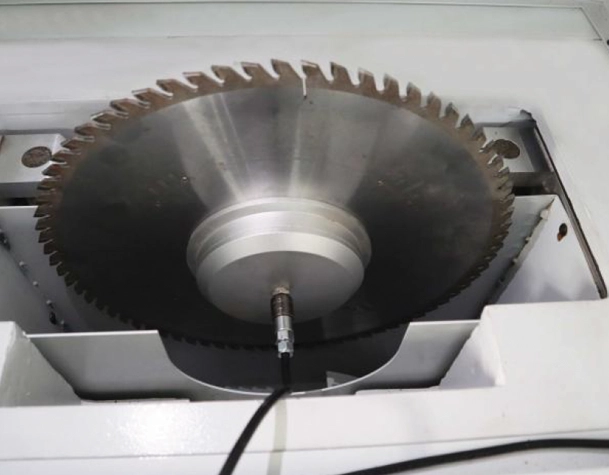

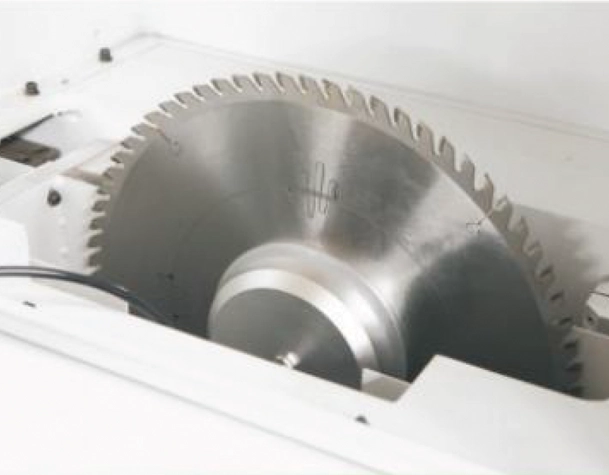

Precision Main Saw
Quick Replacement of Saw Blade

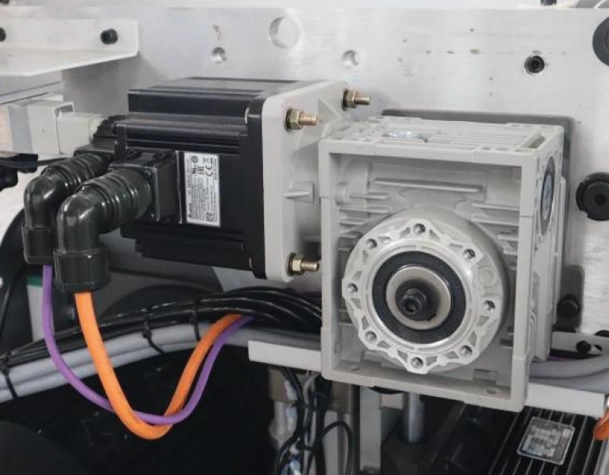

Saw Carriage Servo Motor

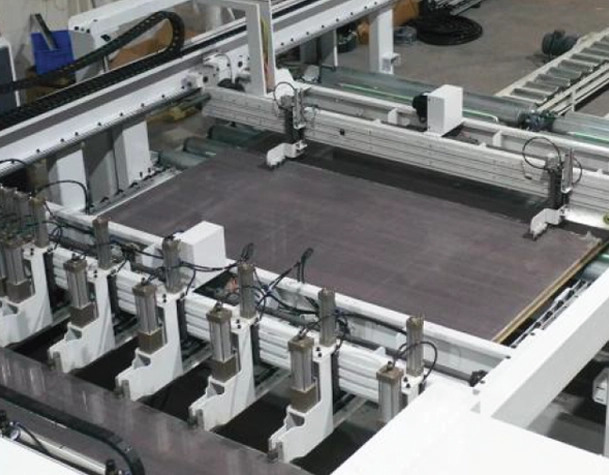

High Precision Clamp

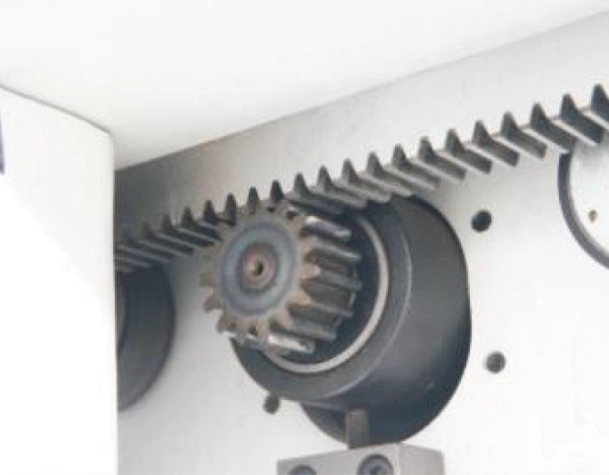

Rack Transmission

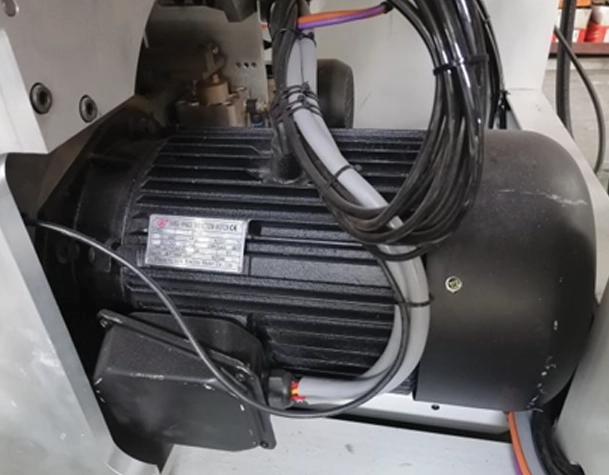

Main Saw Motor

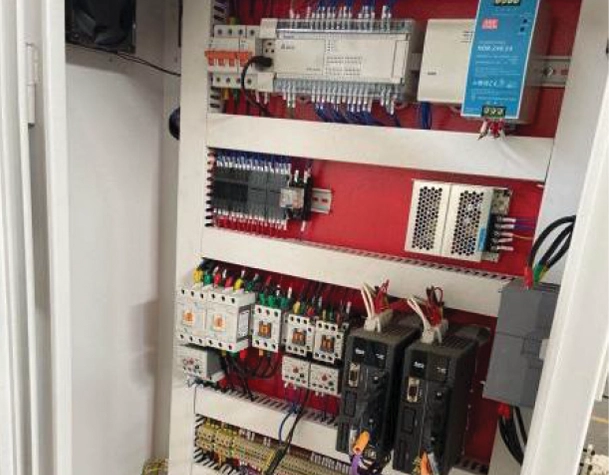

Stable Electronic Control System
Specification of HP330HBV
| Model | HP330HBV |
|---|---|
| Max. cutting length | 3180 mm |
| Max. cutting width | 3300 mm |
| Max. height of saw blade | 100 mm (120) intelligent lifting |
| Main saw blade | 400 x 4.4 x 75 x 72T |
| Groove saw blade | 160 x 4.3 / 3.2 x 45 x 24T |
| Blade carriage forward speed | 5 - 100 m/min |
| Blade carriage backward speed | 0 - 100 m/min |
| Gripper forward speed | 0 - 100 m/min |
| Gripper backward speed | 0 - 100 m/min |
| Side aligner | Upper side pressing wheel |
| Main saw shaft motor power | 22 kW |
| Motor power of grooving saw shaft | 2.2 kW |
| Saw servo motor | 1.5 kW |
| Feeding servo motor | 1.5 kW |
| Gripper quantity | 10 pcs |
| High pressure fan of air floating platform | 2.2 kW |
| Machine footprint | 10400 x 5400 x 1910 mm |
| Weight | About 11000 kg |
| Min. panel size | 70 x 70 mm |
| Total power | 38 kW |
